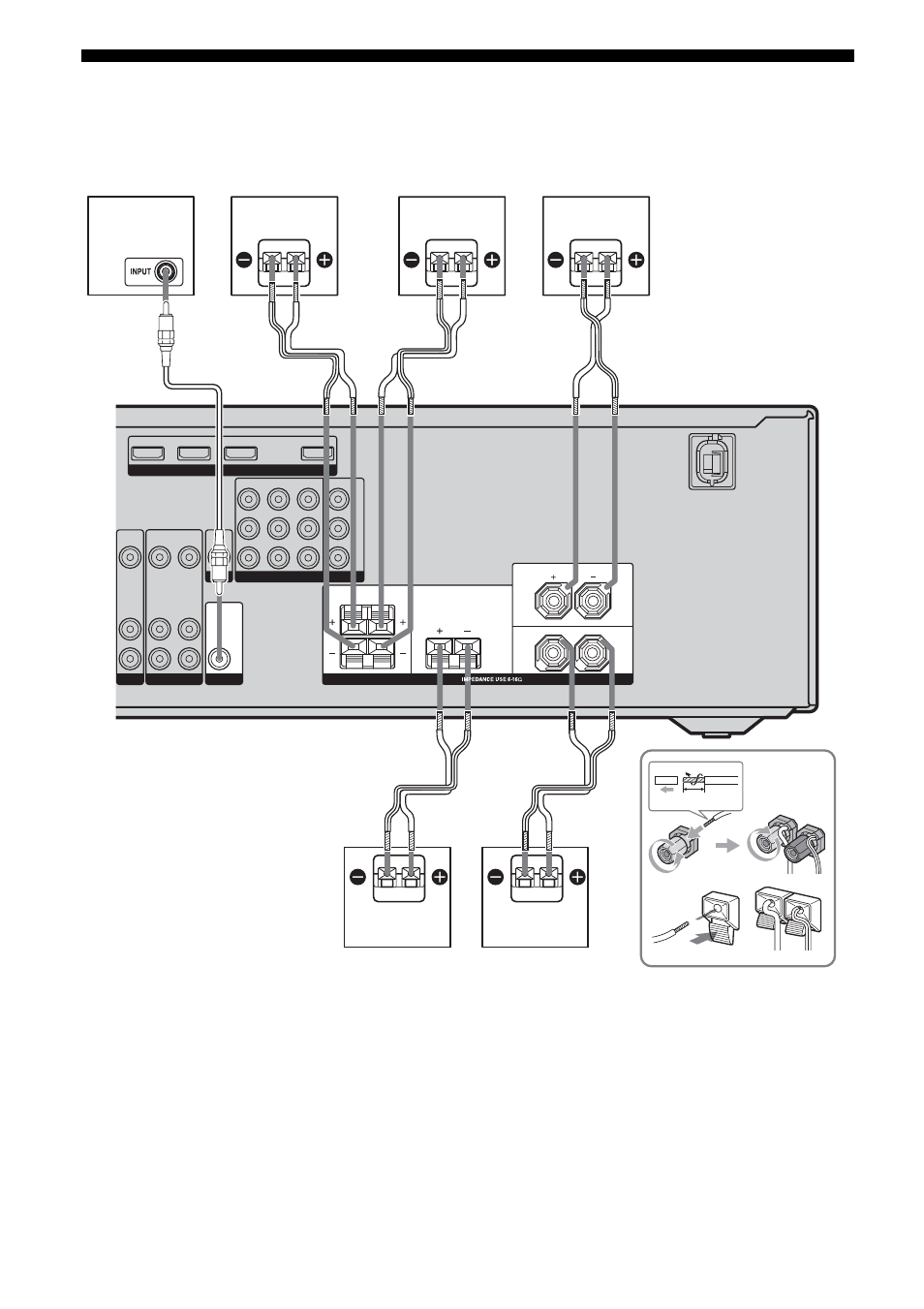

2: Connecting the speakers
Before connecting the cords, be sure to
disconnect the AC power cord.
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSub woofer a)
Use the long speaker cords to connect the surround
speakers and the short speaker cords to connect the
front and center speakers.
HDMI
SAT IN DVD IN BD IN OUT
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
SAT IN DVD IN VIDEO 1 IN
VIDEO 1 SUB WOOFER
AUDIO
OUT
SURROUND
L R
L
R
10 mm
AUDIO
OUT
Y
P B /
C B
P R /
C R
COMPONENT VIDEO
MONITOR OUT
CENTER
FRONT
SPEAKERS
F E D A
A B
B
B C
A Monaural audio cord (supplied)
B Speaker cords (supplied)
a)
