20 GB
4b: Connecting the video components
This section describes how to hook up your
components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect
each component.
After hooking up all your components,
proceed to “5: Connecting the antennas” (page
26).
Component to be connected
If you want to connect several
digital components, but cannot
find an unused input
See “Listening to digital sound from other
inputs (DIGITAL ASSIGN)” (page 63).

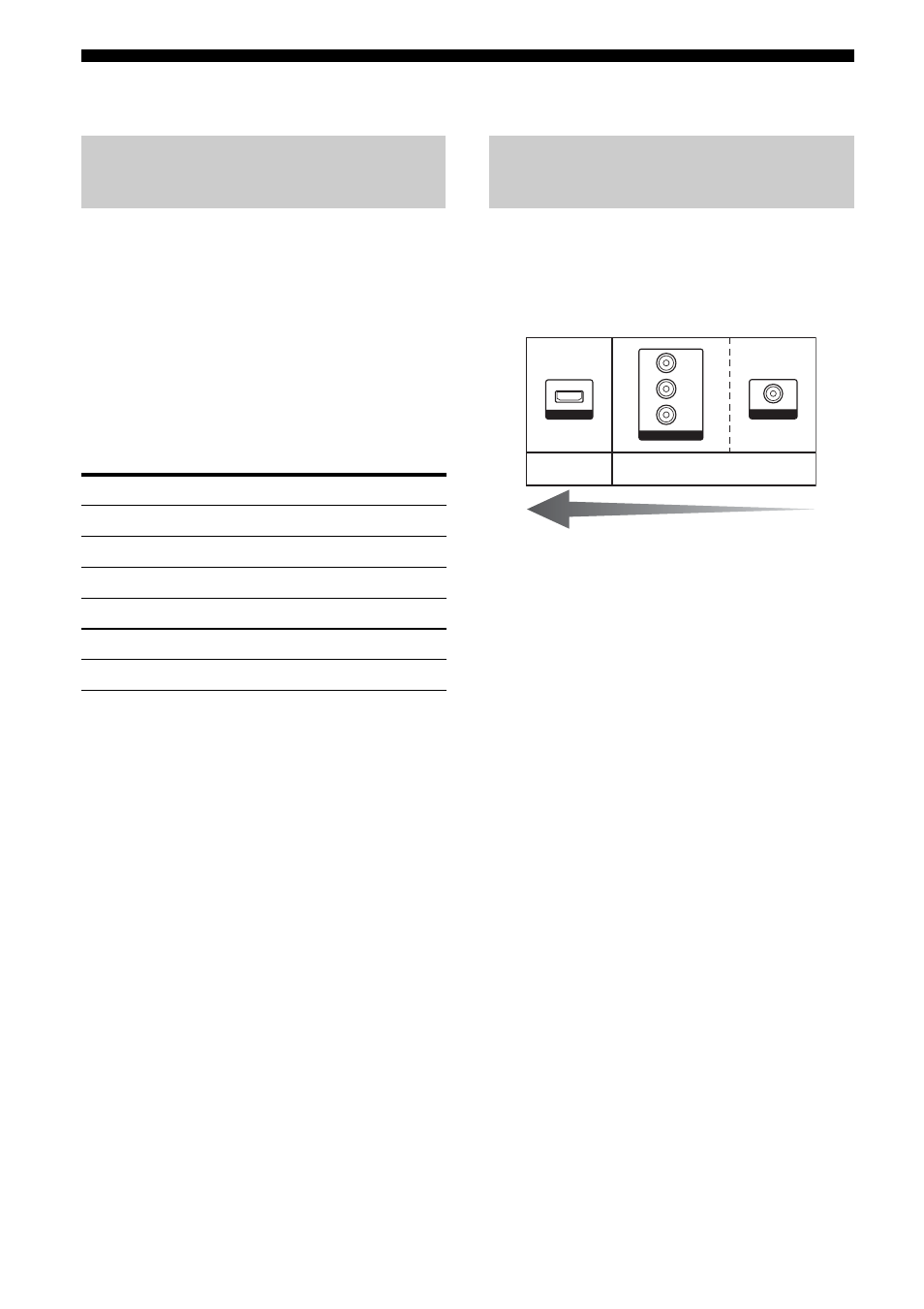

The image quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks on
your components.
Notes
• Before connecting cords, be sure to disconnect the
AC power cord.
• Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
How to hook up your
components
Component Page
TV 18
With HDMI jack 21
DVD player 23
Satellite tuner/Set-top box 24
VCR, DVD recorder 25
Camcorder, video game, etc. 25
Video input/output jack to be
connected
HDMI VIDEO
COMPONENT VIDEO
Y
P B /
C B
P R /
C R
Digital Analog
High quality image
