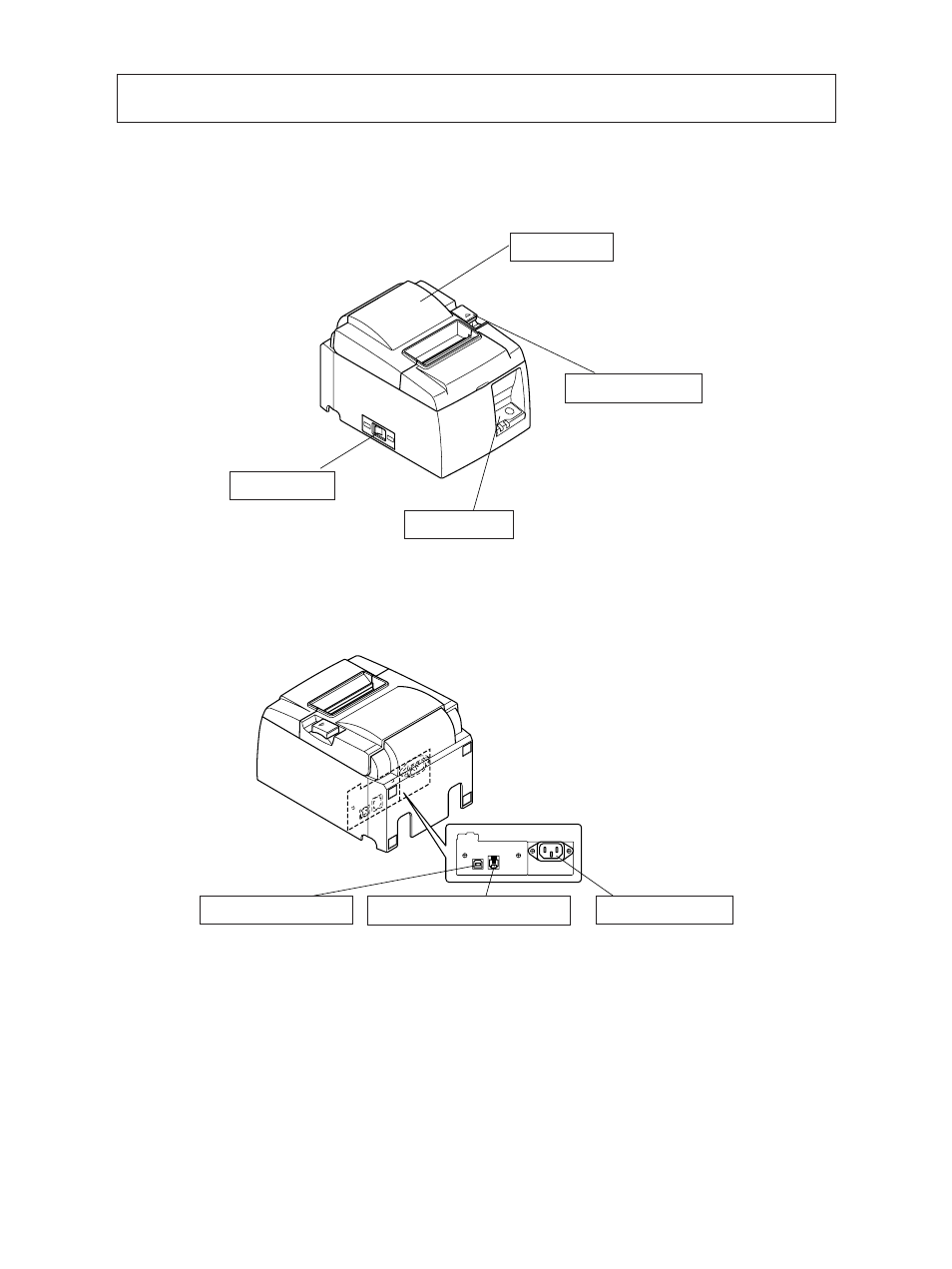

2. Parts Identification and Nomenclature

Cover open lever

Pull this lever in the
direction of the
arrow to open the
printer cover.

Control panel

Features LED indica-
tors to indicate printer
status and switches to
operate the printer.

Power switch

Used to turn on/off
power to the printer.

Power connector

For connection of
the power cord.

Peripheral drive connector

Connects to peripheral
units such as cash
drawers, etc.
Do not connect this to a
telephone.

Interface connector

For connection to a
host computer.

Printer cover

Open this cover to load or
replace paper.

Auto Cutter Model
