EZ Manual: XL4xxe 9
Barcode SATO International Pte Ltd

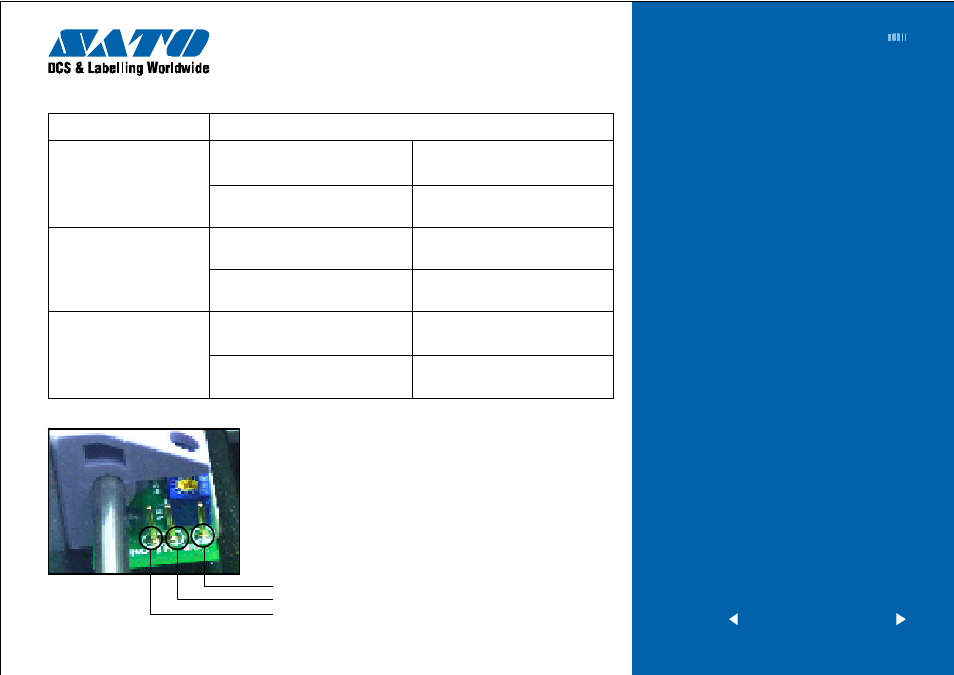

Cutter Sensor
Adjustment
continued
Cut sensor type Sensor Level Voltage
High level (Position a TAG in the : More than (+) 6.0Volts to less than
sensor’s field of view.) (+) 7.0Volts
Center Hole
Low level (Position a Center Hole : Less than (+) 0.5Volts
in the sensor’s field of view.)
High level (Position a I-Mark in the : More than (+) 6.0Volts to less than
sensor’s field of view.) (+) 7.0 volts
I-Mark
Low level (Position a NON I-Mark : Less than (+) 0.5Volts
in the sensor’s field of view.)
High level (Position a TAG in the : More than (+) 6.0Volts to less than
sensor’s field of view.) (+) 7.0Volts
R-Corner
Low level (Position a R-Corner in the : Less than (+) 0.5Volts
sensor’s field of view.)
GND
I-Mark
Center-Hole
