6
3. Quick Installation Guide

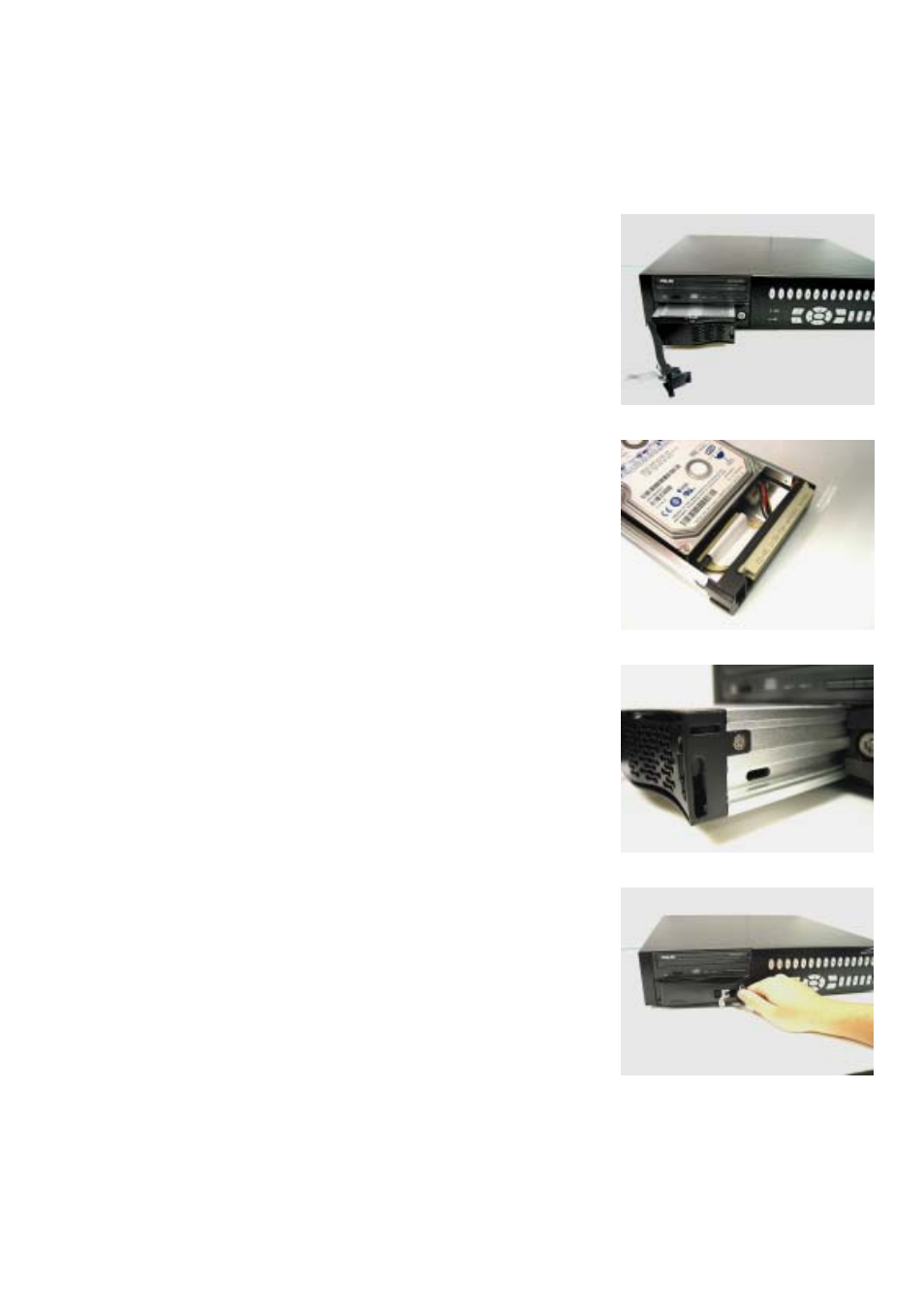

The DVR-16/IP is equipped with a mobile rack, the HDD is hot-swappable. You can exchange
the HDD when the HDD is full. The following figures illustrate how to install HDD into the
removable cartridge.
Step1: Pull the active-handle outwards and unlock with the
miniature key provided (Figure 1).
Step2:
Pull the handle outwards till the carrier body is out of the
cartridge (Figure 1).
Step3: Push the release latch to slide the top cover backwards
and remove it (Figure 1).
Step4:
Insert the DC power cable and IDE cable on the HDD.
Make sure the HDD is set to “Master” (Figure 2).
Step5:
Position the HDD into carrier body and slide the top
cover back to secure. Secure the HDD using the screws
provided (Figure 3).
Step6: Slide the carrier body back in the cartridge frame and
lock it with the key provided. Then push the active-handle
inwards (Figure 4).
