Speco Technologies DVR-16/IP User Manual
Page 45
44
MPX NO
MPX ID
Camera ID
Remark
1
E0H, 224
01H – 10H, 1~16
Channel 1~16 of MPX #1
2
E1H, 225
11H – 20H, 17~32
3
E2H, 226
21H – 30H, 33~48
4
E3H, 227
31H – 40H, 49~64
5
E4H, 228
41H – 50H, 65~80
6
E5H, 229
51H – 60H, 81~96
7
E6H, 230
61H – 70H, 97~112
8
E7H, 231
71H – 80H, 113~128
9
E8H, 232
81H – 90H, 129~144
10
E9H, 233
91H – A0H, 145~160
11
EAH, 234
A1H – B0H, 161~176
12
EBH, 235
B1H – C0H, 177~192
13
ECH, 236
C1H – D0H, 193~208
14
EDH, 237
D0H – DFH, 209~223
Only 15 Dome can be connect
15
EEH, 238
None
Can connect to normal camera
16
EFH, 239
None
Can connect to normal camera
2. Super MPX (Super Multiplexer Mode)
Purpose: use Main Monitor instead of Call Monitor, the feature of selecting particular camera to
the system monitor is the same as MMX mode. Besides of this, by setting the multiplexers
correctly, all of the cameras in this system can be displayed on the system monitor sequentially.
Ex: set the P1 multiplexer to Full Screen Sequence mode, dwell time = 3 seconds. Set S1 to
S16 multiplexer to 4x4 display mode. Then in 48 seconds, all 256 cameras will be displayed on
the system monitor sequentially.

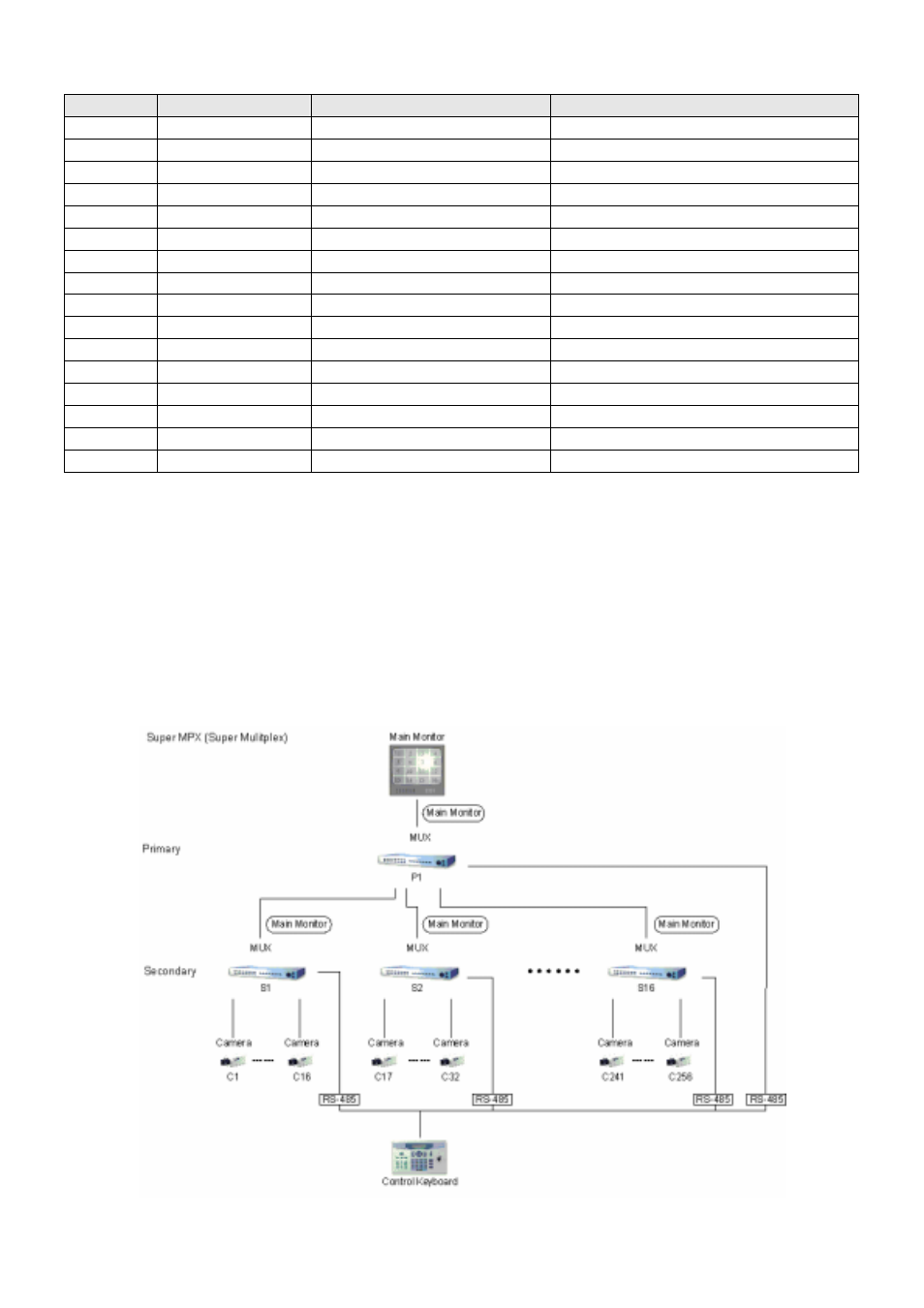

System Diagram:
