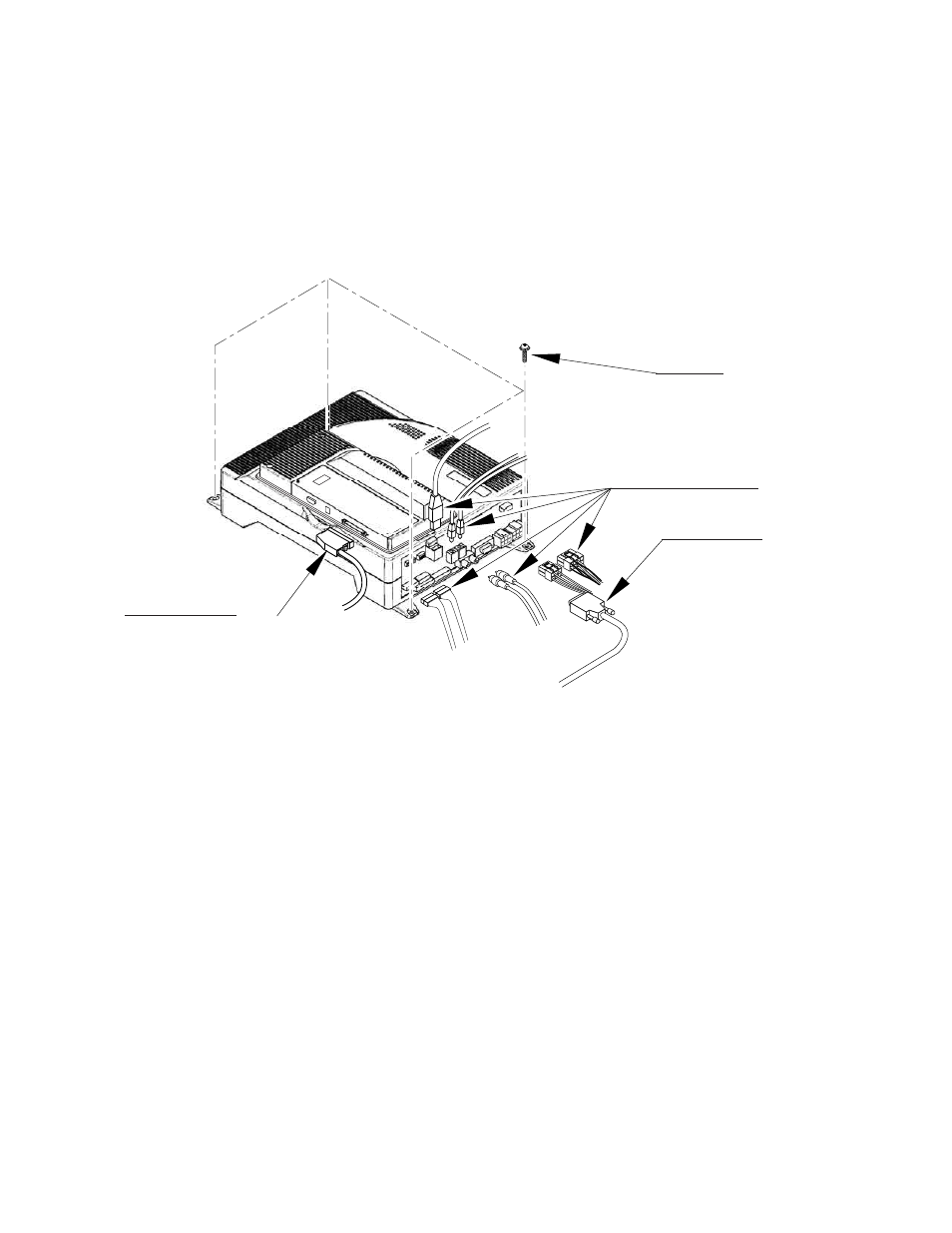

FIG. 19. 2

19-2 REMOVING THE GAME BOARD



Follow the above described action to open cabinet



Remove all the connectors from the filter board on the Game Board. Also remove the GD cable

connector from the DIMM board.



Remove the 4 screws that fix the Game Board.

SCREW (4)
M4×16,w/flat & spring washers

Disconnect all connectors.

D-SUB connector

GD cable connector
