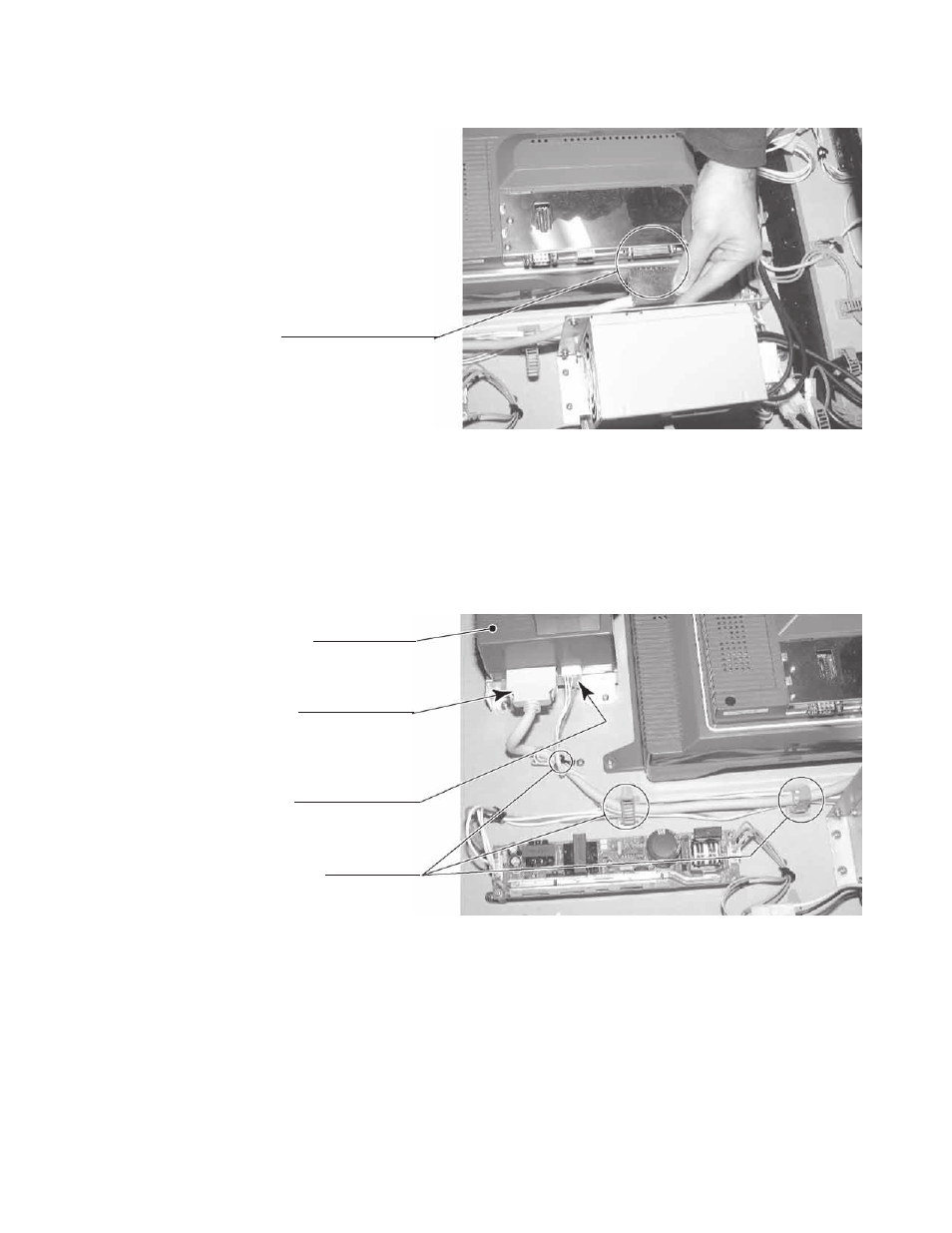

Insert both the GD cable connector (for data communication) and the power cord connector into
the GD-ROM drive. Be careful about an inserting direction in this instance. Make sure that the
connectors are inserted firmly and completely. Secure the cable with the cord clamp.
GD-ROM DRIVE
GD Cable connector
Power Cord connector
PHOTO 6. 3 f
Connect the GD cable connector (for data communication) to the DIMM board.
GD CABLE CONNECTOR
PHOTO 6. 3 e
Secure the cable.
