Sony PDW-F70 - Manual (Page 103)

103
Using the PDBK-103 Analog HD Input Board
Chap
te
r
7
Us
ing Op
ti
on Boa
rds
• The PDBK-103 and PDBK-104 cannot be used when the
PDBK-102 is installed. Using the PDBK-103
Analog HD Input Board
With the PDBK-103 Analog HD Input Board installed in
option slot 2 of this unit, you can record HD analog signals
such as YPbPr signals and RGB signals in addition to
HDSDI signals.

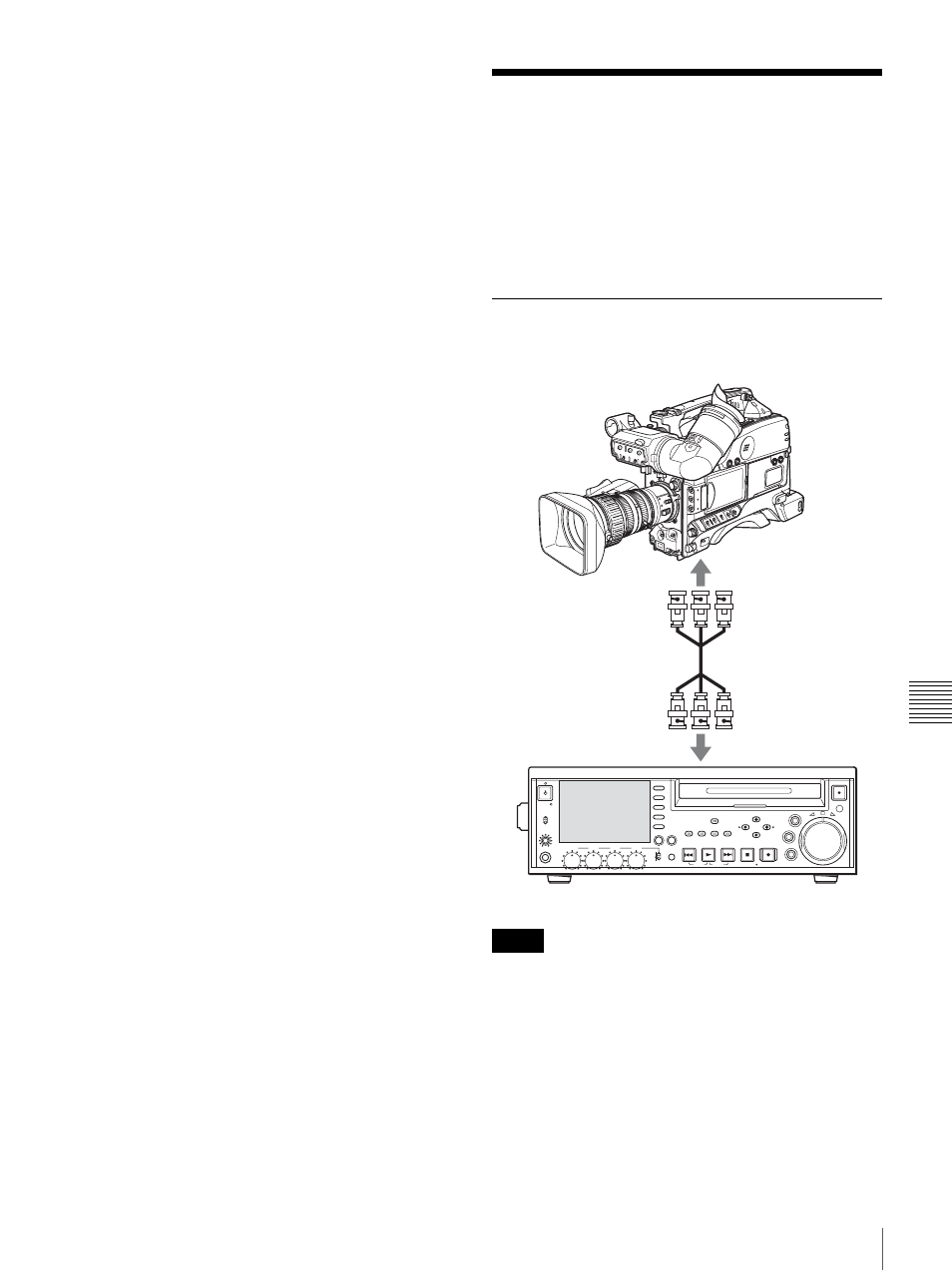

Camcorder Connection Example
• Install the PDBK-103 in option slot 2.
• The PDBK-102 and PDBK-104 cannot be used when the
PDBK-103 is installed.
• Select YPbPr signals or RGB signals in the input video
selection menu. This menu appears only when an
optional input board is installed.
Notes
PHONES
VAR
JOG
MARK1 MENU
PAGE DISPLAY
SUB
CLIP
F1
F5
F4
F3
F2
SHIFT
CLIP MENU ESSENCE MARK
SET THUMB NAIL RESET OUT IN
MARK2
SHUTTLE
TOP
KEY INHI
EXPAND
CHAPTER
F REV F FWD END
PREV NEXT PLAY STOP
STANDBY
REC
EJECT
CH 1 CH 2 CH 3 CH 4
NETWORK
LOCAL
REMOTE
ACCESS
LEVEL
REC
VARIABLE
PRESET
PB
PDW-F330 Professional Disc Camcorder
Y/Pb/Pr output
Cable with BNC
connectors (not supplied)
× 3
Y/Pb/Pr input
PDW-F70
