SMOOTH CE 7.4E ELLIPTICAL TRAINER
www.smoothfitness.co.uk
14
ASSEMBLY
STEP 4:

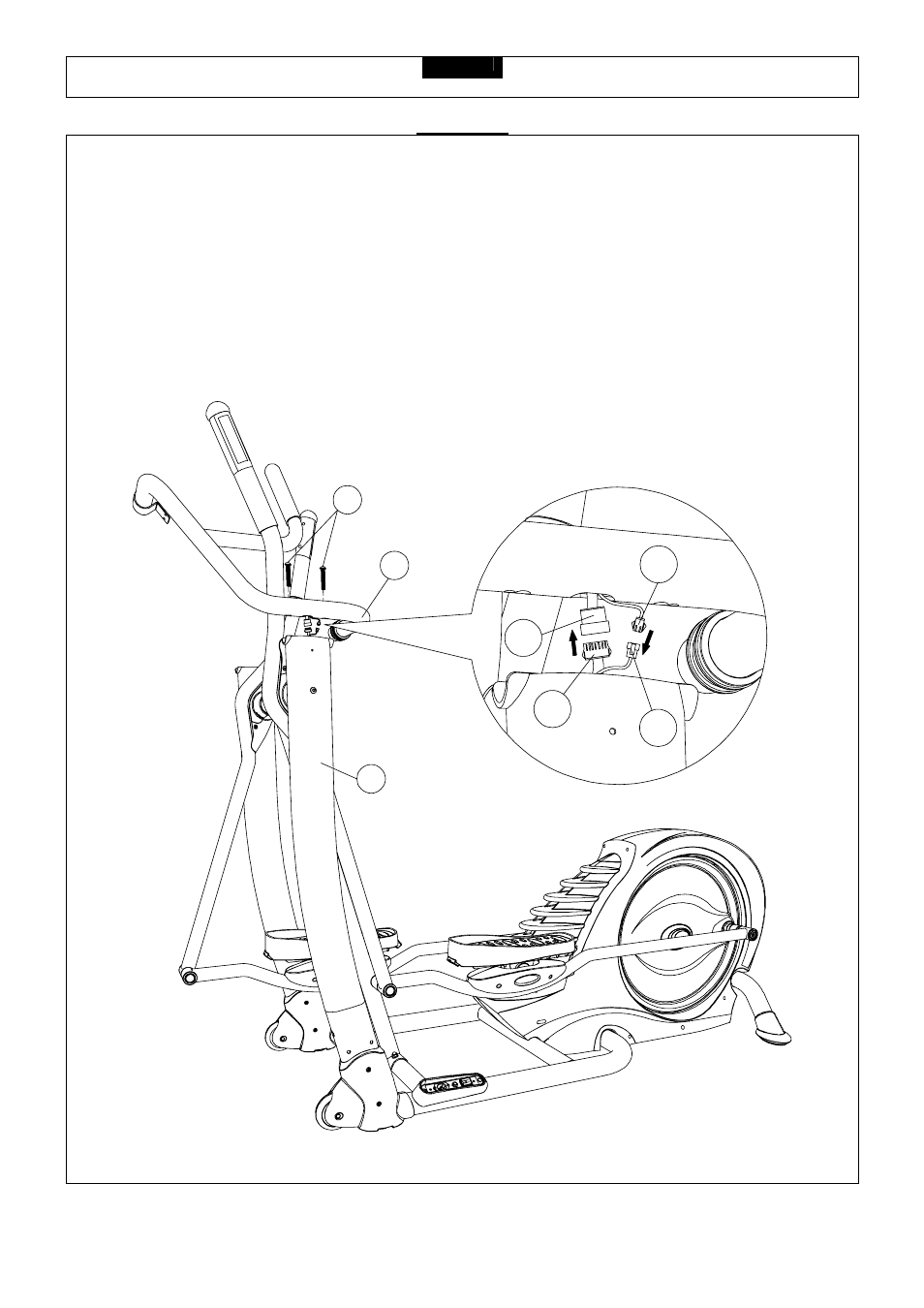

First connect the Wire Harness – Upper (111) to the Wire Harness – Middle (118) and Hand Pulse Sensor Wire –Upper (117)
to the Hand Pulse Sensor Wire – Middle (9) as shown in FIG 7.
Attach the Handrail – Left (7) to the Side Upright – Left (5) and secure using two M8 x 45mm Allen Head Bolts (59).
NOTE:
Make sure all wires are recessed into the Upright, do not trap or pinch any of the wires.
7
5
118
111
59
117
9
Fig 7
