ASSEMBLY
STEP 1:

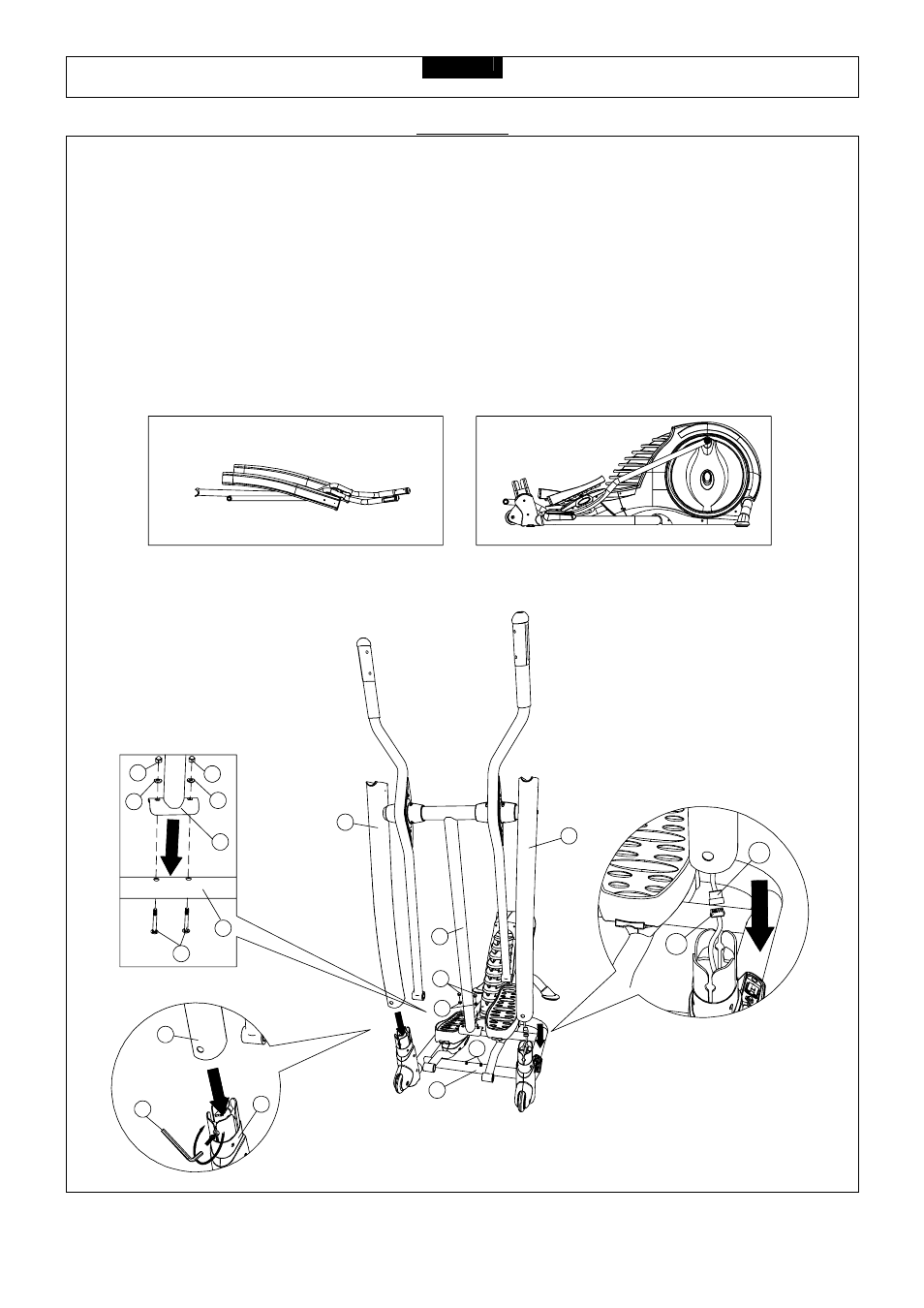

Remove the upper frame and lower frame of Elliptical Trainer from the carton as shown in FIG.1 and FIG.2.
First connect the Wire Harness - Lower (110) and Wire Harness – Middle (118) as shown in FIG.5.
Slide the Side Upright – Left (5) and Side Upright – Right (6) into the Base Frame (99)
and secure by tightening the two Bolts
as shown in FIG 4. The two Bolts are pre-assembled to the Base Frame (99) at the factory.
Secure the Upright (42) to the Base Frame (99) using two M8 x 65mm Bolts (78), two 8mm Curve Washers (91) and two M8
Cap Nuts (98) as shown in FIG 3.
NOTE:
Make sure the wire is recessed into the frame, do not trap the wire.
