Installation

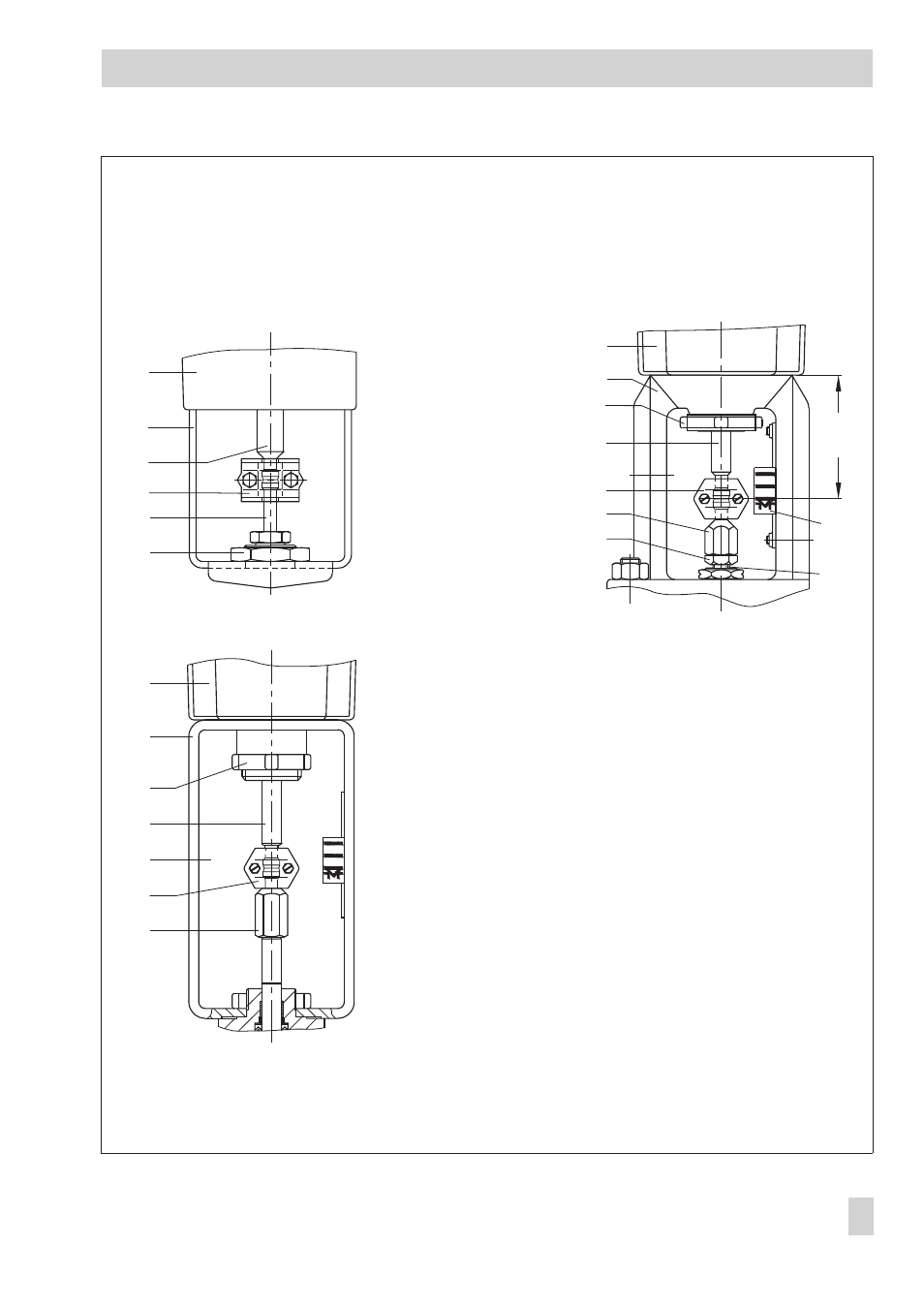

Fig. 2 · Attachment to the valve
1
2.1
3
4
5
6
x
1
2.3
7
3
4
8
9
10
5
1
2.2
7
3
10
4
5
Attachment to Series V2001,
Type 3260 (DN 65 to 150) and
Type 3214 (DN 65 to 100)
Attachment to Series 240
Attachment to Type 3214
(DN 125 to 250)
1 Actuator
2.1 Actuator yoke
2.2 Valve yoke
2.3 Bonnet
3
Actuator stem
4 Stem connector
5 Plug stem
6 Nut
7 Ring nut
8 Stem connector nut
9 Lock nut
10 Travel indicator scale
