12 Unit description
4 UNIT DESCRIPTION
Features and benefits of the 44/62 Ultra Plus:

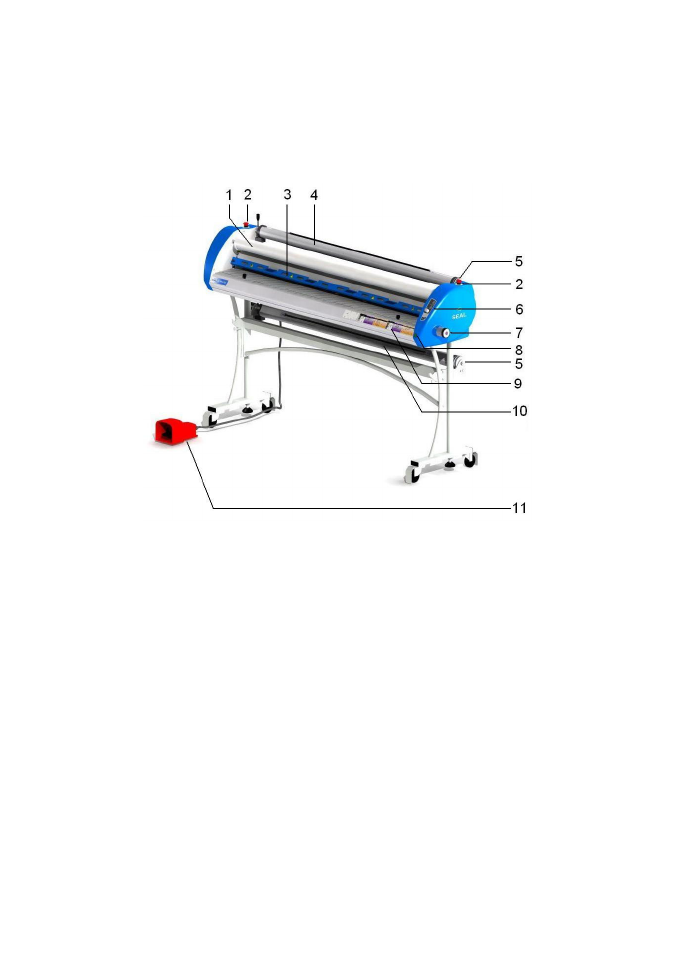

Figure 7
Identification of parts
1
Wind-up tube Wind-up for the release-liner
2 Emergency stop button
3 Image guide To help infeed images. It is removable when
mounting.
4 Upper unwind shaft The shaft is suitable for rolls having a 3-inch core
5 Unwind brake A simple means of setting the unwind tension.
6 Control panel Controls rotation of the rolls, temperature and
standby.
7 Nip knob To adjust the gap between the rollers
8 Bottom Heater Switch Activates bottom heater (if equipped)
9 Process control sheet Shows how to preset the machine.
10 Lower unwind shaft The shaft is suitable for rolls wound onto a 3-inch ID
core
11 Foot switch To engage slow mode.
The ID-label is located on the rear side of the machine.
