Front / rear & Center Speakers Cradle Stand and Wall Mount Installation

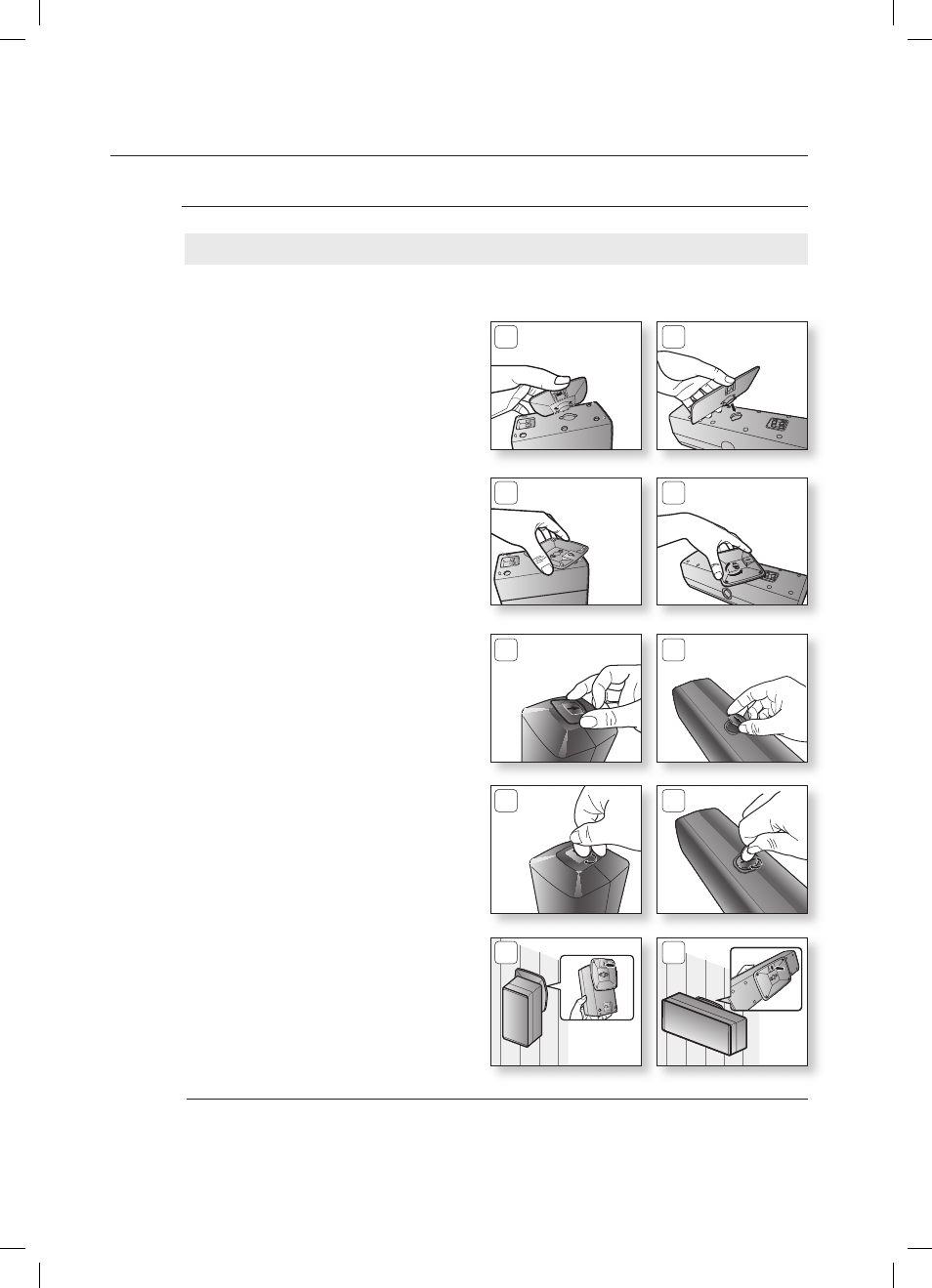

3. Put the hole cover on the hole of the
speaker.
4. Use a coin turn the hole cover clock wise
to fi x it. (Turning it count-clock wise will
loosen from the hole.)
5. Use the wall mount hole (bracket) to install
the speaker on the wall.
5 5
3 3
Installing the Wall Mount
1. Insert the wall mount so that it fi ts into the
rear hole of the speaker as in the fi gure.
2. Turn the wall mount counter clockwise to
fi x it. (This is the reverse direction to the
cradle stand.)
1 1
To avoid accident fall and consequent damage to the customer and speaker, make sure
the speaker is hung safely.
