8

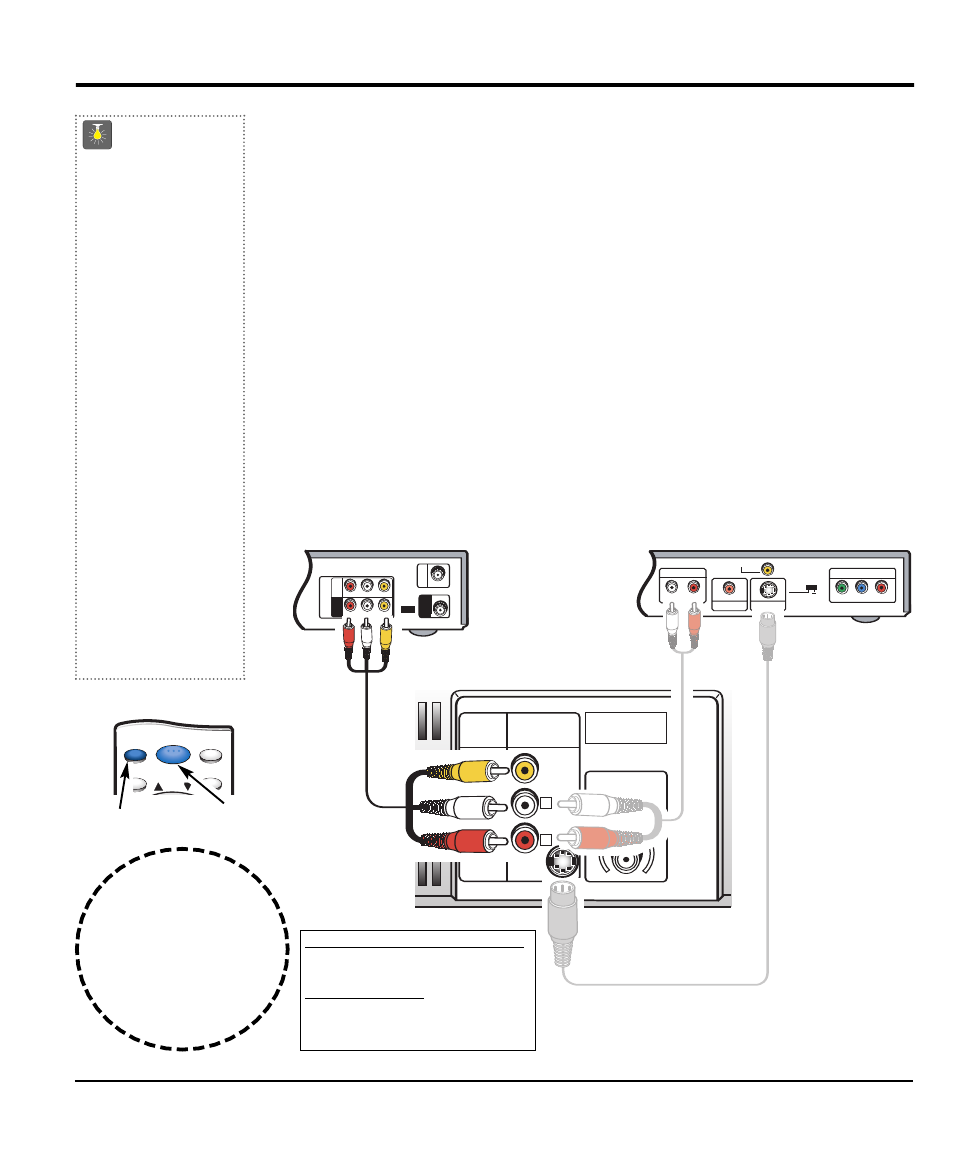

Connect a VCR or DVD Player to AV Input Rear Jacks

CONNECTING A VCR OR OTHER EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Connect VCR, DVD Player, or other equipment’s Audio Video Out to the TV Audio Video
Input.

For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input.

Optional

Connect DVD Player or other equipment’s S-Video Out to the TV S-Video In Jack.

Using the S-Video jack overrides the Video (AV1) jack.

Press POWER to turn on the TV. Turn on external equipment also.

To access Audio/Video inputs, press the INPUT key to select VIDEO2.

Notes: Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input

jacks.

Connect equipment to the component inputs or AV2 inputs, but not both sets at
the same time.

QuickTips

Make sure all cable
connectors are fully
seated on jacks.

Always match A/V
cables according to
the colors; red for
right audio, white for
left audio and yellow
for video.

A solid Blue screen
with the word
VIDEO2 displayed,
means that the Video
mode is selected, but
no signal is being
detected at the
Video jacks. Check
connections, turn on
external equipment.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

What you will need for connections:

AV Cable – 1

O

PTIONAL

C

ONNECTION

S-Video Cable – 1

Audio Cable – 1

Press

INPUT key after

connecting cables to

access the A/V inputs.

There is NO need to

tune to a blank

channel.

Using the Rear Audio / Video Input Jacks

Y

P

B

/C

B

/C

R

P

R

COMPONENT VIDEO OUT

AUDIO OUT

R

L

DIGITAL OUT

COAXIAL

S-VIDEO OUT

VIDEO OUT

VIDEO OUT
SELECT

S-VIDEO COMPONENT

AUDIO VIDEO

INPUT 2

R

L

UHF/VHF/CATV

75

P

R

P

B

Y

VIDEO

COMPONENT

2

34

R-AUDIO-L

R-AUDIO-L

VIDEO

VIDEO

VHF/UHF

TO TV

FROM ANT.

RF

CHANNEL

IN

OUT

IN

OUT

S-VIDEO

Back View of VCR

Rear TV AV Input Jacks

DVD Player

MENU

RECALL

RESET

INPUT

CH

POWER

Remote Control
