Spirit EL255 User Manual
Page 12
EL255 Elliptical
11

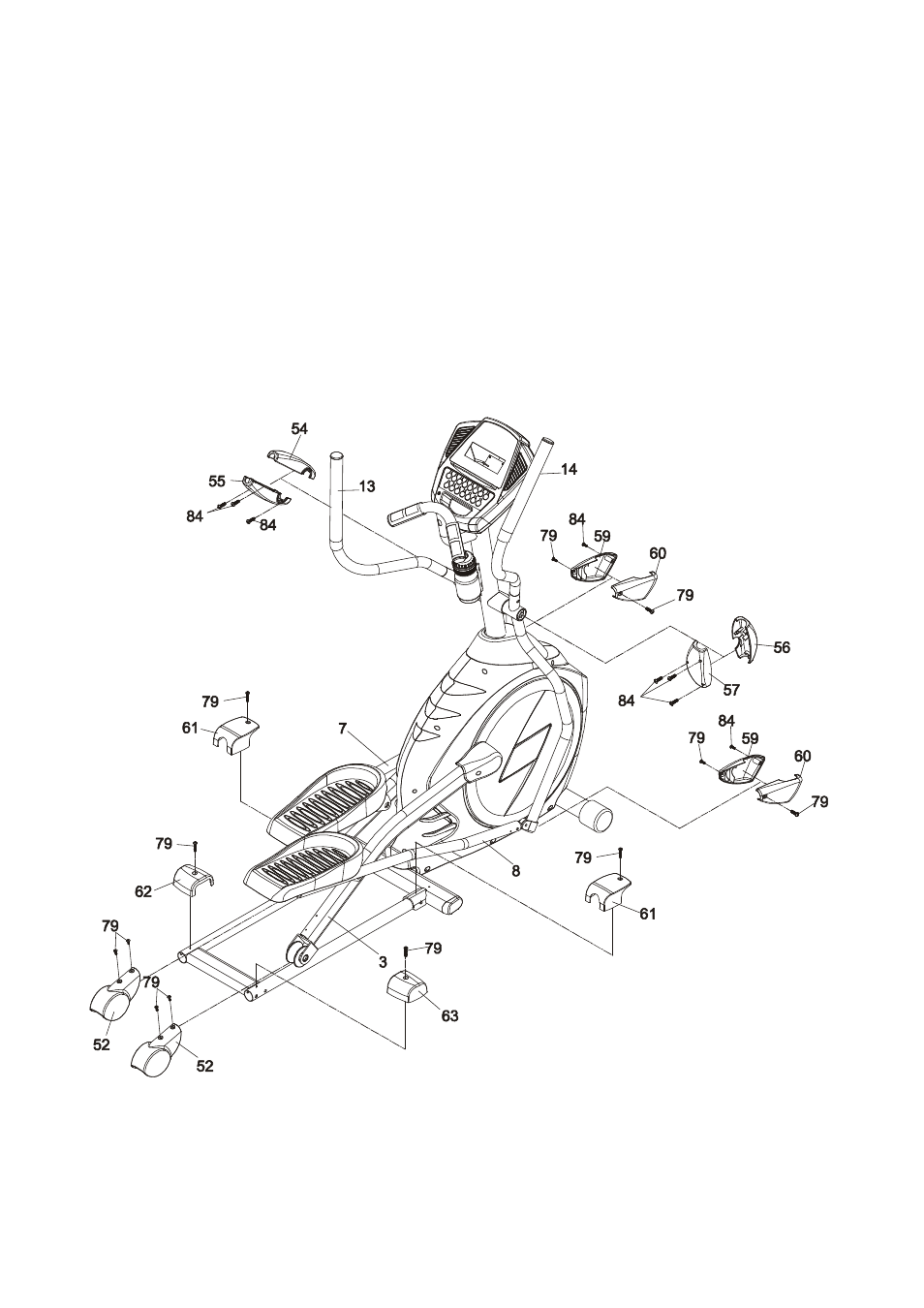

STEP 4: BEAUTY COVERS ASSEMBLY
• Install the Connecting Arm Covers (59 & 60) over the connection of the rod end and Swing Arms
with four M5 Phillips Head Screws (79) and two 3.5x12mm Self Tapping Screws (84).
• Install the two Wheel Covers (52) on the pedal arms above the Wheels with four M5 Phillips Head
Screws (79).
• Install the Front Swing Arm Covers (54 & 56) and Rear Swing Arm Covers (55 & 57) over the Swing
Arm axle connections with six 3.5x12mm Self Tapping Screws (84).
• Install the two Middle Stabilizer Covers (61) on the joint of the Rail Tubes (14) and the Stabilizer.
Secure the covers with two M5 x 15mm Phillips Head Screws (79).
• Install the Rear Stabilizer Covers (62 & 63) on the rearward end of the Rail Tubes (14) and secure
them with two M5 x 15mm Phillips Head Screws (79).
