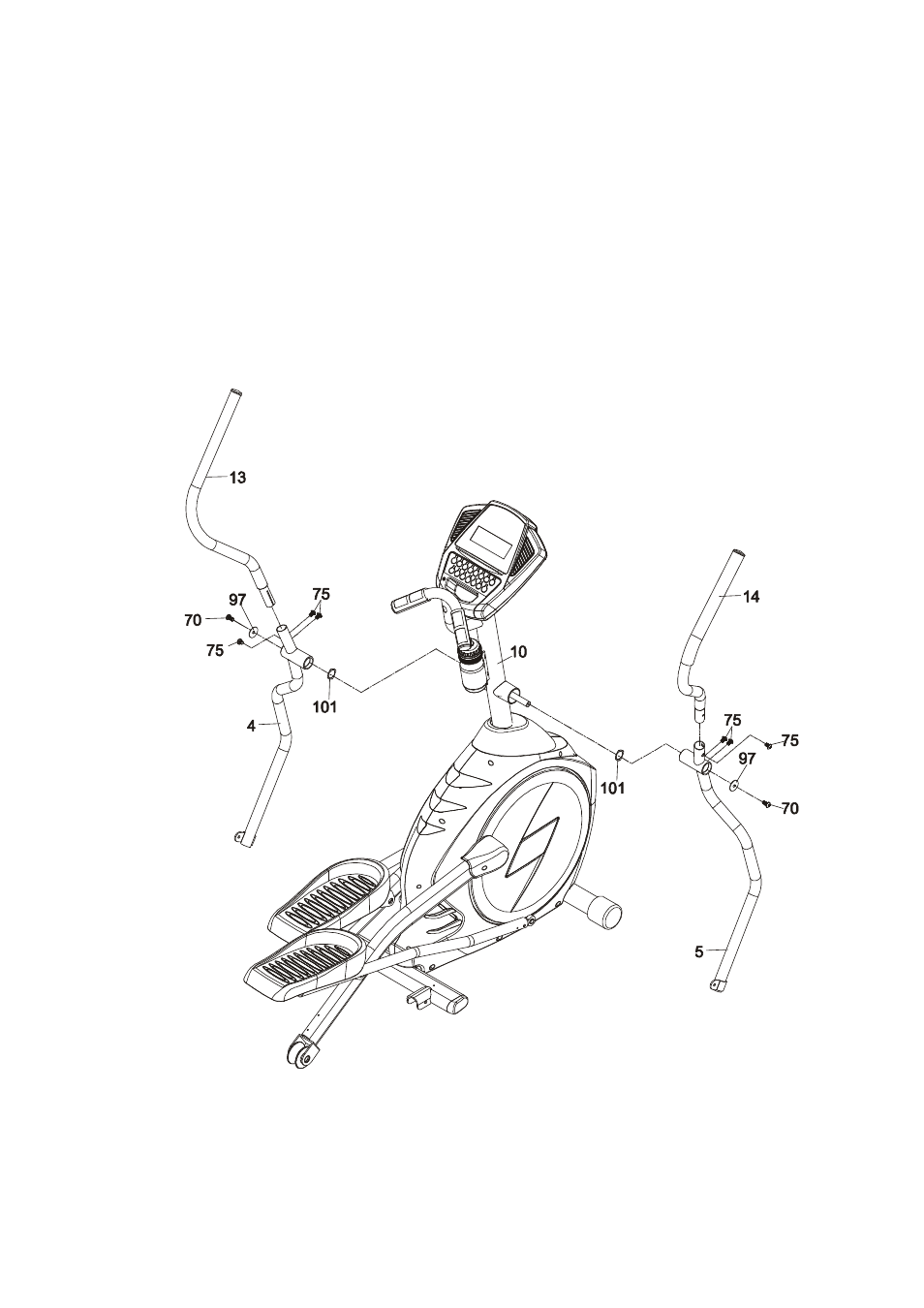

STEP 2: SWING ARM ASSEMBLY
• Install the two Wave Washers (101) onto the Left and Right sides of the Swing Arm axle.
• Slide the Left and Right Swing Arms (4&5) onto the appropriate side of the axle. There is a small
sticker on each swing arm that shows L (Left) or R (Right). Do not force the swing arms onto the
axles, they should slip on but may need to be jiggled a little to align them properly. The swing arms
have been installed at the factory during testing so they should fit properly.
• Install two 5/16" Flat Washers (97) onto the two 5/16" Hex Head bolts (70) and install and tighten in
the threaded holes in the ends of the axle.
• Install the left and right upper arms (13&14) to the lower arms with six 5/16” x 15mm bolts (75).
