EL255 Elliptical
10

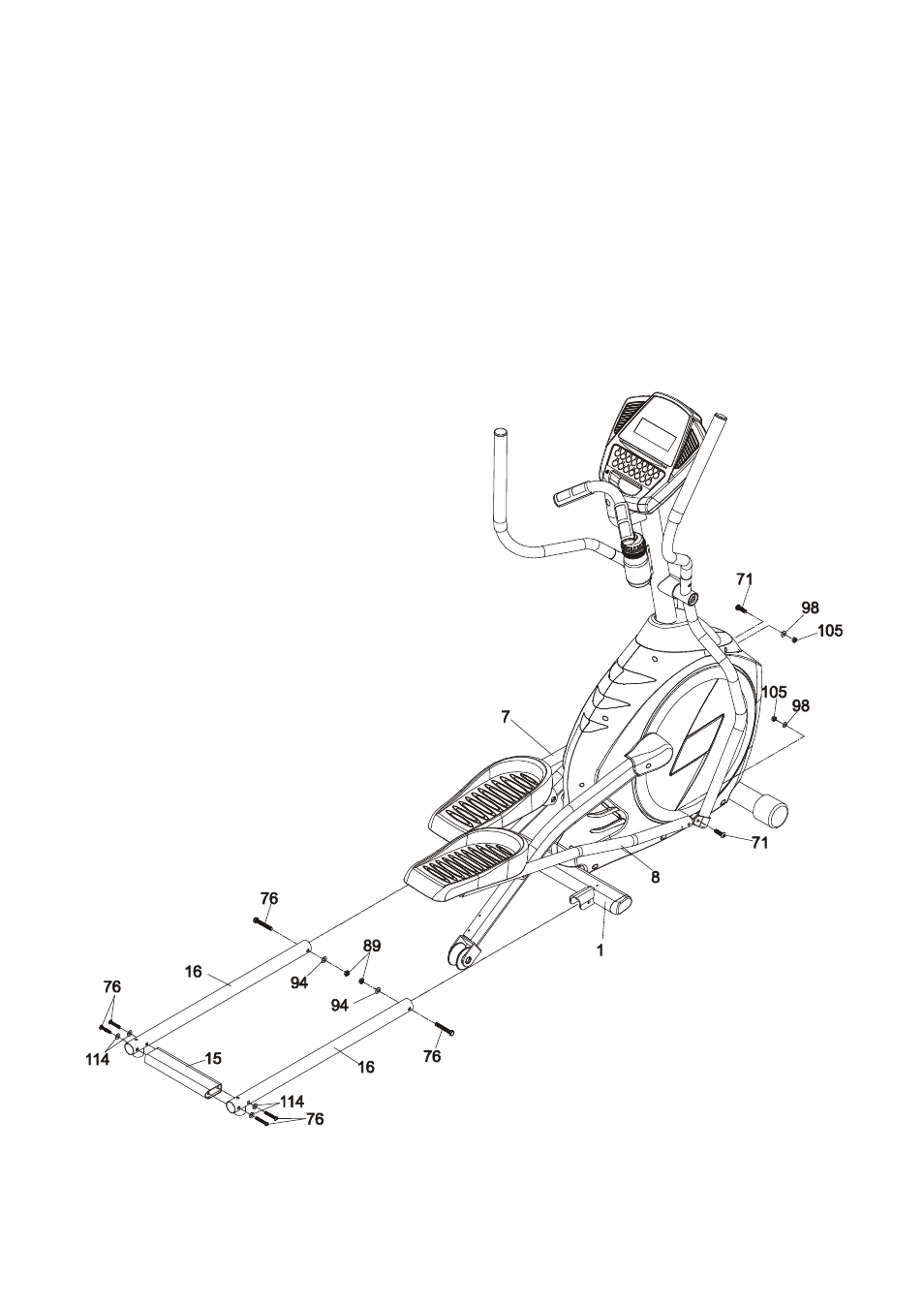

STEP 3: CONNECTING ARMS AND REAR RAIL ASSEMBLY
• Align the hole in the rod end bearings at the ends of the Connecting Arms (7&8) with the hole in the
bracket of the Swing Arms. There is a sleeve spacer already installed in the rod ends and held in
place with a twist tie; make sure these spacers do not fall out during assembly. The rod end bearing
should be positioned to the inside of the swing arm brackets. Install two 5/16" Hex Head Bolts (71)
through the left and right swing arm brackets and the rod end and secure with 5/16" Flat Washers
(98) and 5/16" Nuts (105).
• Install the two Rear Rail Tubes (16) to the rear end of the Main Frame (1) and secure with two 3/8” x
2-1/4” Bolts (76), two 3/8” Flat Washers (94) and two 3/8” Nuts (89).
• Install the Rail Stabilizer (15) between the rearward ends of the Rail Tubes (16) and secure with four
3/8” x 2-1/4” Bolts (76) and 3/8” Curved Washers (114).
•
