16_ Maintain tools and filter

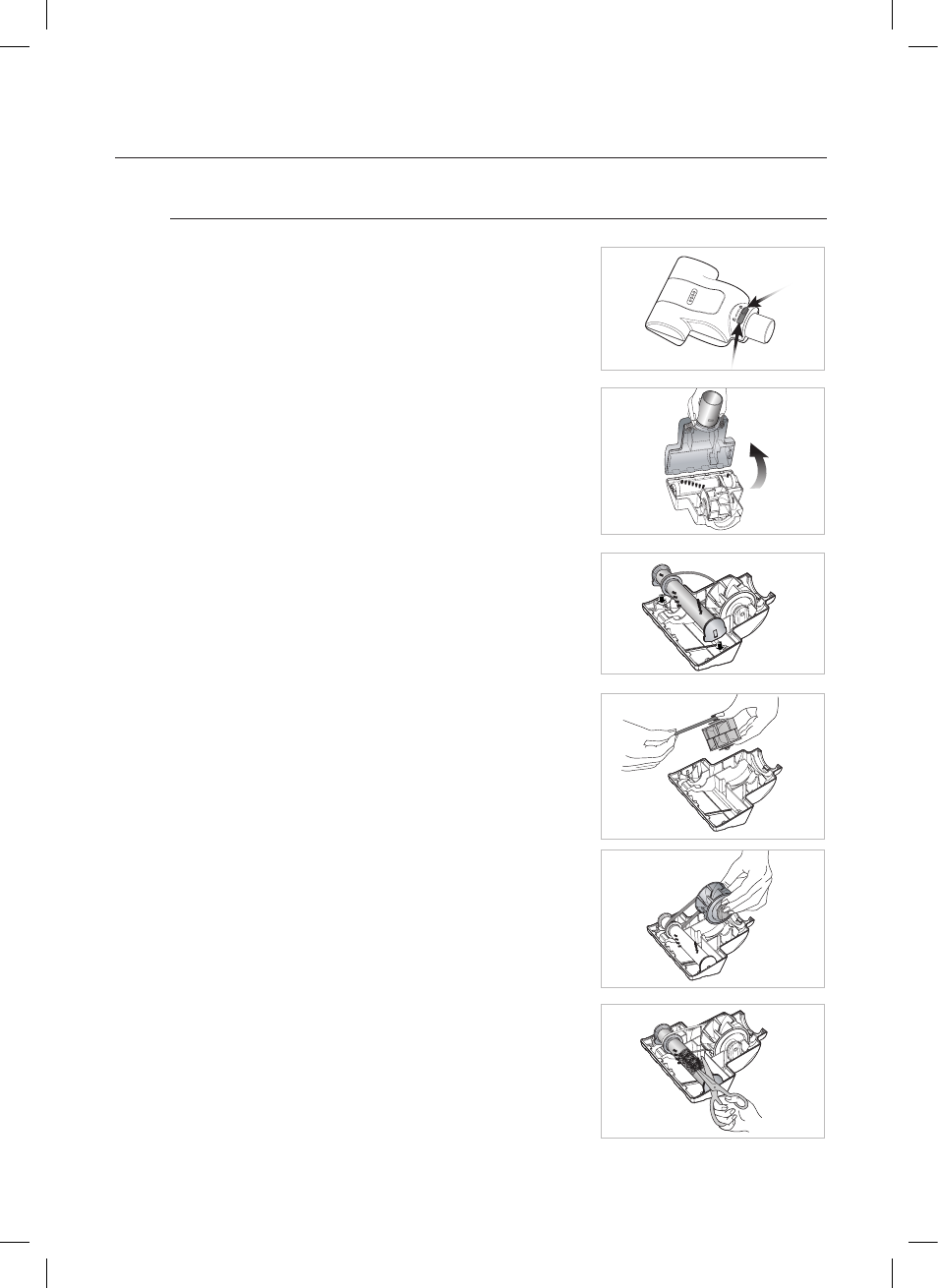

brushbar Replacement
1. Remove the tool from the pipe, and turn
upside down.
Slide the switch to unlock position and remove
bottom plate.
2. Remove brushbar and discard.
3. Inspect belt to ensure that it is in good
condition. If broken or cracked, please replace.
(See below for details.)
4. With the curved ends facing down, slide end
plates of brushbar into slots on the tool.
5. To replace bottom plate, insert the four tabs on
edge of bottom plate into slots on front of tool.
Pivot bottom plate down and snap closed.
belt Replacement
1. Grasp turbine and pull firmly to remove.
2. Remove belt from turbine pulley. Replace with
new belt.
3. With flat sides of turbine retainers pointing
down, slide retainers into grooves in tool
housing and snap into place.
4. Replace brushbar and bottom plate.
Cleaning brushbar
Cut off pet hairs or threads surrounding brush by
using scissors.
