Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This
function makes the positioning of images easy on the screen. (See page 28)

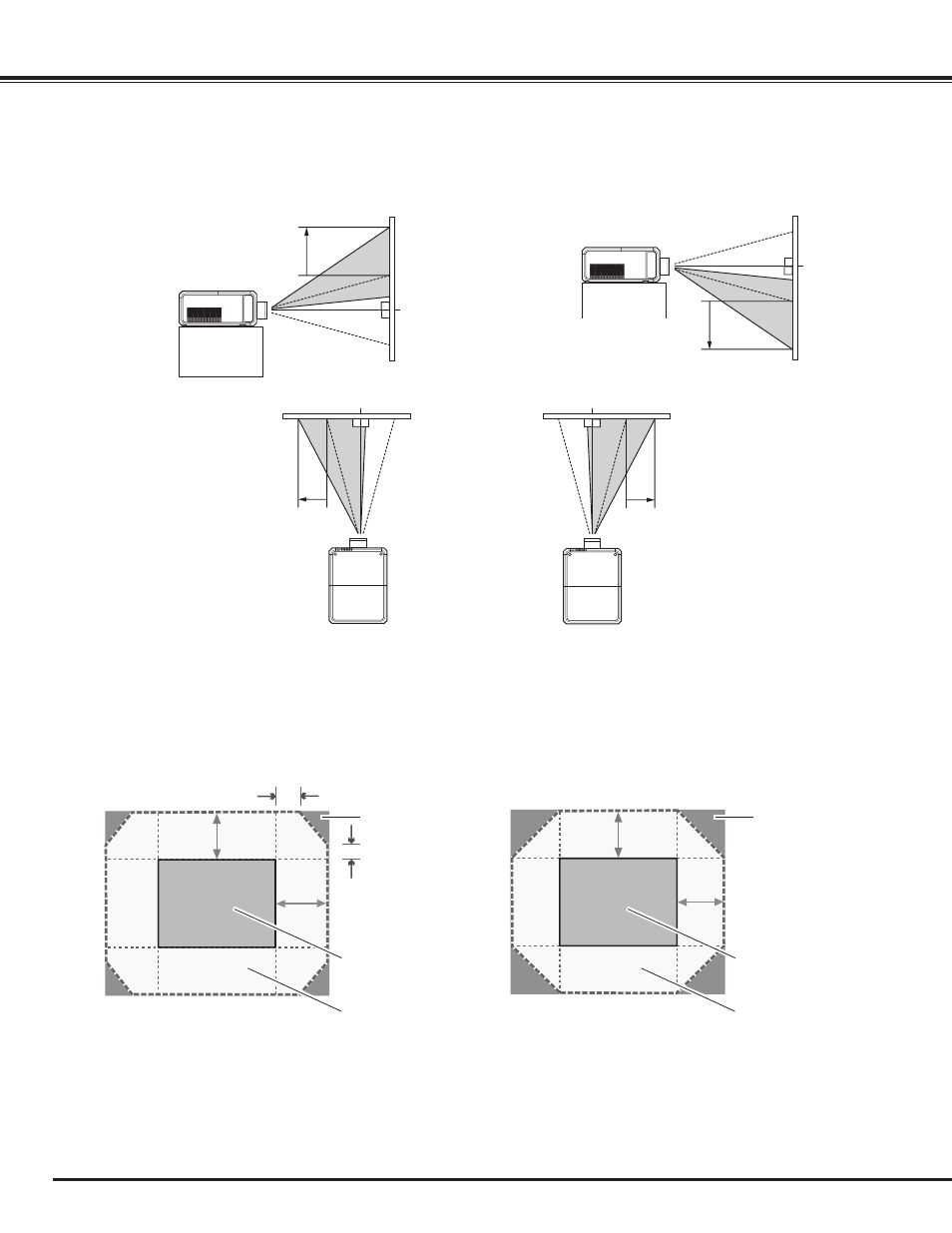

Lens Shift Adjustment
when the lens is shifted to top .
The display position can be
shifted upward up to 55%
elevation of the display.
when the lens is shifted to bottom .
The display position can be
shifted downward up to 55%
low level of the display.
when the lens is shifted to leftmost .
The display position can be
shifted to the left in up to
45% width of the display.
when the lens is shifted to rightmost .
The display position can be
shifted to the right in up to
45% width of the display.
Installation
✔
Note:
✽ When the lens is shifted beyond the described range of
operation, the screen edges may become darker or the
images may become out of focus.
for W51
for S50,W50,T50,T51
45%
55%
19%
21%
40%
55%
Lens shift adjustable range
Lens shift center position
Shift range
✽
For LNS-S50/ W50/ T50/ T51
for W51
for S50,W50,T50,T51
45%
55%
19%
21%
40%
55%
Lens shift center position
Shift range
✽
For LNS-W51
