SOHOware

Secure Cable/DSL Router 37

BroadGuard

IP Address: The IP address of the NGB800

Subnet Mask: 255.255.255.0 is the default setting

MAC Address: The MAC address of the BroadGuard

Firewall: The NGB800 firewall status

Tools

Five useful tools are provided: PPPoE Check, Hacker Alert Test, View Current
Access Control Settings, Access Monitor, and Download Firmware.

PPPoE Check (DSL Users Only)

If you are a DSL user, this page will help you to check whether your settings for
PPPoE work or not. After making the PPPoE settings on the broadband connection,
save and restart your BroadGuard. Then open the PPPoE Check page and click
Check Now.

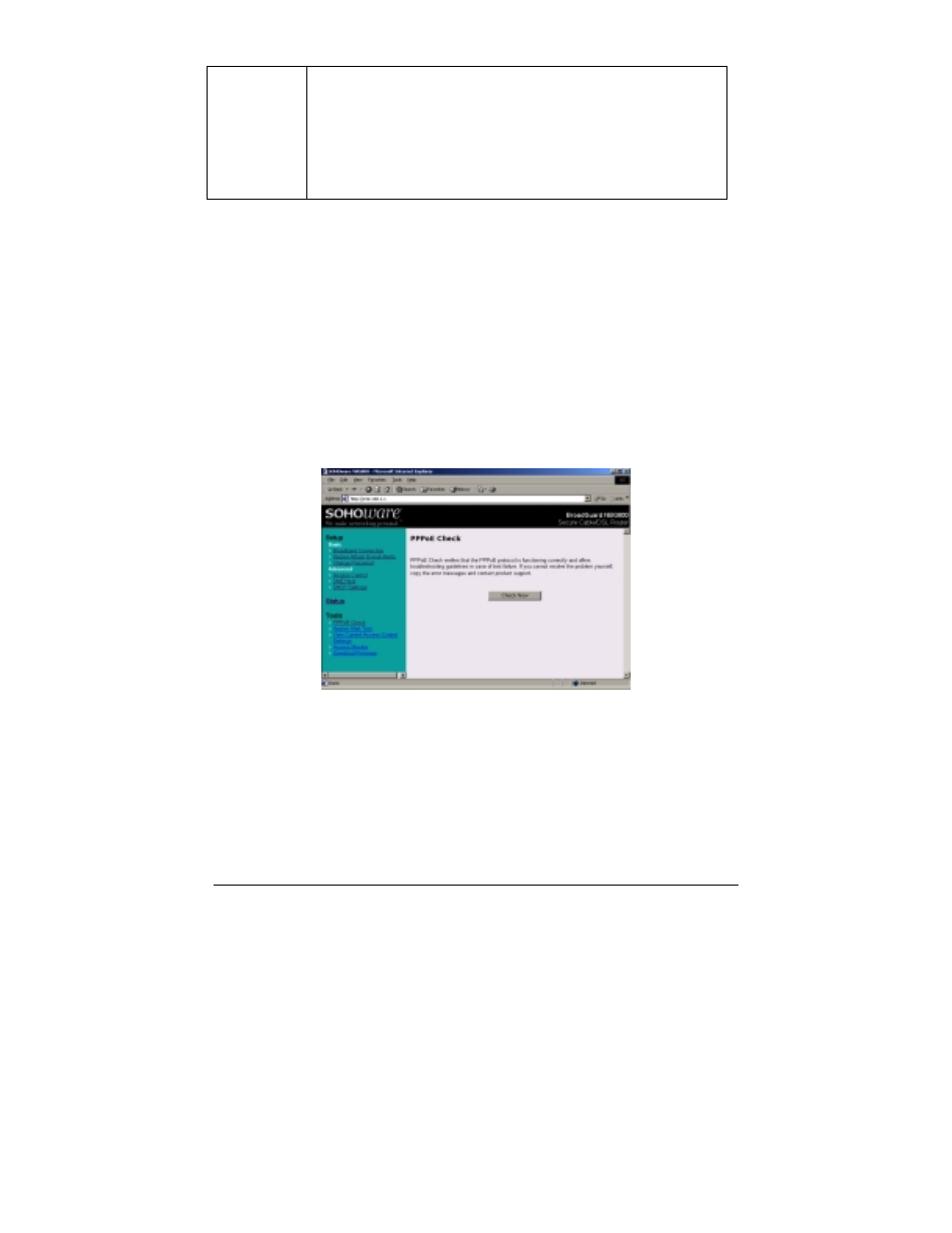

Figure 46. PPPoE Check

Either of the following screens (Figure 47 or Figure 48) indicate that your PPPoE
has worked well.
