Looking at the controls – Sony MZ-R35 User Manual

Page 37

Text mode
Original mode

-EN

Looking at the controls

See pages in ( ) for more details.

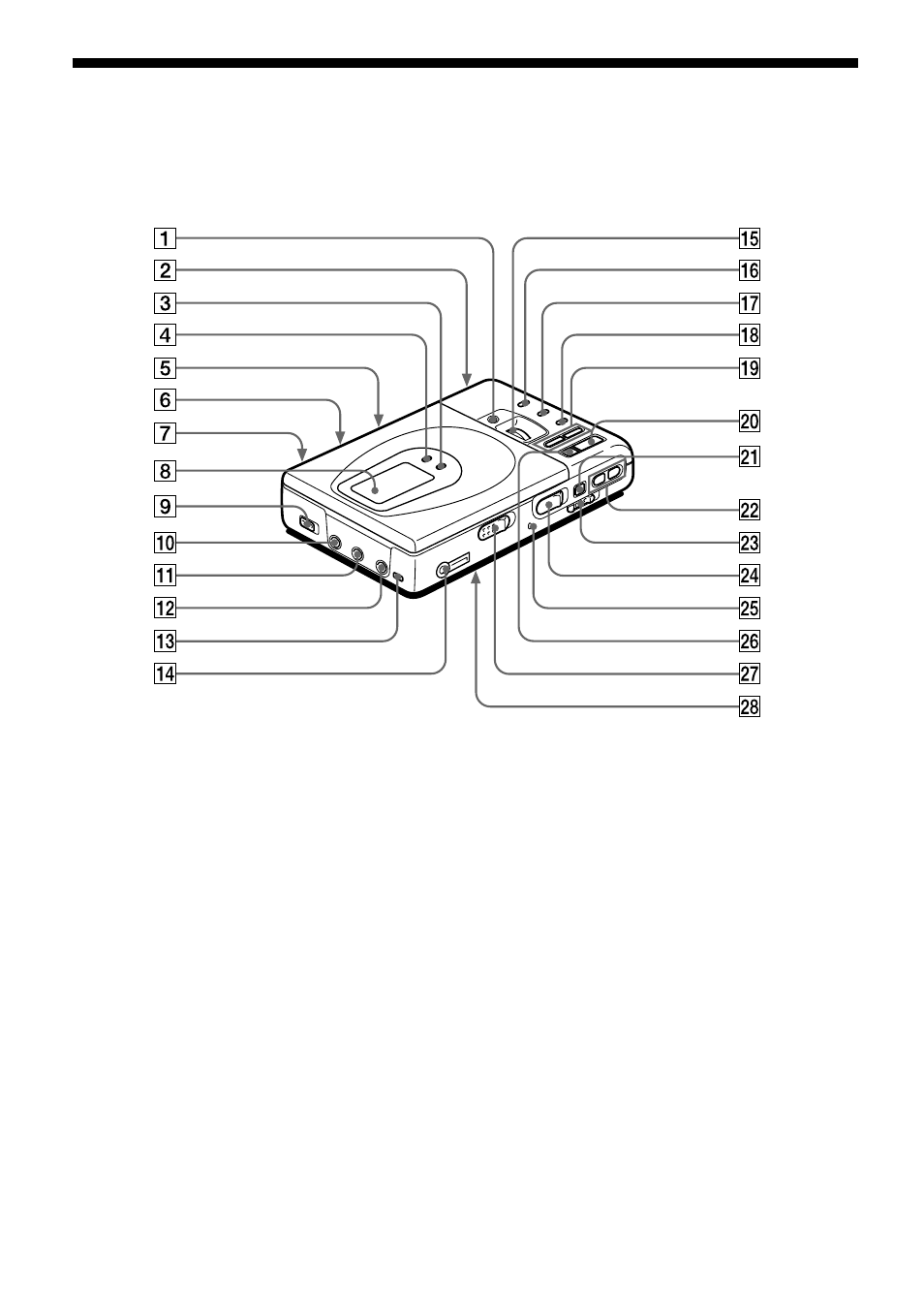

The recorder

1 TITLE/ENTER button (23)
2 Battery compartment (at the bottom)

(25)

3 MODE button (17)
4 DISPLAY button (14, 19)
5 MIC SENS switch (at the bottom) (12)
6 AVLS switch (at the bottom) (18)
7 DC IN 6V jack (at the rear) (6)
8 Display window (14, 19)
9 SYNCHRO REC (synchro-recording)

switch (11)

0 MIC (PLUG IN POWER) jack (12)
!¡ LINE IN (OPTICAL) jack (6, 11)
!™ LINE OUT jack (20)
!£ DIGITAL MEGA BASS button (18)

!¢ 2 (headphones)/REMOTE jack (8)

!∞ Vertical jog dial (17, 23)
!§ TRACK MARK button (22)
!¶ END SEARCH button (7)
!• ERASE button (21)
!ª =/+ (search /AMS) button (7, 9)

@º ( (play) button (7, 9)

@¡ P (pause) button (7, 9)

@™ VOLUME +/– button (9)
@£ HOLD switch (19)
@¢ REC (record) switch (7)
@∞ Record indicator (14)
@§ p (stop) button (7, 9)

@¶ OPEN button (6)
@• CLOCK SET button (at the bottom)

(15)
