A
A
A) ALL REVEALS ARE 1 / 8 " (3) *DIMENSIONS MAY VARY
SIDE VIEW
24"
(610)
PANEL WIDTH
26 3 / 4 "* (679)
13 9 / 16 "
(345)
16 11 / 16 "*
(424)
4"*
(102)
34 1 / 2 "
(876) *
27"
(686)
FINISHED OPENING
TOE KICK
F R A M E L E S S C A B I N E T R Y A P P L I C A T I O N S

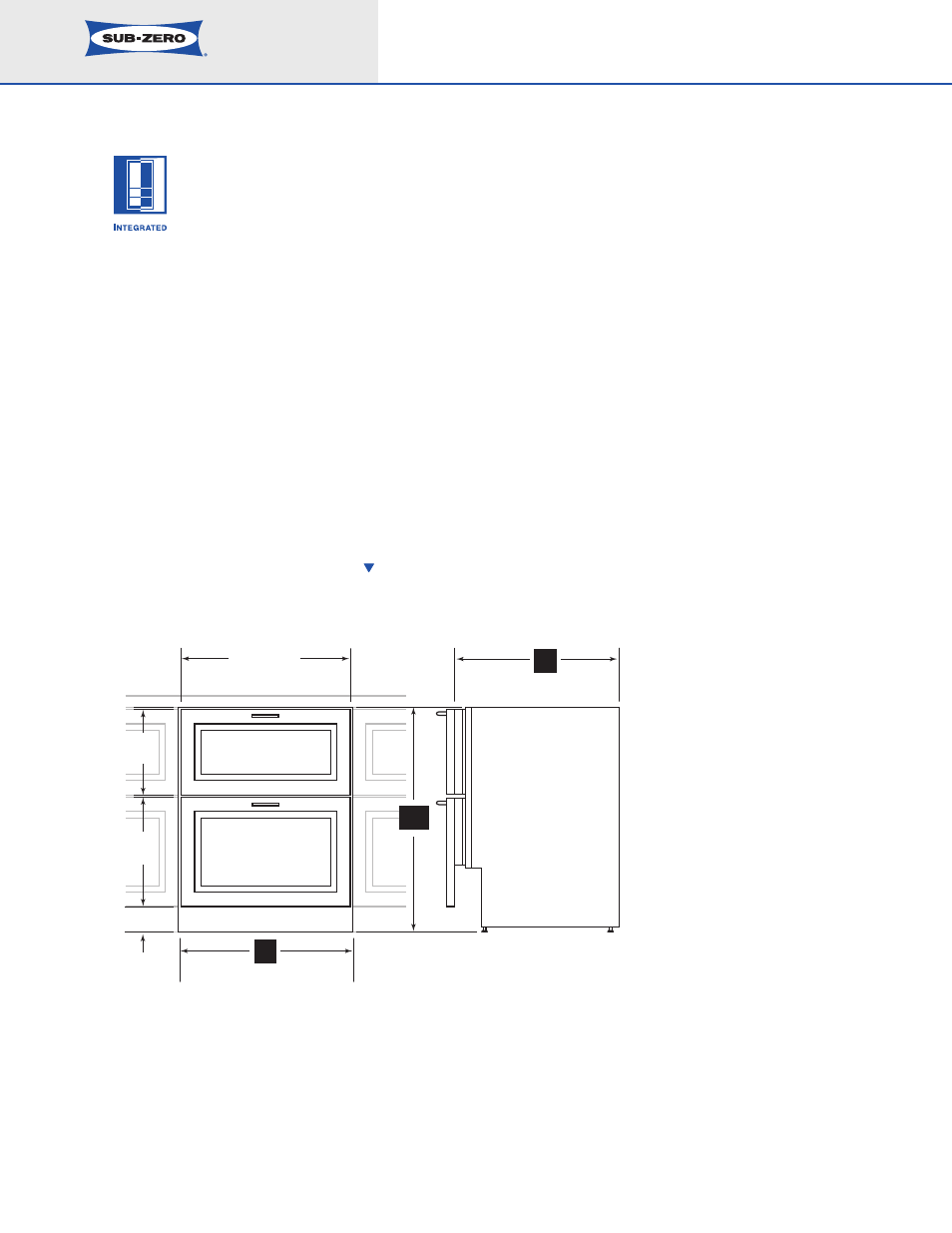

The illustration below shows a hypothetical installation of
an Integrated drawer unit within frameless cabinetry.
Review the illustration, giving particular attention to the
overall panel specifications.
IMPORTANT NOTE: Dimensions are based on a 1 / 8 " (3)
reveal. A reveal of up to 1 / 4 " (6) is possible, but panel
dimensions need to be adjusted accordingly.
F R A M E L E S S C A B I N E T R Y
Planning Information
Integrated Model 700BR
9
Installation of an Integrated drawer unit
within frameless cabinetry.
*Dimensions may vary.
Dimensions in parentheses are in
millimeters unless otherwise specified.
