Planning Information
Integrated Model 700BR
Dimensions in parentheses are in
millimeters unless otherwise specified.
10
I N S T A L L A T I O N O P T I O N S
The illustrations on this page show some typical
installations and their dimension considerations.
The depth dimension in the illustrations may vary
depending on cabinet styles, treatment of counter-
tops or other design options.
IMPORTANT NOTE: The depth of each Integrated
unit is 24" (610) from the front of the unit to its
back. Your design may necessitate moving the unit
back, or cabinets forward to achieve a flush fit. This
will require a minimum rough opening depth of 25"
(635). Refer to the illustrations.
D U A L I N S T A L L A T I O N S
If two or more Integrated models are installed side
by side where there is 2" (51) or less of space
between the units, a heater kit is recommended—
BBDUAL for two drawer units installed side by side
or a drawer unit and a tall unit installed side by
side. This optional component is available through
your Sub-Zero dealer. To obtain local dealer informa-
tion, visit the Locator section of our website,
subzero.com.

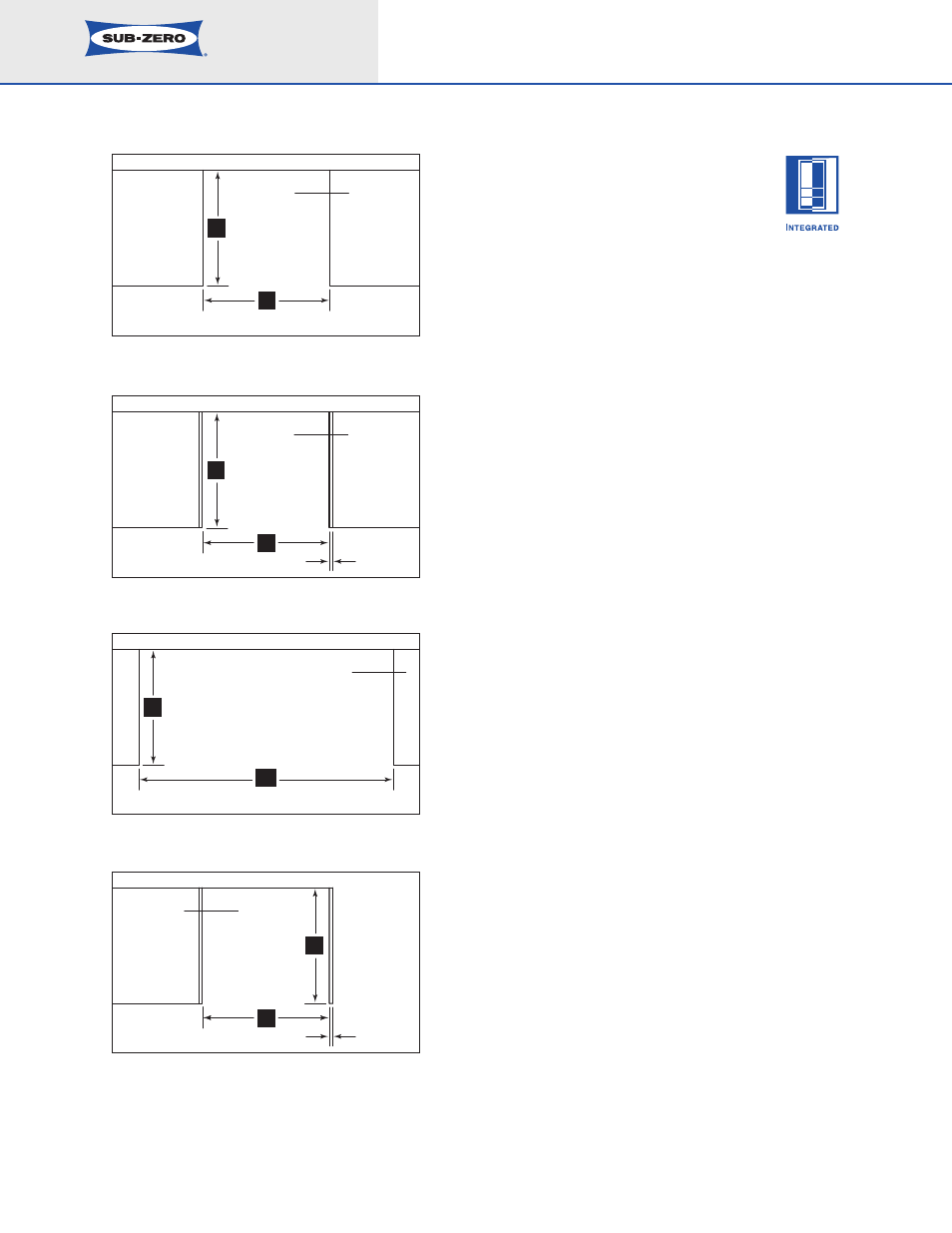

Installation without side panels.
Installation with side panels.
Installation of two units side by side.
Installation at end of run.
TOP VIEW
CABINETS
25
(635)
C
27
(686)
2
CABINETS
25
(635)
T
27
(686)
2
MINIMUM 5 / 8 " (16) SIDE PANELS
M
TOP VIEW
CABINETS
54
(1372)
25
(635)
C
CABINETS
25
(635)
2
27
(686)
MINIMUM 5 / 8 " (16) SIDE PANELS
