Section 6
26

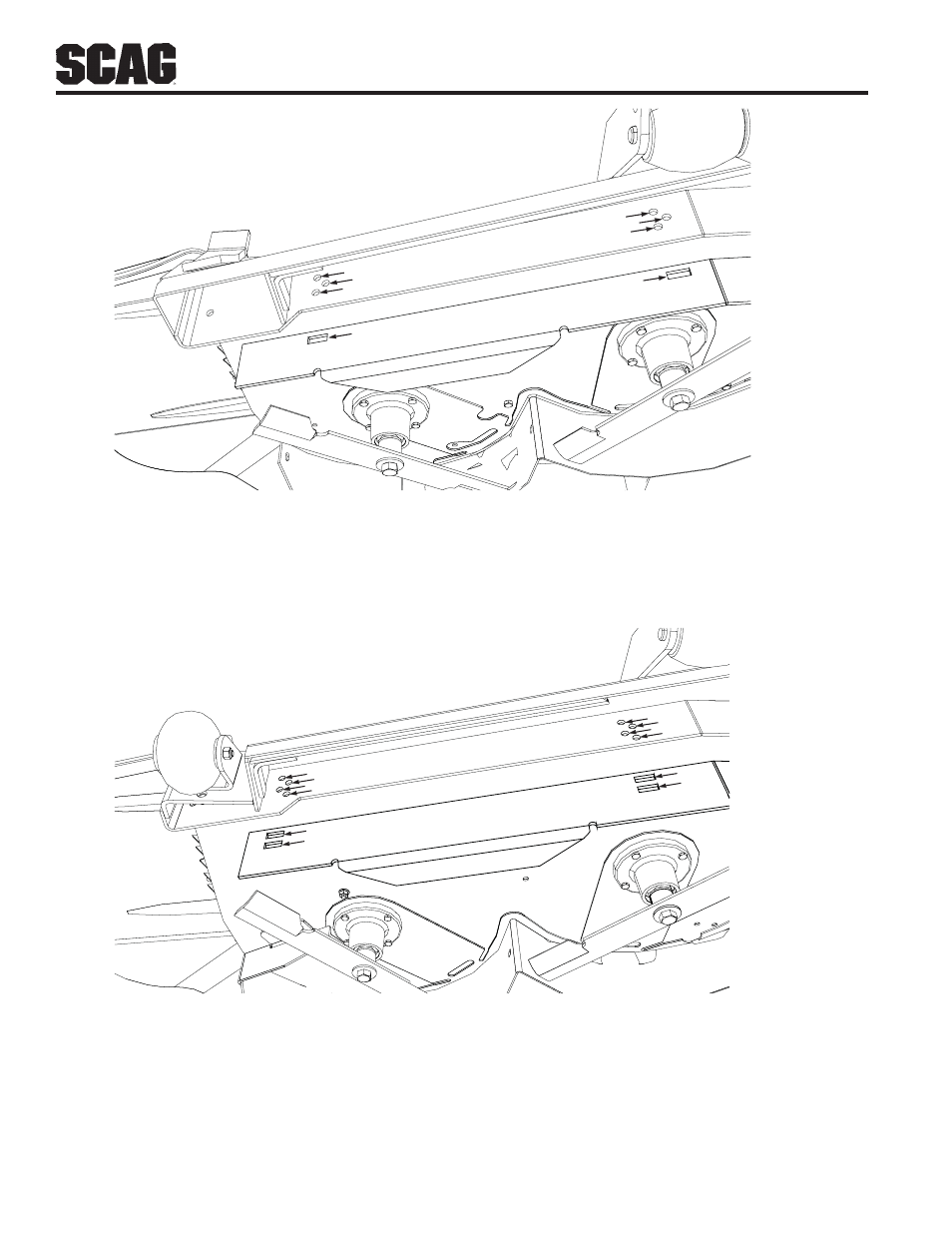

Figure 6-9. 3-Position Custom-Cut Baffle Adjustment
Figure 6-10. 7-Position Custom-Cut Baffle Adjustment
Custom-Cut Baffle Adjustment
Slot “A” Hole 1 Hole 2 Hole 3
Height (inches) 3” 3-1/2” 4”
Mounting Slot Mounting Hardware Location
1
2
3
A
1
2
3
A
1
2
3 4
A
B
1 2
3 4
A
B
Custom-Cut Baffle Adjustment
Slot “A” Hole 1 Hole 2 Hole 3 Hole 4
Height (inches) 3-3/4” 4-1/4” 4-3/4” 5-1/4”
Slot “B” Hole 2 Hole 3 Hole 4
Height (inches) 3-1/2” 4” 4-1/2”
Mounting Slot Selected Mounting Hardware Location
