Location and Function of Parts and Controls

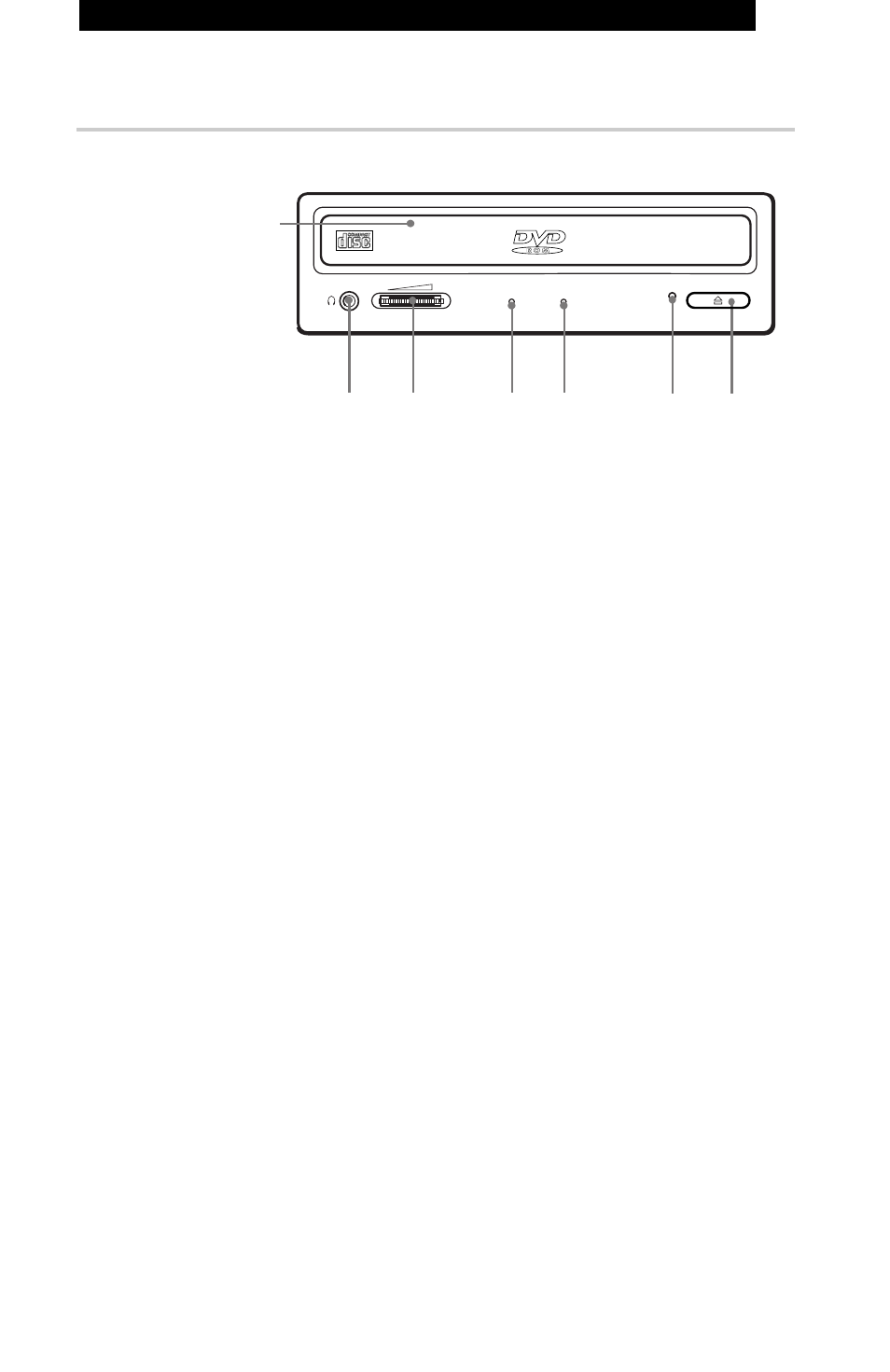

Front Panel
7 5 6 4 3 2
1
1Disc drawer
Loads a DVD-ROM or CD-ROM disc.
2Headphones jack
Accepts a stereo headphones set. Analog audio signals are
output.
3Volume contr ol
Controls the volume level of sound output from the headphones
jack
2.
4DVD indicator
This green indicator light or goes off to indicate one of the
following unit conditions.
• Steady lit: DVD-ROM disc is loaded
• Off:
CD-ROM disc is loaded
5Busy indicator
This amber indicator lights or flashes to indicate one of the
following unit conditions.
• Steady lit: TOC (table of contents) read, seek data read, or
audio playback in progress.
• Flashing: Drawer in motion.
6Emergenc y eject hole
Used to open the disc drawer manually when neither the eject
button
7 nor a software command works. Insert a pointed
object, such as a paper clip, into this hole and push.
7Eject b utton
Opens and closes the disc drawer.
