Reassembling the Computer
1
Reinstall the floppy disk drive in the top drive bay.
2
Reconnect the interface cables to the floppy disk drive.
3
Fasten the screws and front brackets as they were before.
4
Tuck the cables behind the drive so that they do not protrude
above the power supply module.
5
After checking the following points, slide the computer’s cover
on and fasten the cover mounting screws at the back of the
computer.
• Are the connections between the drive unit and computer
correct?
• Are the jumpers set to the appropriate positions?
6
Remount the rear plastic panel and refer back to the proper
installation section if you answered “no” to either of the
questions above.

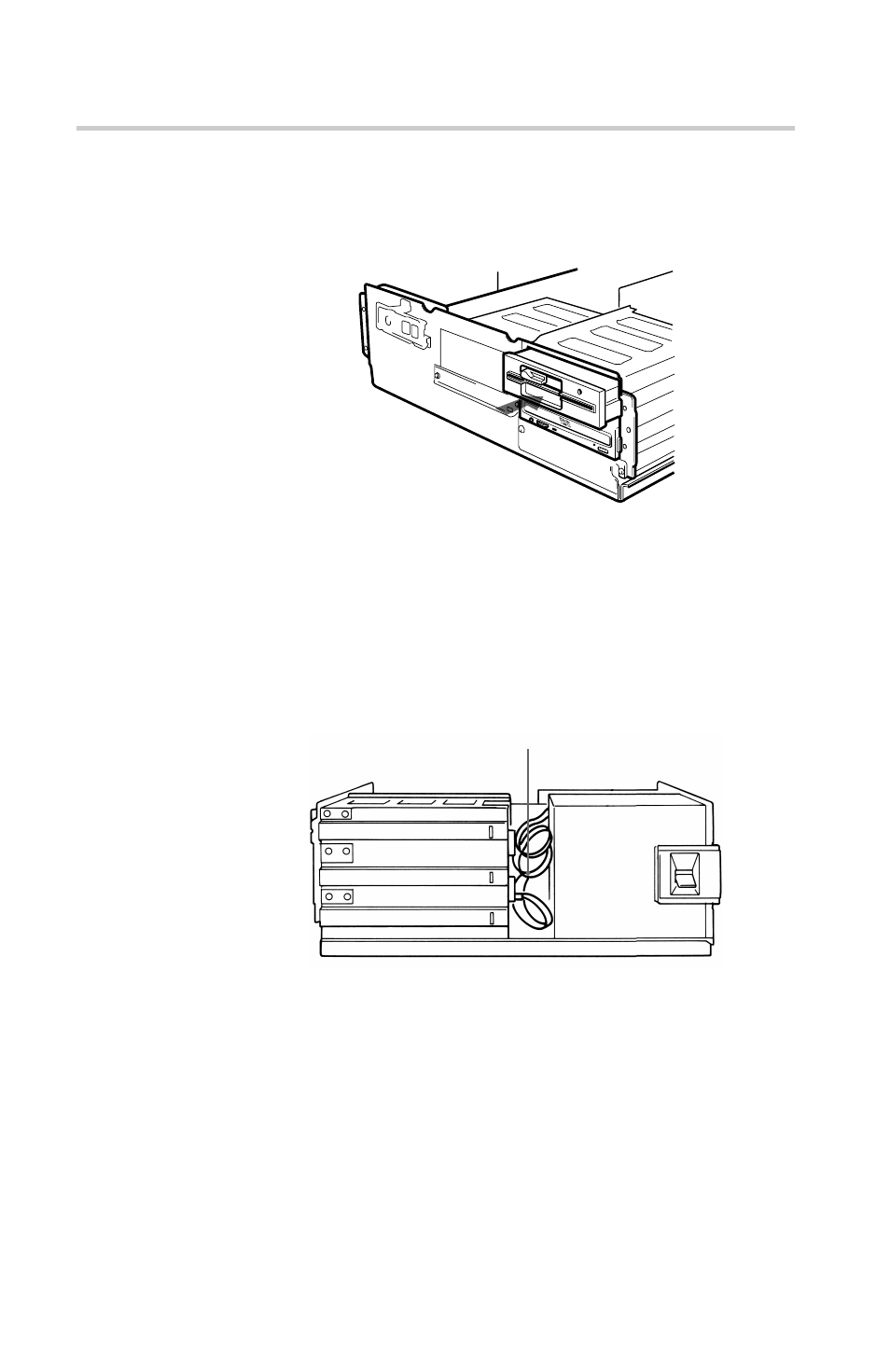

Reinstall the floppy disk drive.
Tuck the cables.
Power supply
Installing the Drive Unit in Your Computer
