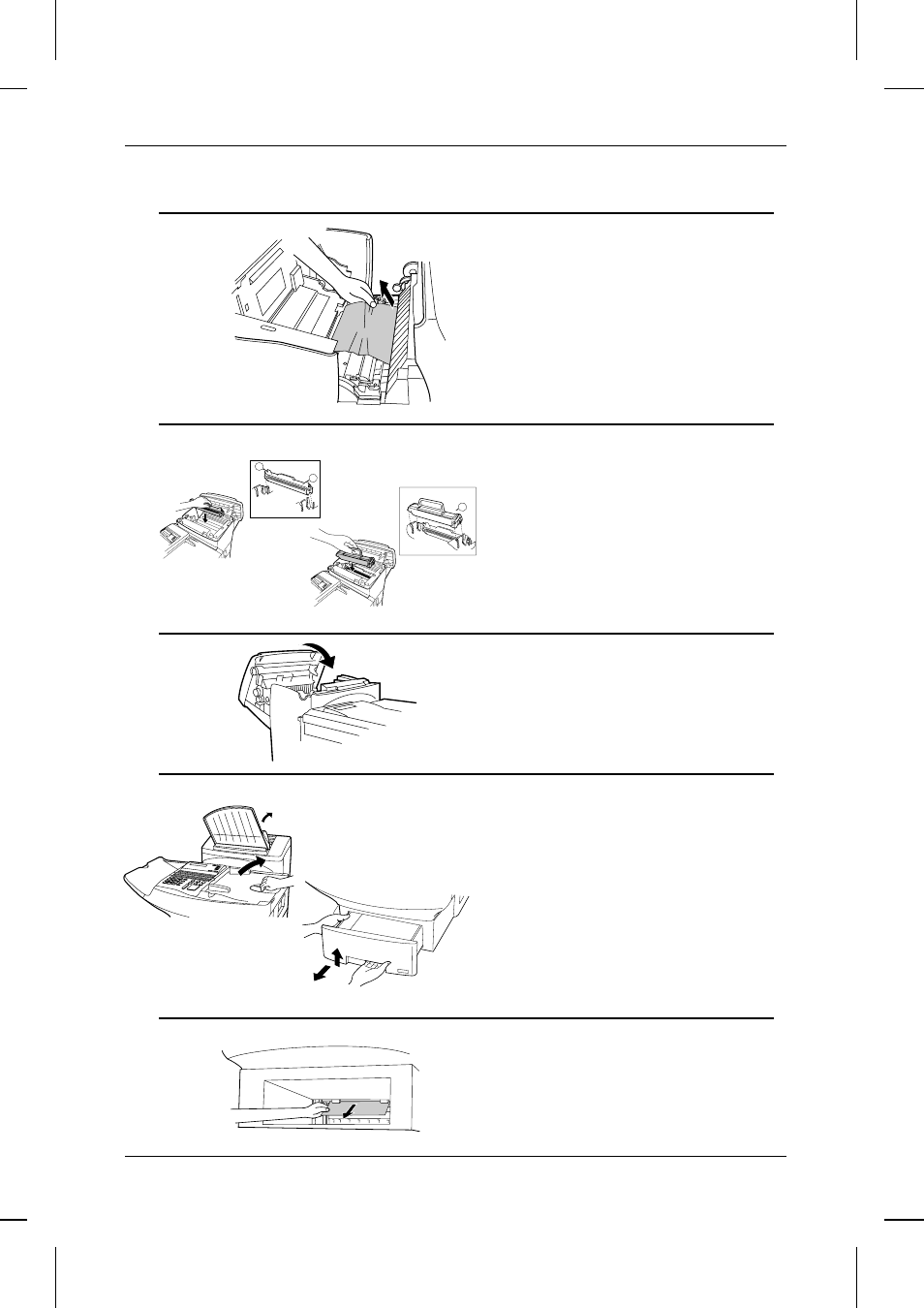

Gently pull the paper out of the
compartment.
••
If the leading edge of the paper has en-
tered the fusing unit, first pull the lead-
ing edge out of the fusing unit, then
pull the paper out of the compartment.
••
Be sure to remove any torn pieces of
paper.
4
Replace the drum cartridge, and then
the toner cartridge.
••
For detailed instructions, see Steps 5
and 7 in "Installing the Printer Car-
tridges" in Chapter 1.
Left
L
R1
Right
5
Close the printer cover.
6
If you didn’t find any paper in the
printer compartment, or if PAPER
JAM still appears in the display after
you close the printer cover, check the
paper cassette and paper tray.
••
To check the paper tray, grasp the
hand hold on the original document IN
tray and rotate the tray up.
7
Gently pull out any jammed paper you
find, and then replace the cassette or
close the original document IN tray.
2
Left
Right
CLEARING PAPER JAMS
8-6 TROUBLESHOOTING
