Notes
• Use screws that are suitable for the wall material and
strength. As a plaster board wall is especially fragile,
attach the screws securely to a beam and fasten them
to the wall. Install the speakers on a vertical and flat
wall where reinforcement is applied.
• Contact a screw shop or installer regarding the wall
material or screws to be used.
• Sony is not responsible for accident or damage
caused by improper installation, insufficient wall
strength, improper screw installation, or natural
calamity, etc.

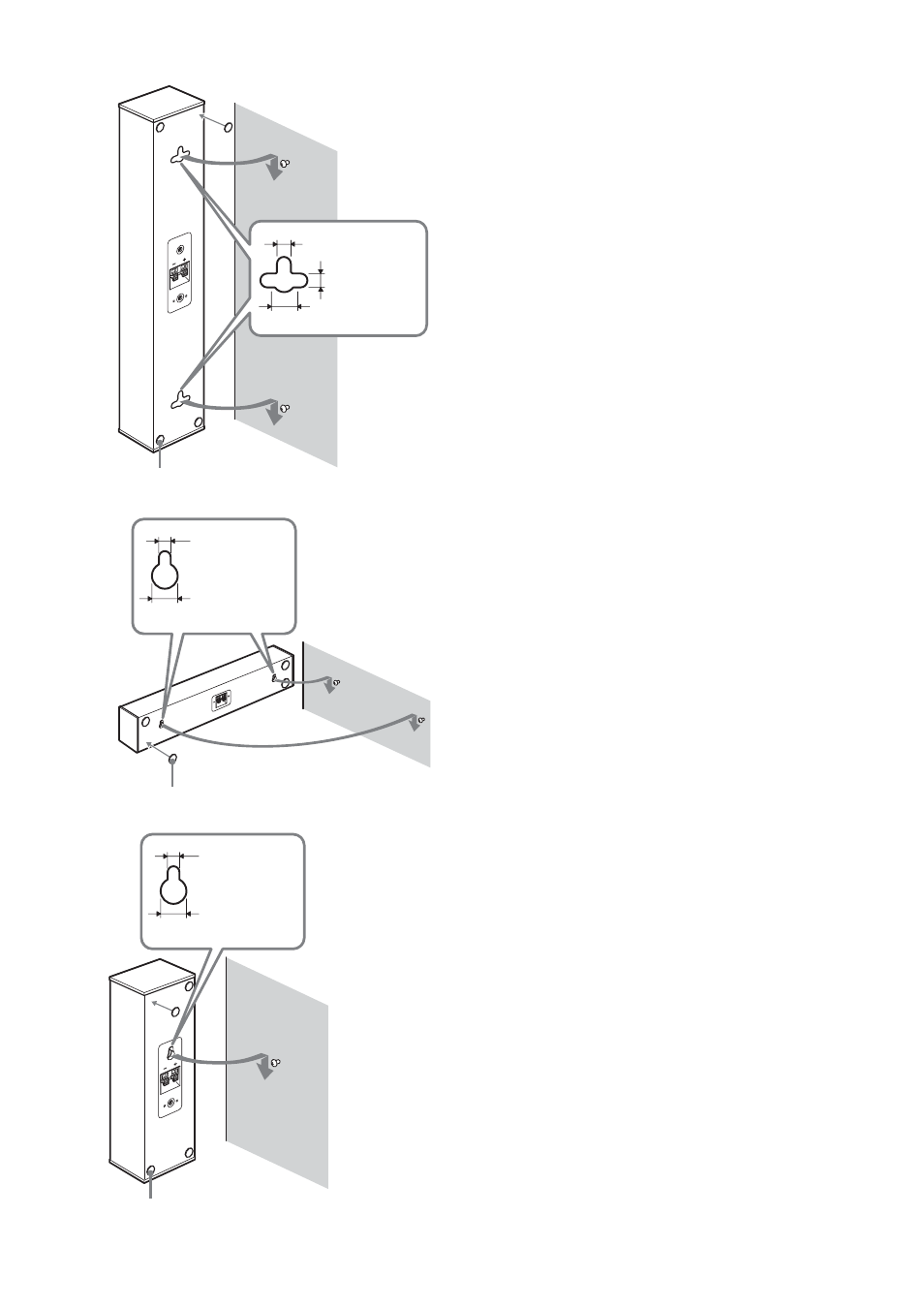

Hole on the back
of the speaker
1 4.6 mm
(
3
/
16
inch)
For the front speakers
2 10 mm
(
13
/
32
inch)
For the center speaker
4.6 mm
(
3
/
16
inch)
10 mm
(
13
/
32
inch)
2
1
1
Hole on the back
of the speaker
4.6 mm
(
3
/
16
inch)
10 mm
(
13
/
32
inch)
Hole on the back
of the speaker
Foot pad
Foot pad
For the surround speakers
Foot pad
