Instructions for the Installer

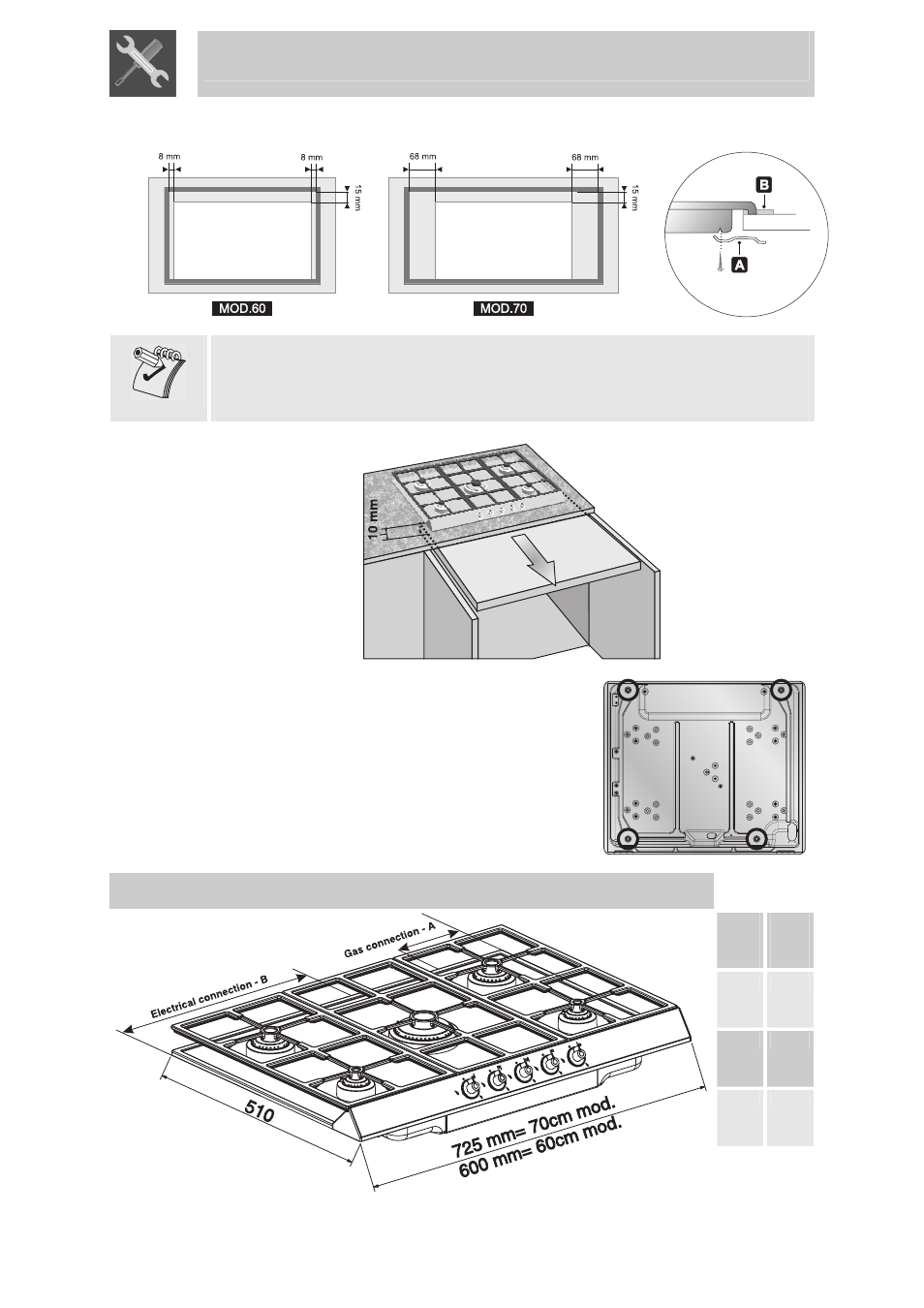

6
edge of the gasket B. The dimensions in the drawing below refer to the hole on the
inside edge of the gasket.
In case of installation on a hollow compartment with doors, a separating panel has to
be placed under the hob. Keep a minimum distance of
10 mm between the bottom of
the unit and the panel surface. The panel has to be easily removable to allow access
in the event of technical service.
See right for the precise holes to be used when
securing the hob to the top correctly using the
brackets.
Overall dimensions: location of gas and electrical connection points (all measures in
mm).
60
cm
mod.
70
cm
mod.
A B
14 6
35 30
