Instructions for the Installer
12
5.2 Adjusting for bottled gas

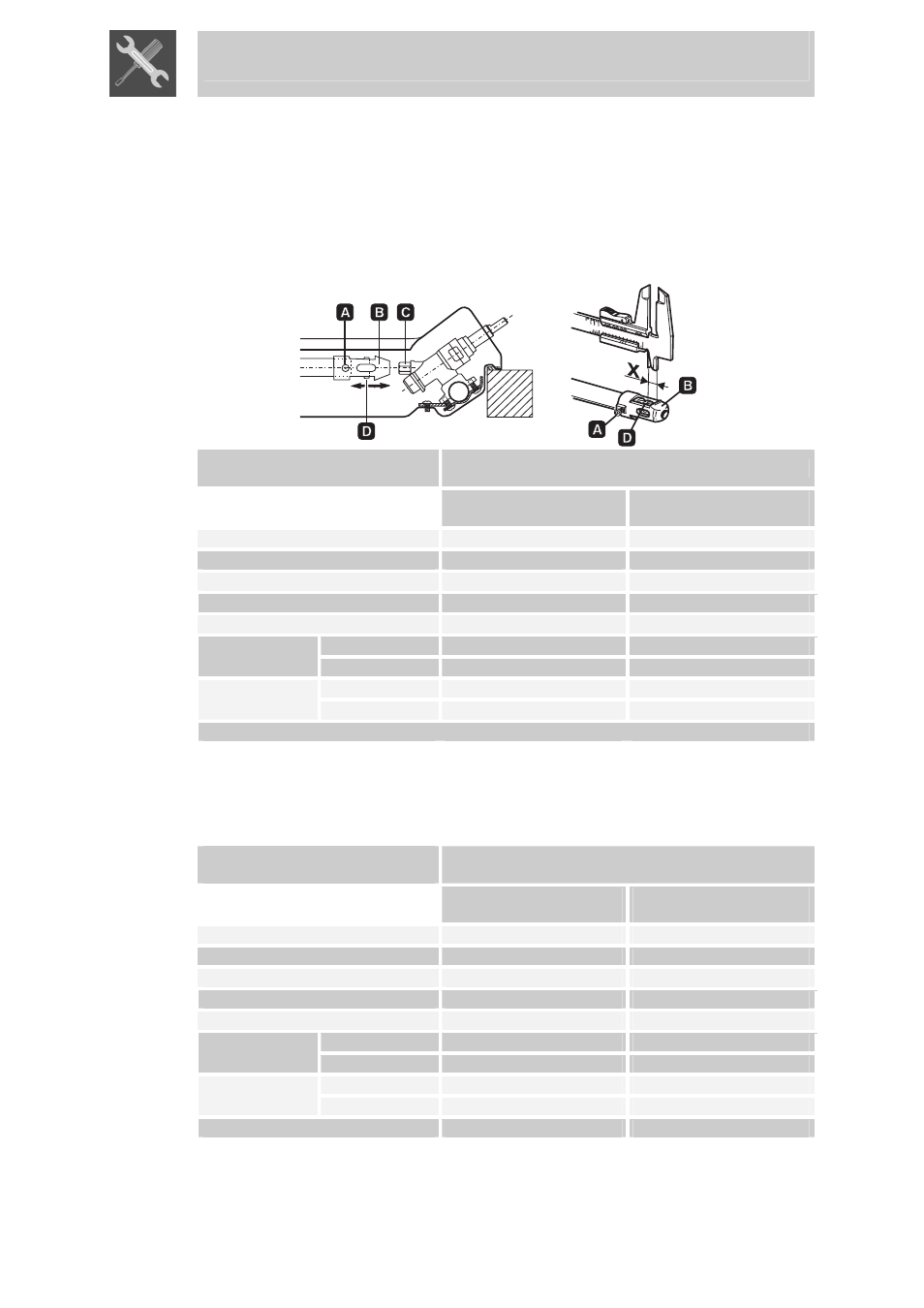

Undo the screw A and push the support B fully down. Remove the nozzle C with a
spanner and fit the suitable one following the instructions in the tables referring to the
type of gas to be used. The nozzle must not be tightened with a torque of more than 3
Nm. Return the support B to its original position, so that the nozzle C is perfectly
covered. Regulate the air flow by moving the Venturi pipe D until the distance “X” stated
in point "5.4 Adjusting the primary air flow” is obtained and secure it with the screw A.
When the adjustments are complete, restore the seals with wax or an equivalent
material.
Burner
ULPG – 2.75 kPa
Nominal gas
Consumption (MJ/h)
Injector
(mm)
Auxiliary 4.1 0.54
Semi rapid 6.0 0.68
Rapid (3) 12.6 0.95
Rapid (6) 11.2 0.85
Rapid (7) 11.2 0.85
Internal 3.6 0.50 WOK double
flame (8)
External 15.1 1.05
Internal 3.6 0.50 WOK double
flame (4)
External 14.4 0.98
WOK 15.1 1.05
5.3 Adjusting for natural gas
The appliance is tested with natural gas at the pressure of 1.0 kPa. To return the appliance
to the condition required to use this type of gas, proceed as described in point “5.2 Adjusting
for bottled gas” but select the nozzles and adjust the primary air flow for natural gas, as
indicated in the table below and in point “5.4 Adjusting the primary air flow”.
Burner
Natural gas – 1.0 kPa
Nominal gas
Consumption (MJ/h)
Injector
(mm)
Auxiliary 4.5 0.98
Semi rapid 6.1 1.10
Rapid (3) 12.6 1.60
Rapido (6) 11.9 1.55
Rapid (7) 10.8 1.45
Internal 3.6 0.85 WOK double
flame (8)
External 15.1 1.70
Internal 3.6 0.85 WOK double
flame (4)
External 14 1.65
WOK 15.1 1.70
