4 drive mounting, Drive mounting, Figure 3 – Seagate BARRACUDA ST3500410AS User Manual
Page 29: Mounting dimensions (1000 and 750gb models)
Barracuda 7200.12 Serial ATA Product Manual, Rev. H
23
3.4
Drive mounting
You can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the
bottom-mounting holes. See Figure 3 for drive mounting dimensions. Follow these important mounting precau-
tions when mounting the drive:
• Allow a minimum clearance of 0.030 inches (0.76mm) around the entire perimeter of the drive for cooling.
• Use only 6-32 UNC mounting screws.
• The screws should be inserted no more than 0.150 inch (3.81mm) into the bottom or side mounting holes.
• Do not overtighten the mounting screws (maximum torque: 6 inch-lb).
Recommended
case temperature
measurement location

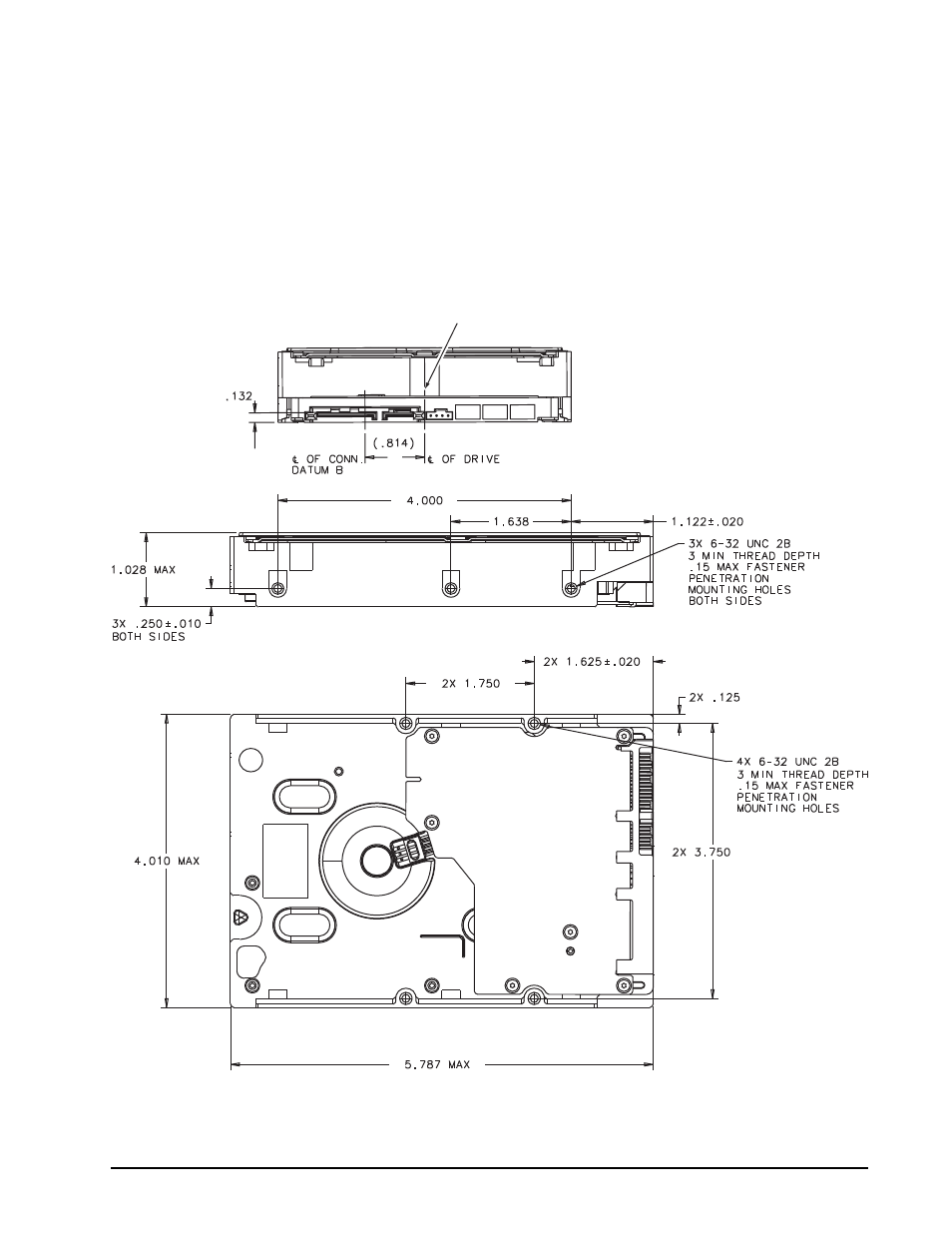

Figure 3. Mounting dimensions (1000 and 750GB models)
