Instructions for the installer
38
Figure 1
Figure 2
6.4.2 Possible combinations
The module can be combined with the barbecue trolley in two ways:

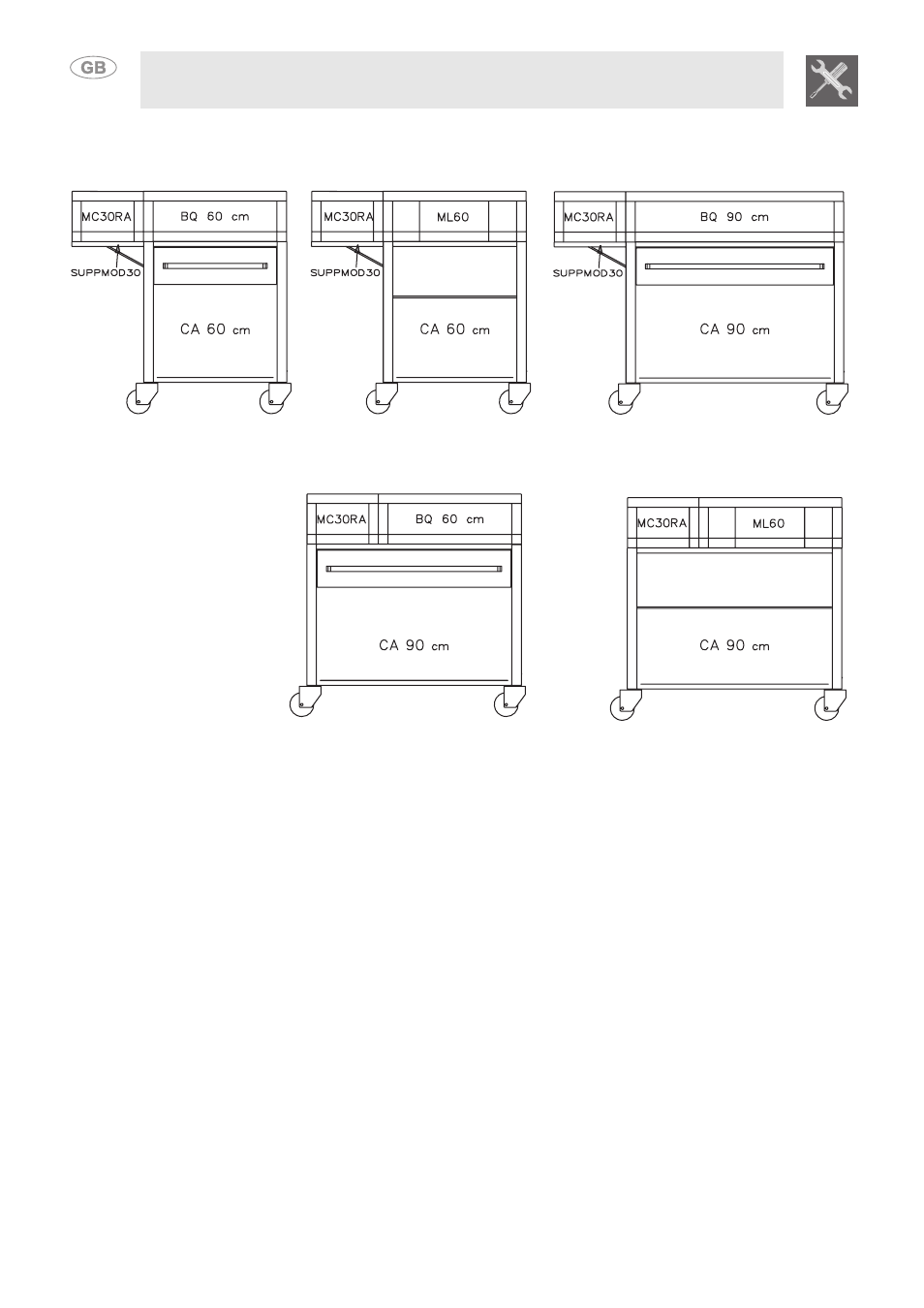

1. Using an external support, as illustrated in figure 1. This type of attachment can be used in the models
with a base of 60 cm and 90 cm.
2. The module can be directly integrated in the barbecue trolley. This type of attachment can be used
only in trolleys with a 90 cm base (see figure 2).
A plate is supplied with the module for fixing the two products side by side centrally on a 90 cm trolley.
