Chapter 7 Troubleshooting Switches 77
Sun Proprietary/Confidential: Internal Use Only
Using the Switch Event Grid
The Storage Automated Diagnostic Environment Switch Event Grid enables you to
sort switch events by component, category, or event type. The Storage Automated
Diagnostic Environment GUI displays an event grid that describes the severity of the
event, tells whether action is required, provides a description of the event, and gives
the recommended action. Refer to the Storage Automated Diagnostic Environment
User’s Guide for more information.
▼ To Use the Switch Event Grid
1. From the Storage Automated Diagnostic Environment Help menu, select the Event
Grid link.

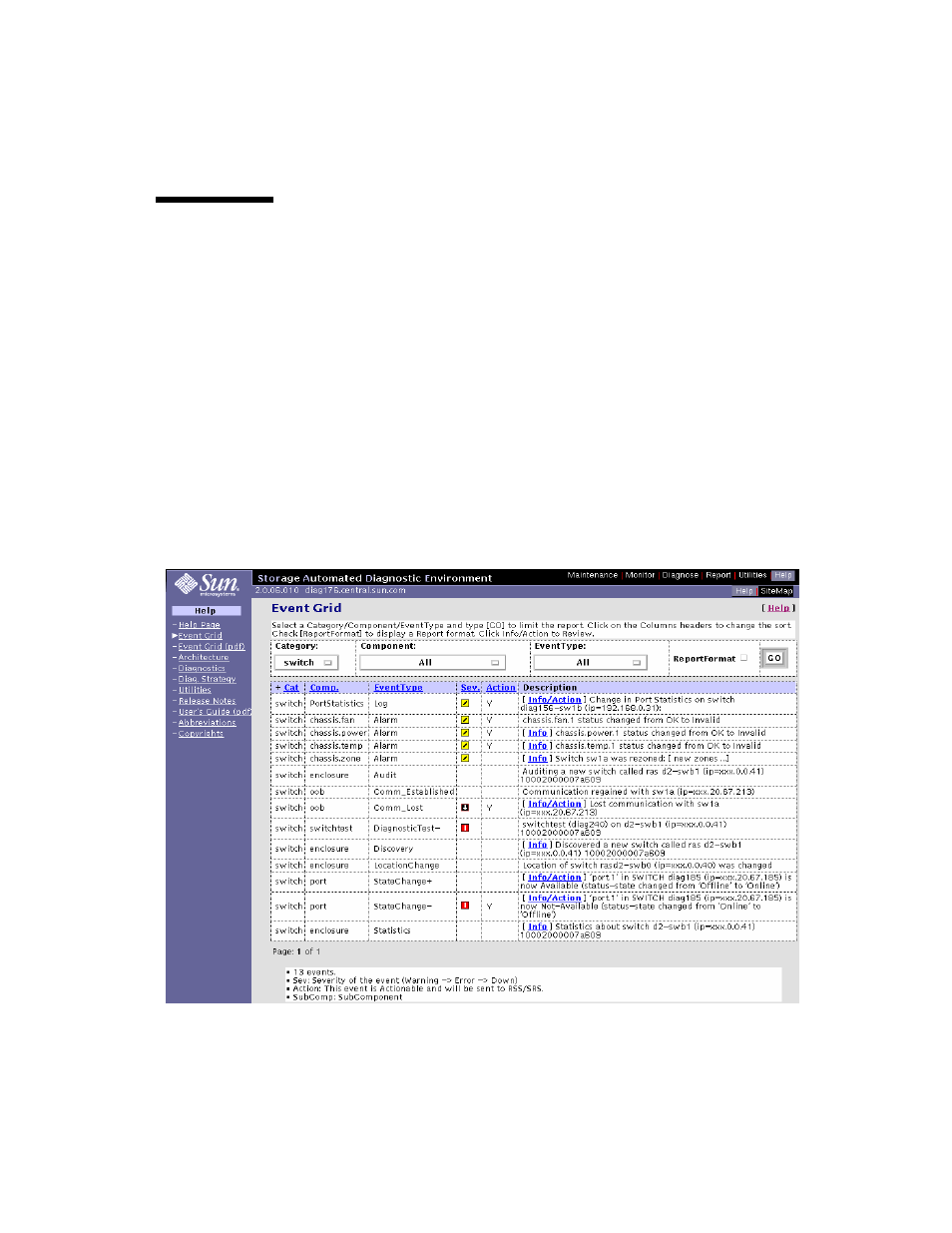

2. FIGURE 7-1 shows the Switch Event Grid, from which you can select related criteria
for the event you are troubleshooting.
FIGURE 7-1 Switch Event Grid
