Back Panel Features
The back panel of the virtualization engine contains the Sun StorEdge network FC
switch-8 or switch-16 switches, a socket for the AC power input, and various data
ports and LEDs.

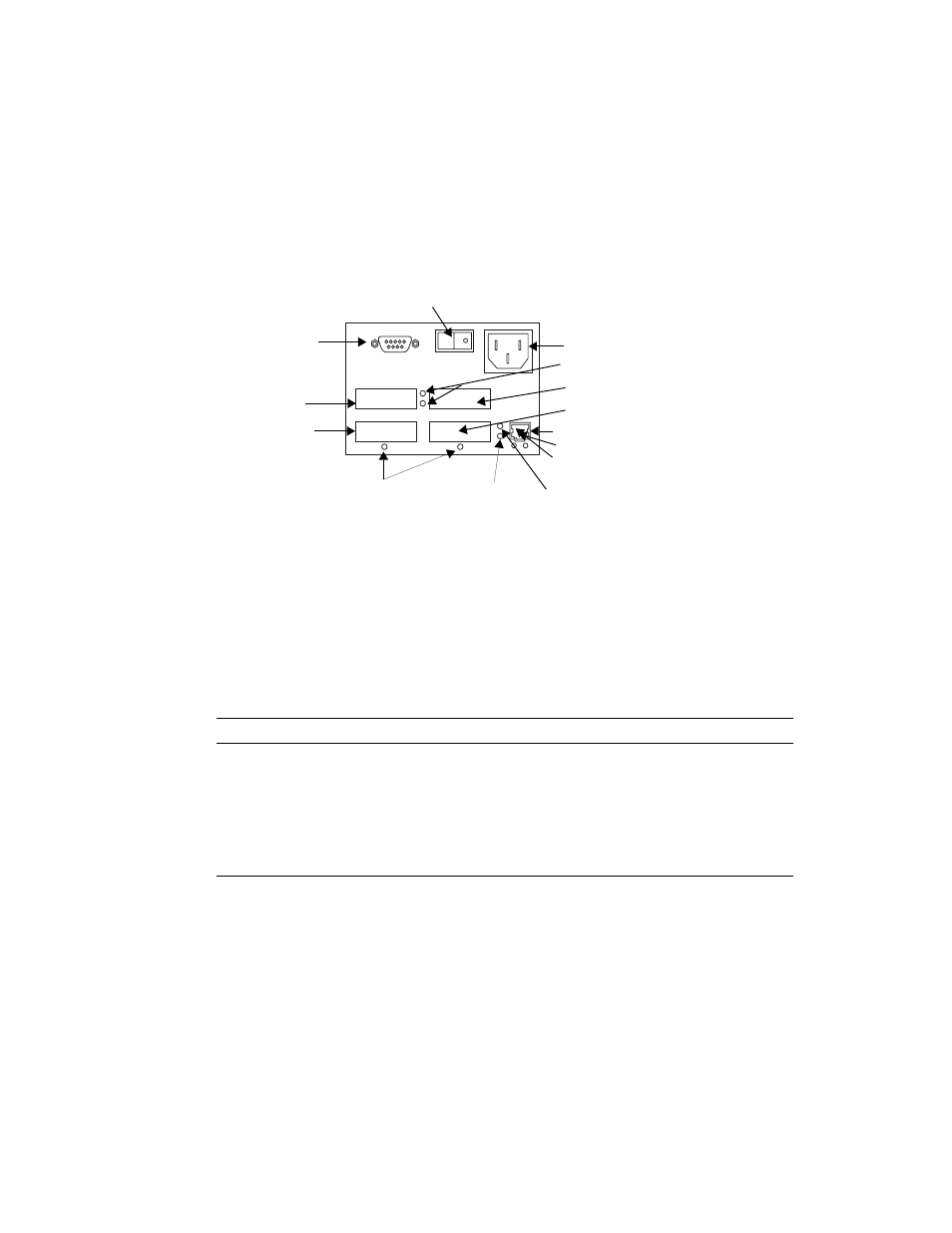

FIGURE 9-2
Virtualization Engine Back Panel
Ethernet Port LEDs
The Ethernet port LEDs indicate the speed, activity, and validity of the link, shown
in
.
TABLE 9-3
Speed, Activity, and Validity of the Link
LED
Color
State
Description
Speed
Amber
Solid on
Off
The link is 100Base-TX.
The link is 10Base-T.
Link Activity
Green
Solid on
Blink
A valid link is established.
Operations, including data activity,
are normal.
FC Port Host Side
Power Switch
Power Plug
RJ45 Ethernet Port
Speed LED
Rear Fault LED
Rear Status LED
Link/Activity LED
FC Port Device Side
Serial Port
Status Port LED
FC Port Host Side
FC Port Device Side
Status Port LED
