Assembly
2. Screw the cup onto the top of the
body.
3. Attach the air hose to the spray gun
with a 1 ⁄
4
" NPT quick connect fitting
(not included).
4. Attach the spray gun to an air hose
regulated between 29 and 50 PSI.
Note: For the best results, use a hose
that will be dedicated for spray use
only. Do not use a hose that has been
used with an in-line oiler or other
possible contaminant.
1. Fluid Control: Controls the volume
of material that travels through the
fluid tip.
2. Pattern Control: Adjusts the spray
pattern from a round pattern to a
wide fan.
3. Air Flow Control: Controls the fluid
pressure inside the spray gun.
4. Atomizing Cap: Controls the spray
pattern from vertical to horizontal.
5. Trigger: Two stage trigger. Stage
one only releases compressed air for
blowing off the work piece. Stage two
sprays material.
6. Material Cup: Holds the paint to be
sprayed.
7. Regulator/Gauge: Regulates inlet air
pressure to the spray gun. It can be
attached directly to the gun for on-
the-spot air adjustments or directly
from the air source.
Note: DO NOT attach to an unregu-
lated air source that exceeds 120 PSI.

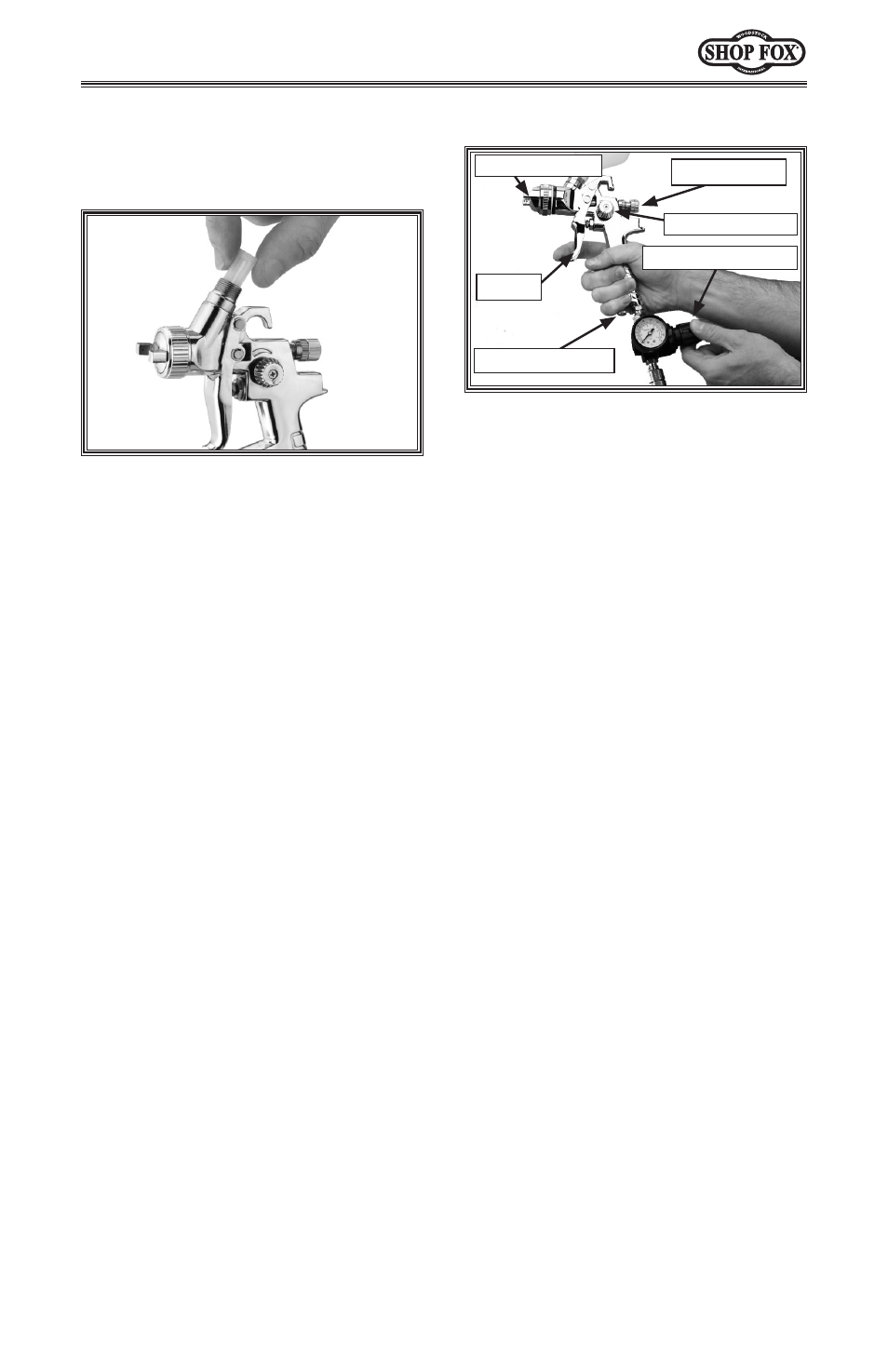

Figure 4. Controls.
Controls
Fluid Control
Pattern Control
Atomizing Cap
Trigger
Air Flow Control
Regulator Control
Figure 3. Installing filter.
1. Insert the filter into the gun body
(see Figure 3).
