Model W1796/W1797 2-Gun Spray Set
-10-
The atomizing cap needs to be adjusted
for horizontal or vertical spraying
patterns. Spraying in the wrong direction
may lead to material build up on the
atomizing cap horn. Many performance
problems are caused by clogged
atomizing holes on the atomizing cap
horns (see
Cleaning on Page 11).
Rotating the pattern adjustment control
in
Figure 8 will give you a range between
the two patterns in Figure 9.
Figure 9. Fan adjustment.
Atomizing Cap and Fan
Adjustments

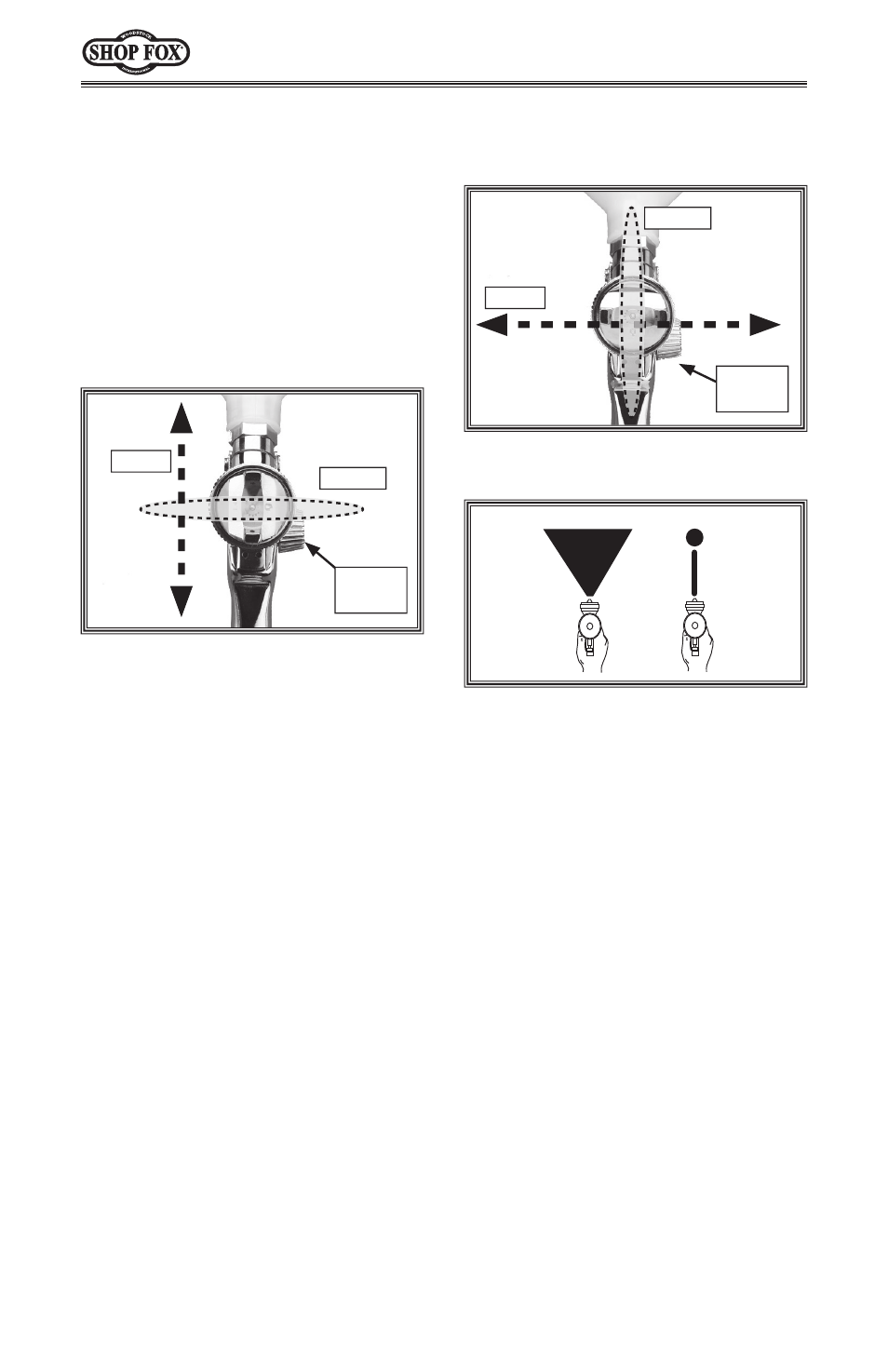

Figure 7. Set up for vertical stroke direc-
tion with horizontal fan pattern.
Figure 8. Set up for horizontal spray
stroke with vertical fan pattern.
Pattern
Stroke
Pattern
Control
Stroke
Pattern
Control
Pattern
