Model W1796/W1797 2-Gun Spray Set

-12-

Lubrication

Lubricate the following areas with
spray gun lube after cleaning:

A. Atomizing Cap Threads
B. Air Valve Packing
C. Trigger Pin
D. Air Flow Control Valve
E. Pattern Control
F. Fluid Control Knob

After each cleaning, apply a thin film
of petroleum jelly to the needle spring
before reassembling.

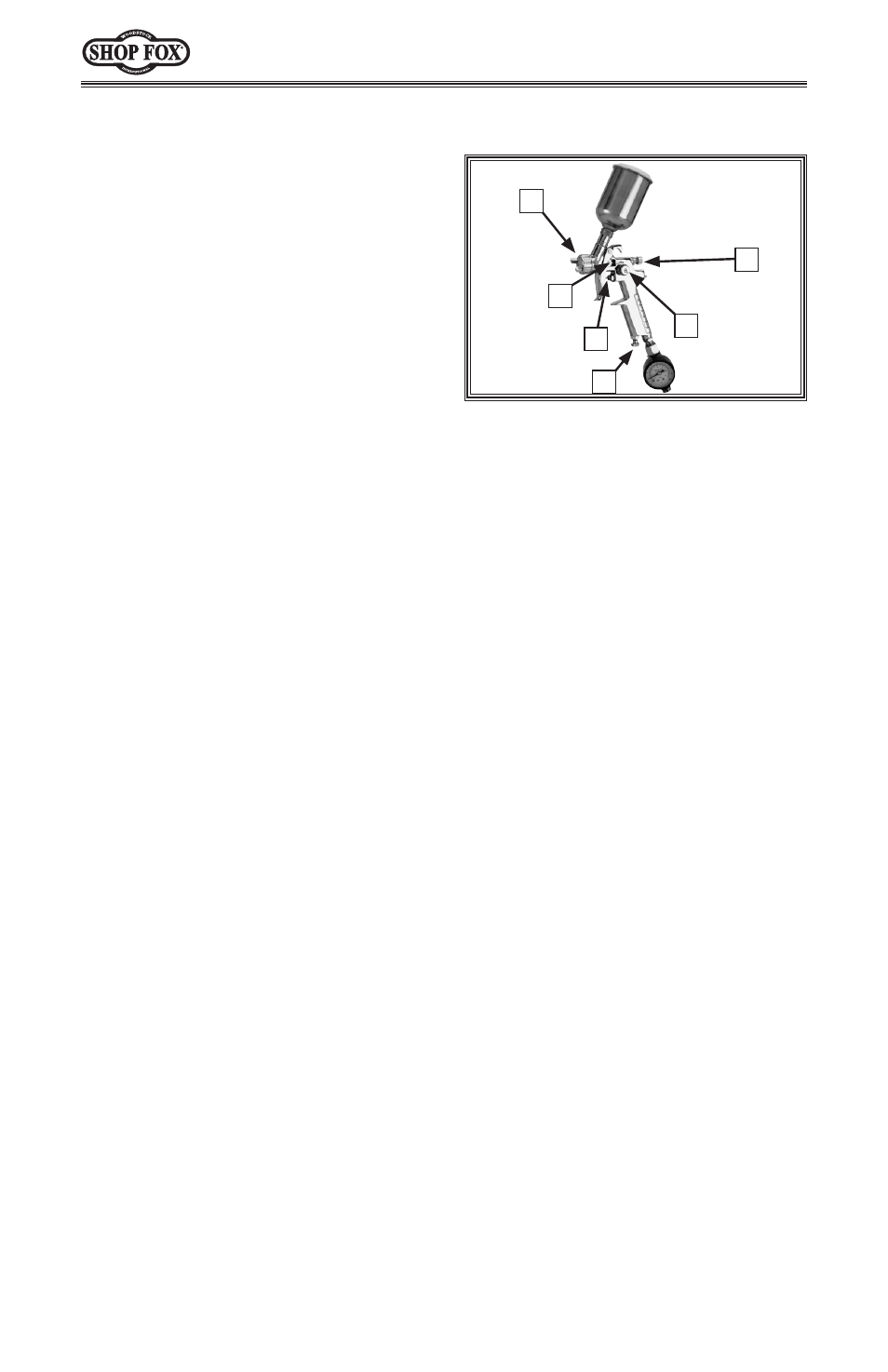

Figure 11. Lubrication points.

A

B

C

D

E

F
