ECM-3711 Series

68 ECM-3711 Series User’s Manual

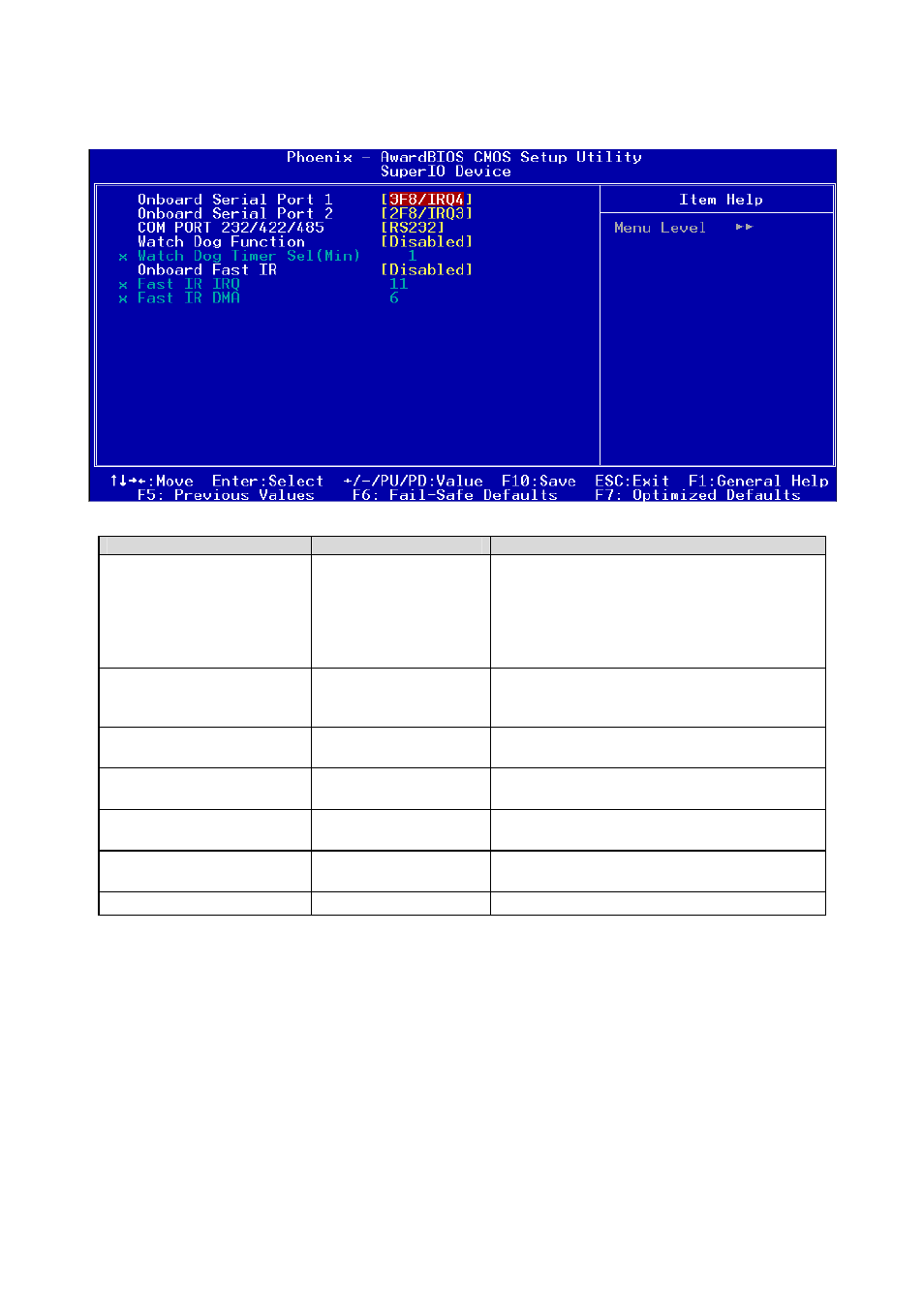

3.5.4.3 Super

IO

Device

Item

Options

Description

Onboard Serial Port 1
Onboard Serial Port 2

Disable

3F8/IRQ4
2F8/IRQ3

3E8/IRQ4
2E8/IRQ3

AUTO

Select an address and corresponding interrupt
for the first and second serial ports.

COM Port 232/422/485

RS232
RS422
RS485

Select COM port type.

Watch Dog Function:

Enabled

Disabled

This item is to set the Watch Dog function
Enabled/Disabled.

Watch Dog Timer :

1

This item is to set the timer of Watch Dog
function.

Onboard Fast IR:

Enabled

Disabled

This item is to set the Onboard Fast IR function
Enabled/ Disabled.

Fast IR IRQ:

11, 5

3, 4

Select a corresponding interrupt for Fast IR.

Fast IR DMA:

6, 5

Select a DMA channel for Fast IR.
