26 GB
R
SPEAKER
L
FRONT
CENTER
SURROUND
ANALOG IN
USB
R
L
OPTICAL IN
1 ANALOG IN (L/R) jacks
Connect to the audio output of a TV,
VCR, etc.
2 USB jack
Connect to the computer.

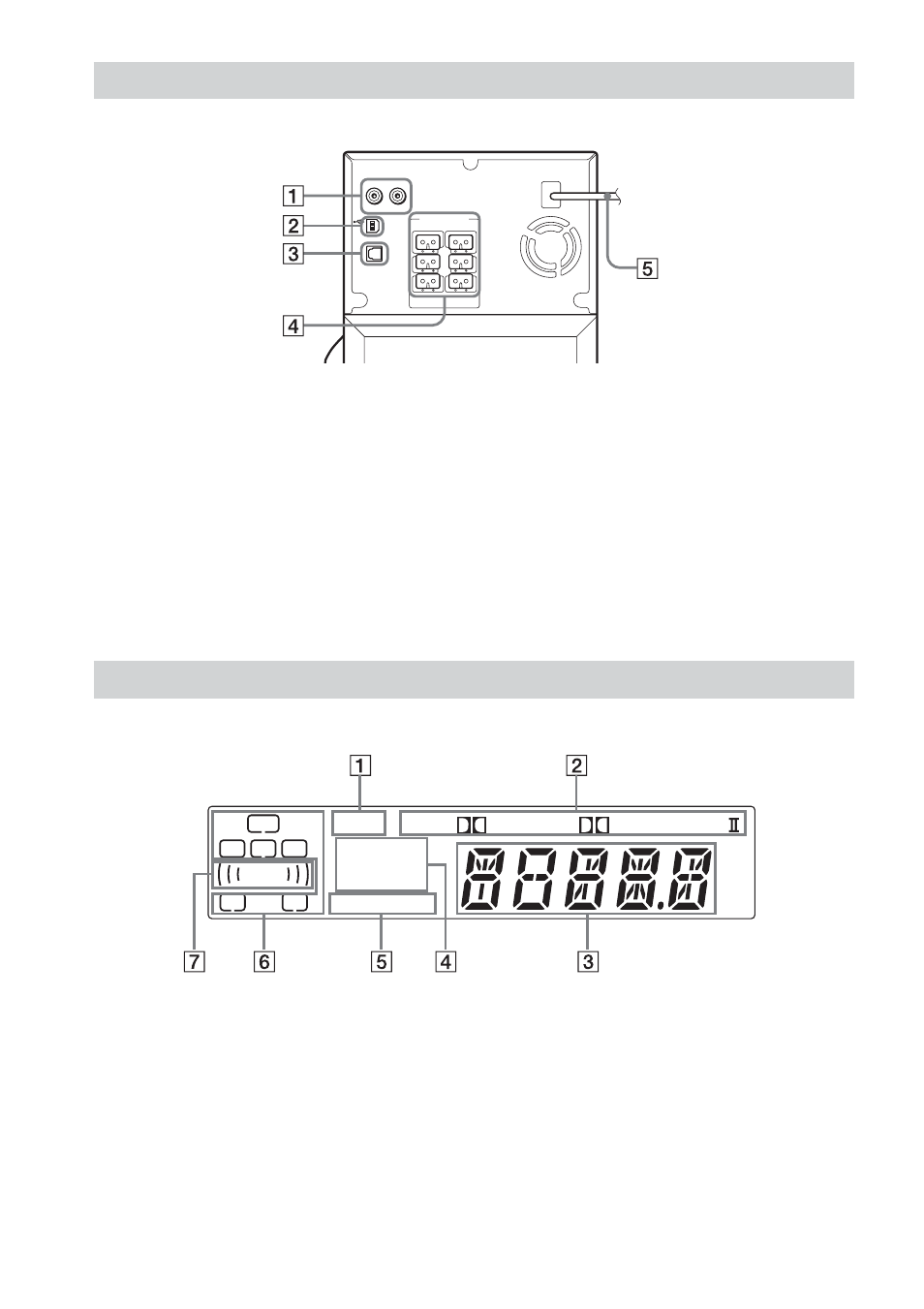

Subwoofer (Rear Panel)
3 OPTICAL IN jack
Connect to the DIGITAL OUT
(OPTICAL IN) jack of a DVD player,
etc.
4 SPEAKER jacks
Connect to the supplied satellite
speakers.
5 AC power cord (mains lead)
Display
PRO DIGITAL DTS DSP
USB
OPTICAL
ANALOG
2CH PCM
SW LOGIC
dB
m
f t
R C
L.F.E.
L
SR SL
1 Lights up when DSP (Digital Signal
Processor) technology is activated.
2 Displays the current decoding format.
3 Displays the volume level, sound field,
etc.
4 Displays the input source.
5 Displays the signal of 2CH or PCM.
6 Playback channel indicators
7 Displays whether the disc being played
back contains a LFE (Low Frequently
Effect) channel.
