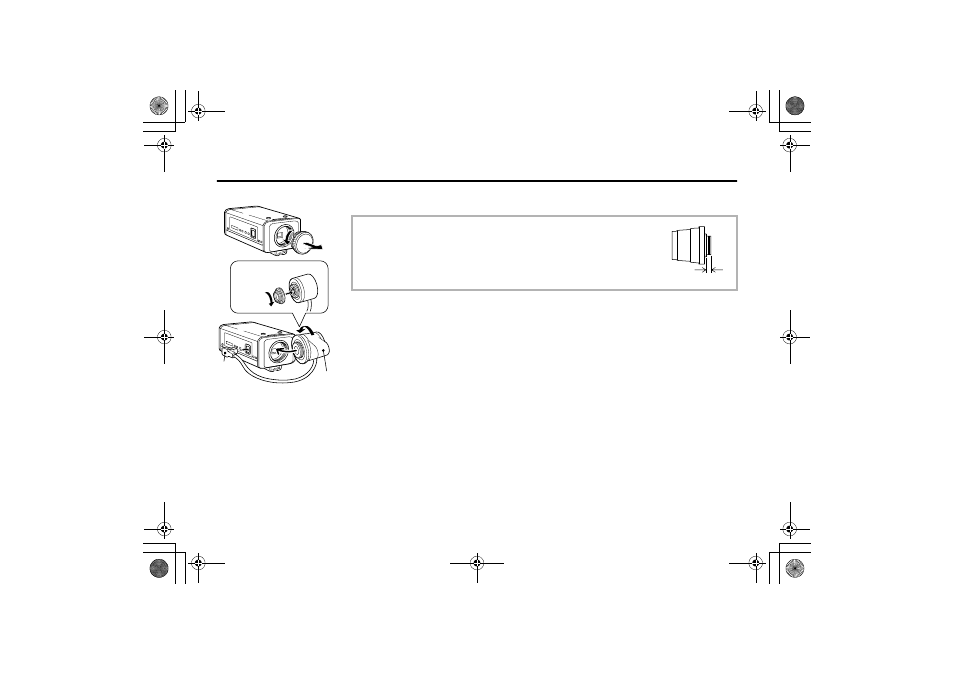

MOUNTING THE LENS
1
2
C mount type lens
CS mount
type lens
2
3
Please use a DC type auto-iris lens (sold separately).
1
Remove the lens mount cap from the camera.
2
Install the auto-iris lens.
CS mount type lens
Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.
C mount type lens
To allow for flange-back adjustment, install the C-mount adaptor (option) on the lens mount,
then carefully align the lens mount with the camera opening and turn the lens slowly to install
it.
3
Connect the lens plug to the lens iris output connector (LENS) on the side of the
camera.
Check the lens mount
Do not use a lens if the length “L” is more than 5 mm. That may damage
the camera and prevent proper installation.
L
