44

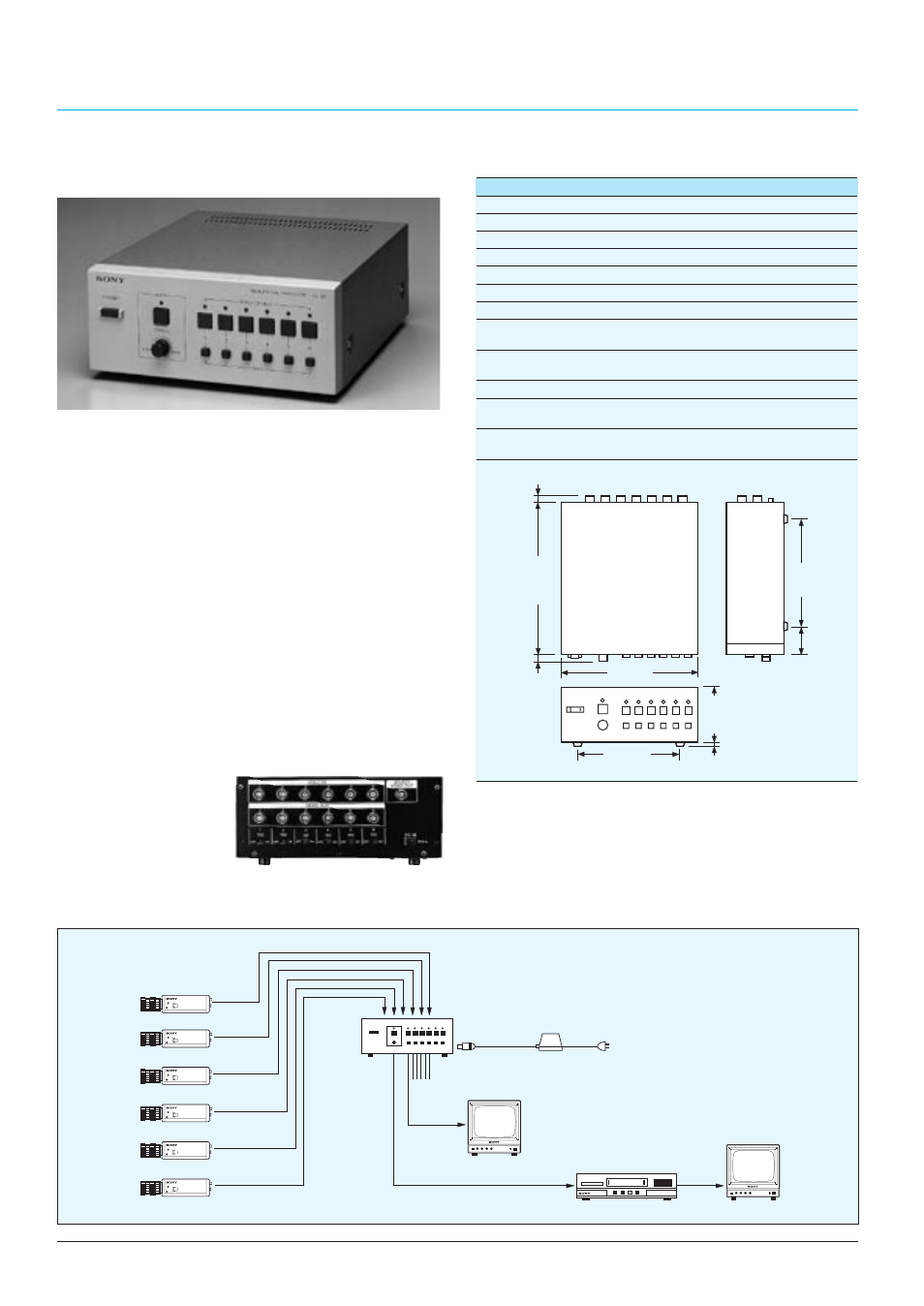

SWITCHERS
YS-S6
General
Power requirements:
DC 9 V
Power consumption:
Approx. 2.3 W
Operating temperature:
0˚C to 40˚C (32˚F to 104˚F)
Storage temperature:
-20˚C to 60˚C (-4˚F to 140˚F)
Mass:
Approx. 2.1 kg (4 lb 10 oz)
Input signals
VIDEO INPUT 1 to 6:
BNC type, 1.0 Vp-p, 75
Ω
, unbalanced,
sync negative
DC IN:
DC jack type
DC 9 V (DC 7 V to 15 V is allowed)
Output signals
VIDEO OUTPUT 1 to 6:
BNC type, loop-through output of VIDEO
INPUT, 75
Ω
termination ON/OFF switchable
SELECT VIDEO OUT:
BNC type, 1.0 Vp-p, 75
Ω
, unbalanced,
sync negative
Dimensions:
Unit: mm (inches)
NOTE: AC Adaptor is an option.
Specifications
6-channel Sequential Switcher
YS-S6
•Compact-size sequential switcher for small surveillance
systems
•Six VIDEO INPUTs with loop-through capability
•The pictures from up to six video cameras can be monitored
sequentially on a monitor via the SELECT VIDEO OUT
•The use of DWELL dial enables various dwell time
(displayed time) settings per each monitor from 1
second to 30 seconds
•Both Auto/Manual switching modes are available
Auto:
Pressing the AUTO button provides automatic
sequential monitoring of all camera inputs
Manual: The INPUT SELECT buttons allow users
manually select a specific camera input and
view it continuously
•Pictures from connected camera which don’t have to
be monitored can be skipped by the use of SKIP
buttons 1 through 6
•Accepts also NTSC/EIA signal
Supplied Accessory
Operation manual (1)
Rear Panel
YS-S6 Typical System
Video Camera 1
Time Lapse VCR
Video Camera 2
Video Camera 3
Video Camera 4
Video Camera 5
Video Camera 6
Video Monitor
Video IN
1 to 6
VIDEO OUT 1 to 6
YS-S6
Video Monitor
SELECT
VIDEO OUT
AC Adaptor
DC INPUT
10 (
13
/
32
)
246 (9
3
/
4
)
9.5 (
3
/
8
)
)
220 (8
3
/
4
)
162 (6
1
/
2
)
8 (
11
/
32
88 (3
1
/
2
)
49 (1
15
/
16
)
175 (7)
