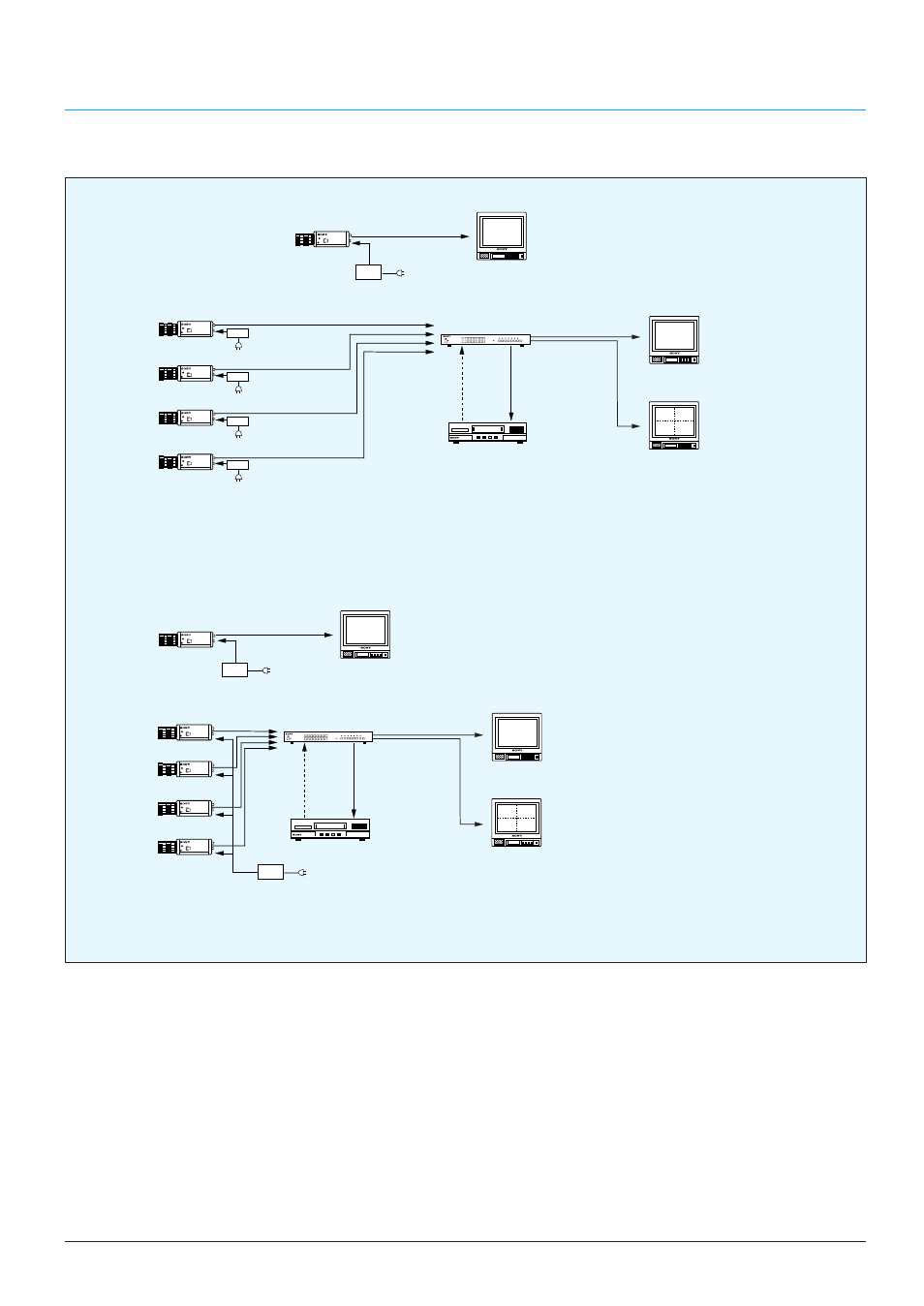

BLACK & WHITE VIDEO CAMERAS
Multiplexer
Multiplexer
EXT
TIMING IN
(Coaxial cable)
SWITCH
OUT
VIDEO
IN
Time Lapse VCR
VIDEO OUT
(Coaxial cable)
VIDEO OUT
(Coaxial cable)
VIDEO OUT
(Coaxial cable)
VIDEO OUT
(Coaxial cable)
AC outlet
B/W Video Monitor
B/W Video Monitor
AC outlet
DC12 V
power supply
DC12 V
VIDEO OUT
(Coaxial cable)
B/W Video Monitor
DC12 V
power supply
DC12 V
power supply
DC12 V
power supply
DC12 V
power supply
AC outlet
AC outlet
AC outlet
VIDEO OUT
B/W Video Monitor
AC outlet
AC24 V
power supply
EXT
TIMING IN
(Coaxial cable)
SWITCH
OUT
VIDEO
IN
Time Lapse VCR
B/W Video Monitor
B/W Video Monitor
AC outlet
AC24 V
power supply
MONITOR OUT
(Coaxial cable)
MONITOR OUT
(Coaxial cable)
SPT-M304CE/M124CE
2.Multiple camera operation
1.Single camera operation
SPT-M122CE
