Bottom
www
.samsungcctv
.com

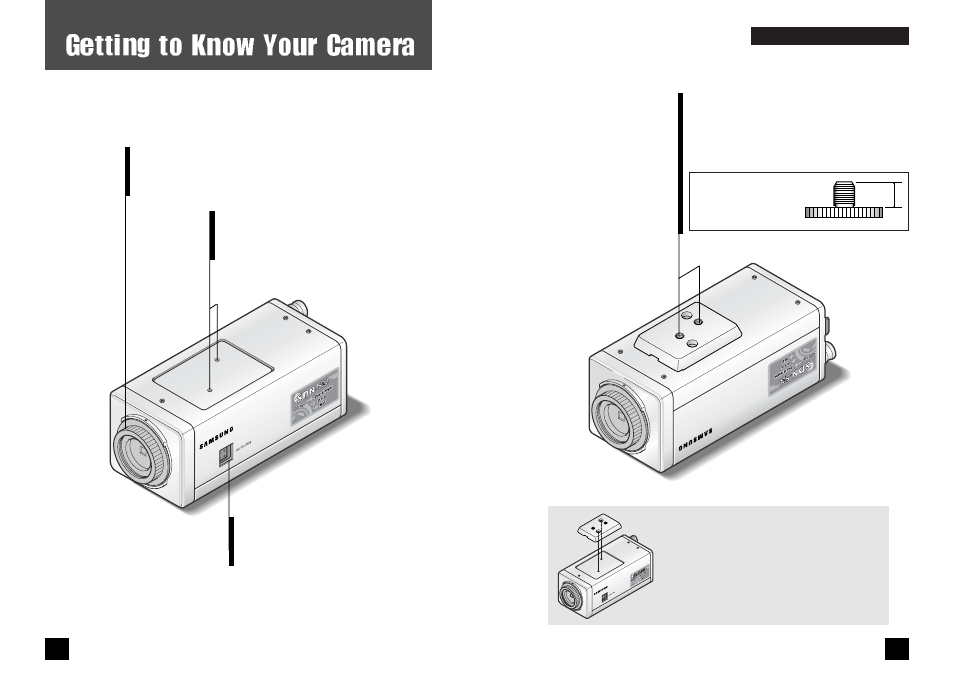

Tripod Mounting Hole
Used to install the camera on an optional
tripod. The tripod must be equipped with
the screw specified as shown below.
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
L
G G E ET TT TIIN NG G T TO O K K N NO OW W Y Y O OU UR R C C A AM ME ER RA A
You can remove and install this bracket
on the top of the camera. You must use
the supplied screw or the equivalent
(within 4mm). If not, the bracket may
not be fixed properly.
www
.samsungcctv
.com
Front
C Mount Adapter.
Attach the C-Mount Adapter when using the
C-Mount Lens.
Tripod Mounting Bracket Screw Hole.
Used to fix the Tripod mounting
bracket on the top of the camera.
Auto Iris Lens Connector.
Used to connect the Auto iris
lens plug.
11
COLOR CCD CAMERA
10
COLOR CCD CAMERA
