OPTIMIZER

equalizers in modern recording technology. The Optimizer

has an extremely broad frequency response from 0Hz to

200kHz that guaranties that the Optimizer´s filters operate

with maximum tonal flexibility and without technically

induced limitations.

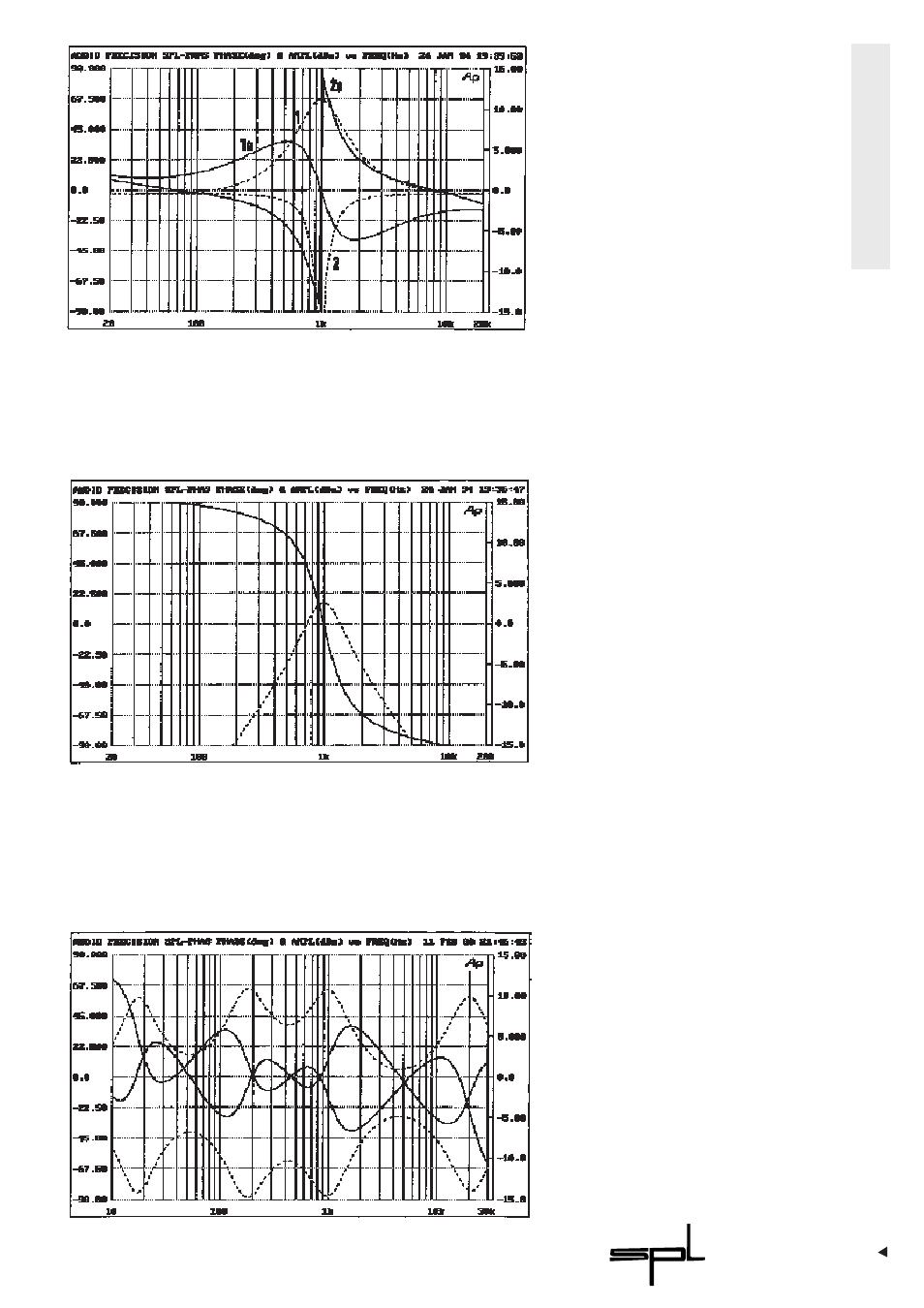

Fig. 17:

Curve 1:
Frequency response; 1kHz
Curve 1a :
Phase response

Curve 2:
Frequency response;
Notch 1kHz
Curve 2a :
Phase response

Measurements at Q = 1.0;
Boost/Cut = +12dB

Fig. 18:

Band-pass

Dotted line:
Frequency response

Solid line:
Phase response

Messungen bei Q = 1.5;
Frequenz = 1kHz;
Boost/Cut = +12dB

Fig. 19:

Four filter stages in series

Dotted line:
Frequency response

Solid line:
Phase response

Boost/Cut = 12dB
