Custom-Cut Baffle Adjustment
Mounting Slot Selected Mounting Hardware Location
Slot “A” Hole 1 Hole 2 Hole 3 Hole 4
Height (inches) 3-3/4” 4-1/4” 4-3/4” 5-1/4”
Slot “B” Hole 2 Hole 3 Hole 4
Height (inches) 3-1/2” 4” 4-1/2”

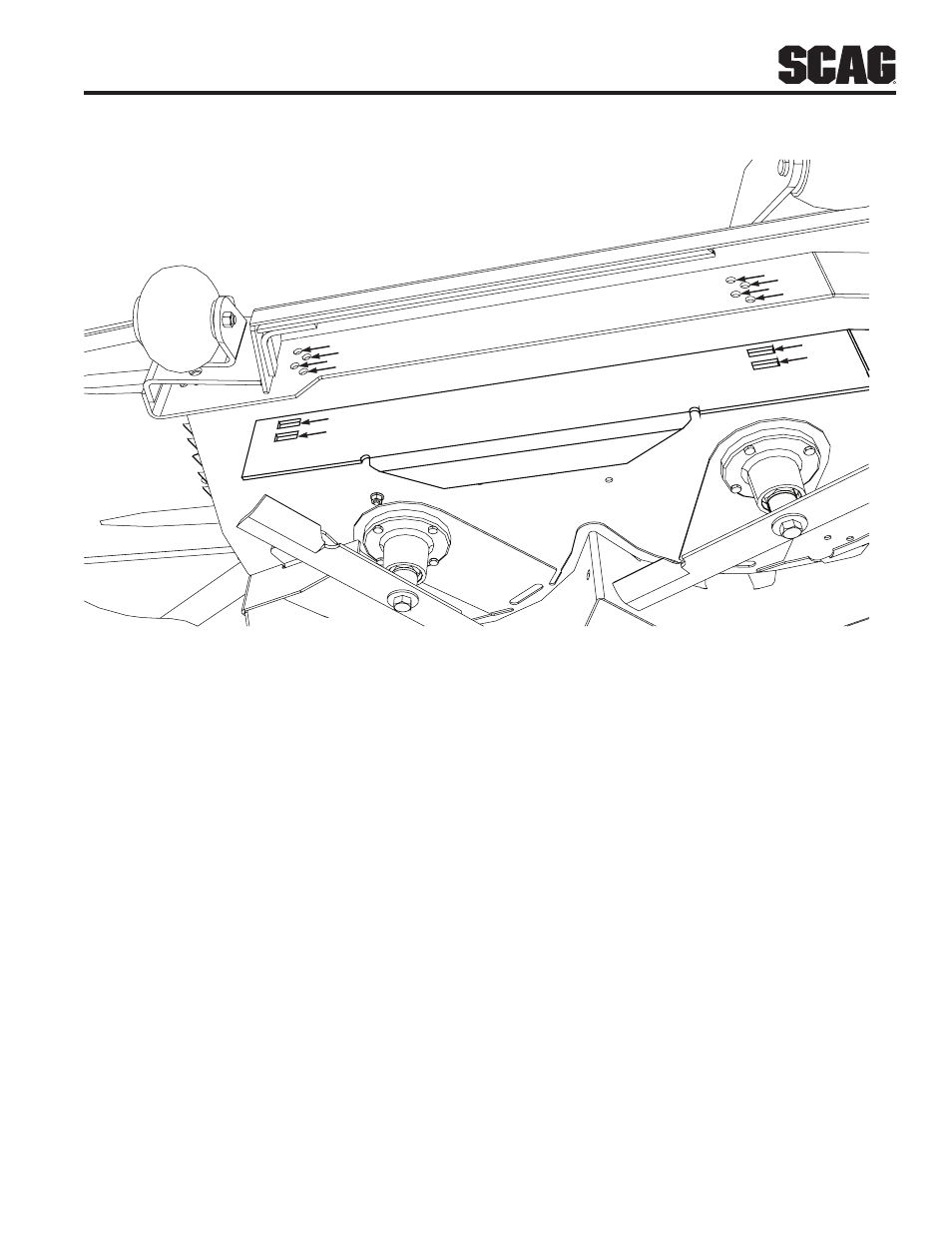

Custom-Cut Baffle Adjustment Figure 6-7.
