Sony RDR-HXD860 - Manual (Page 118)

C:\2886042111HXD860CEK\01GB-
HXD860CEK\130ADD.fm
master page=left
specdef 20060621
RDR-HXD860
2-886-042-11(1)
118
A HDMI OUT (high-definition
multimedia interface out) jack (13, 16)
B AERIAL IN/OUT jacks (12)
C COMPONENT VIDEO OUT
(Y, P B /C B , P R /C R ) jacks (13)
D LINE 3 jack (22)
E AC IN terminal (17)
F LINE 1 – TV jack (13)
G LINE 2 OUT (S VIDEO) jack (13)
H LINE 2 OUT (R-AUDIO-L/VIDEO)
jacks (13, 16)
I DIGITAL OUT (COAXIAL) jack (16)

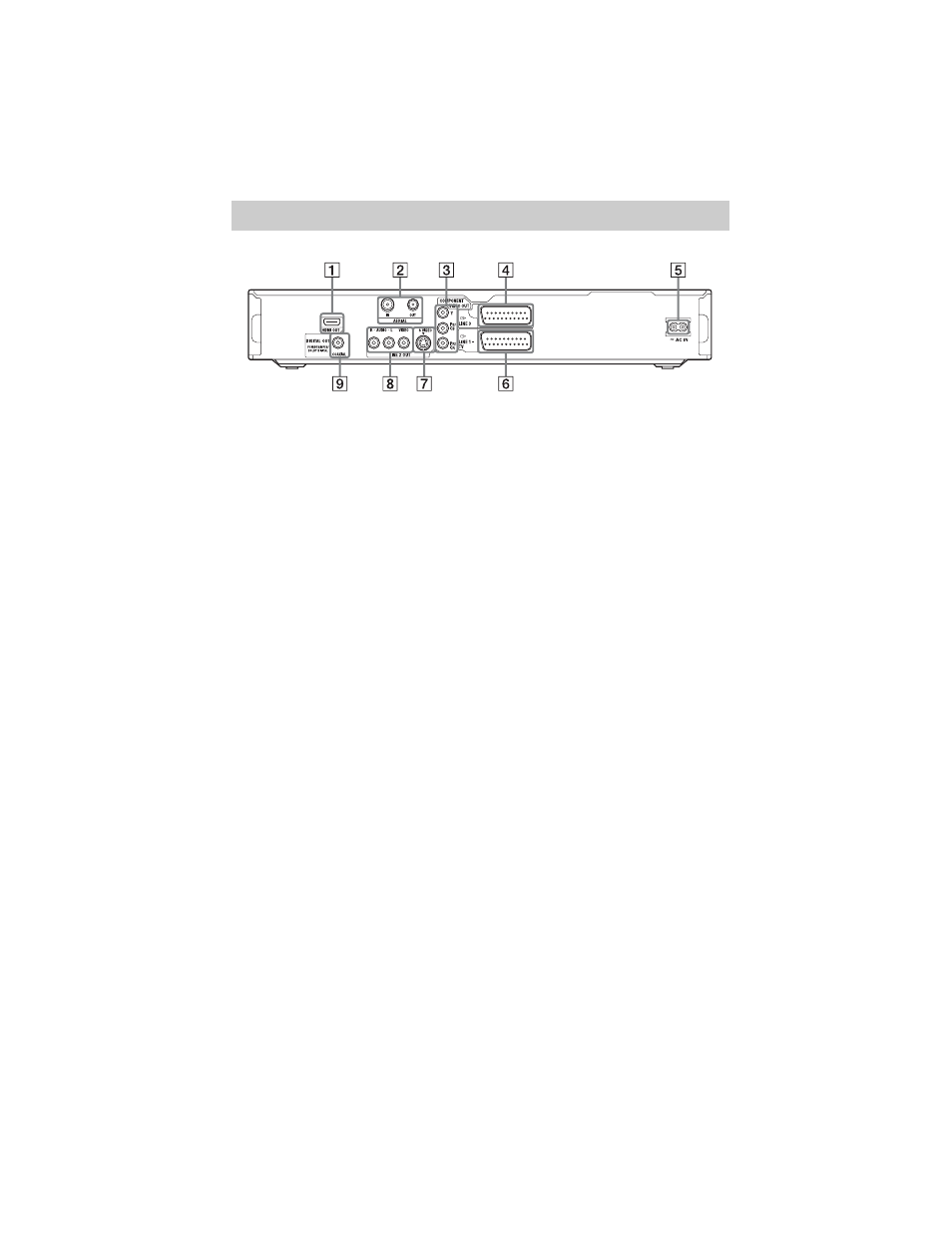

Rear panel
