O N N E C T I O N S
Connection to an
Audio System (Dolby digital, MPEG2 or DTS
Amplifier)
1
Using a coaxial cable (not included), connect the
DIGIT
AL AUDIO OUT (COAXIAL)
jack on the
rear of the DVD-VCR to the
DIGIT
AL AUDIO IN
(COAXIAL)
jack of the
Amplifier.
3
T
urn on the DVD-VCR, TV, and Amplifier.
4
Press the input select button of the
Amplifier to
select external input in order to hear sound from
the DVD-VCR.
Refer to your Amplifier's user manual to set the
Amplifier's audio input.
Notes
- When you connect the DVD-VCR to DTS Amplifier and play a DTS disc, set the DTS to On in Audio
Setup menu. If it is set to Off, sound will not be heard, or there will be a loud sound.
- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage
to the speakers and your ears.
-
Please set the audio in the menu screen according to the Amplifier. (See pages 59 to 60)
- The position of jacks may vary depending on the Amplifier.
Please refer to the user's manual of the Amplifier.
2
Using the video signal cable(s), connect the
S-VIDEO or COMPONENT
OUT
jacks on the
rear of the DVD-VCR to the
S-VIDEO or
COMPONENT
IN
jack of your
TV as described on
pages 15 to 18.

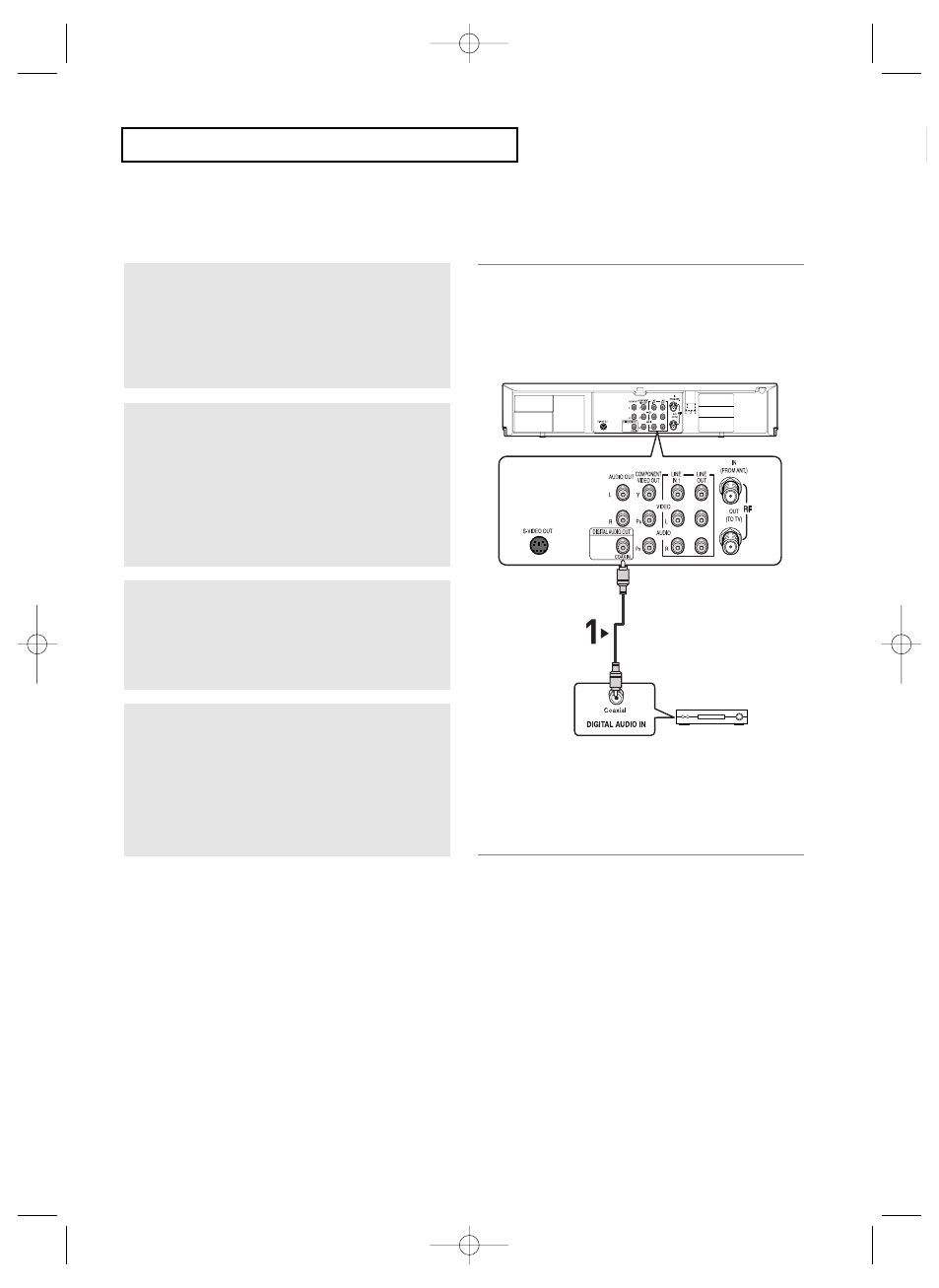

Dolby digital or
DTS Amp.
Coaxial Cable
(not included)
