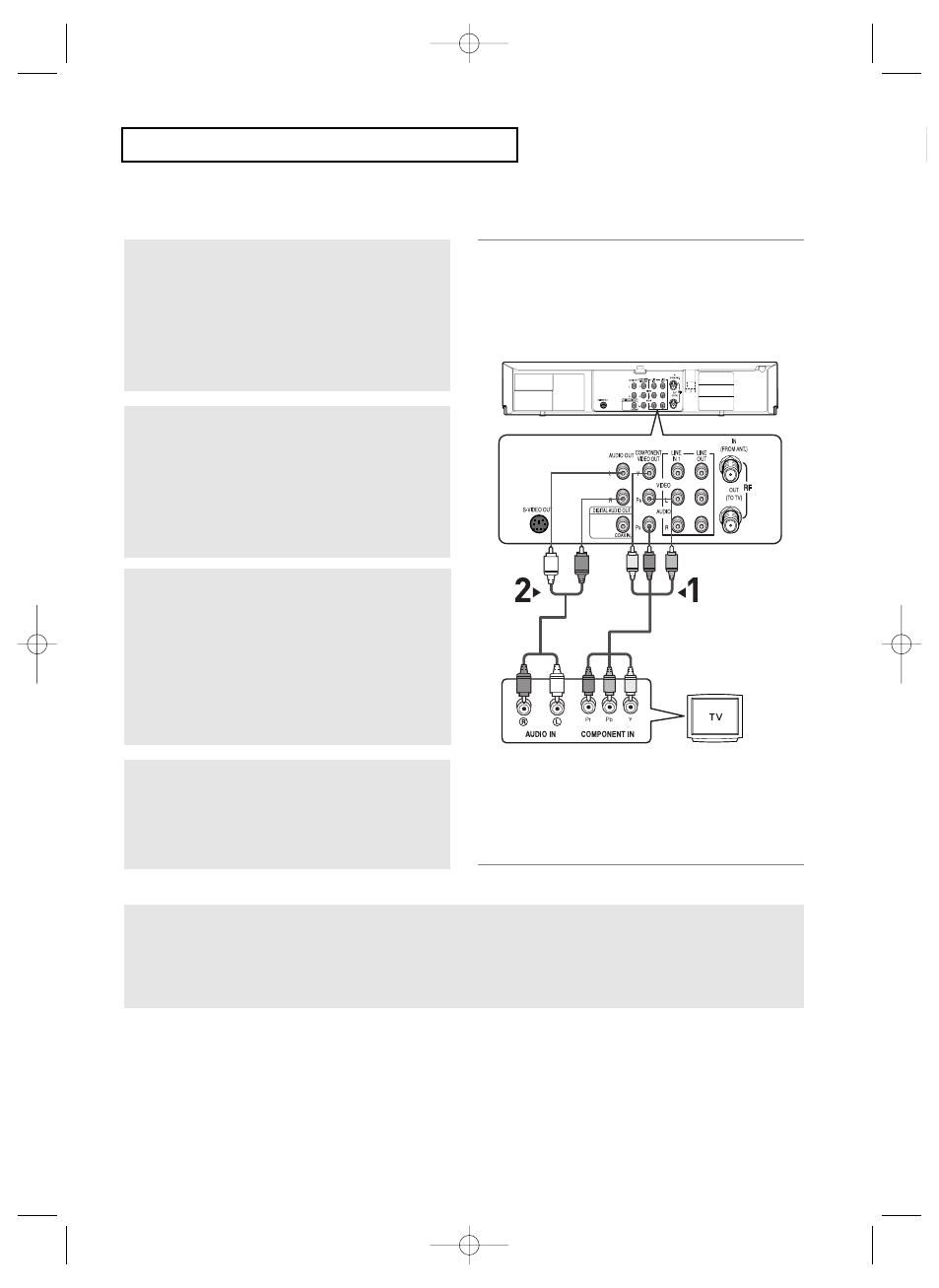

Connection to a TV (Progressive)
1
Using component video cables (not included),
connect the COMPONENT VIDEO OUT jack on
the rear of the DVD-VCR to the COMPONENT IN
jack of your TV.
2
Using the audio cables, connect from the AUDIO
OUT or LINE OUT AUDIO (red and white) jacks
on the rear of the DVD-VCR to the AUDIO (red
and white) IN jacks of your TV.
Turn on the DVD-VCR and TV.
4
Press the input selector on your TV remote
control until the Component signal from the
DVD-VCR appears on the TV screen.
3
W ith the unit in stop mode, set the Alt video
output to Component: Progressive in the Display
Setup menu (see pages
61 ~ 62 ) or press the
PROGRESSIVE button on the remote control
Progresive Scan mode prompt screen appears.
Then press ENTER and progressive will be
output.
Note
What is "Progressive Scan"?
Progressive scan has twice as many scanning lines as the interlace output method.
Progressive scanning method provides better and clearer picture quality.
The Component Video jacks only output video from the DVD player. To view video from the VCR, you must have
the Video Out (yellow) or RF Out jack connected.
T o see the progressive video output,
- Consult your TV User’s Manual to find out if your TV supports Progressive Scan.
If Progressive Scan is supported, follow the TV User’s Manual regarding Progressive Scan
settings in the TV’s menu system.
- Depending on your TV, the connection method may differ from the illustration above.
White
Audio Cable
Component Cable
(not included)
Red
Red White
Green
Blue
Blue Red
Red
