AM loop antenna
Front speaker
(Left)
Front speaker
(Right)
FM antenna
Rear speaker
(Right)
Rear speaker
(Left) Center speaker
Cassette deck
Tuner
DVD/
VIDEO CD/
CD player
Getting Started
Hooking up the system

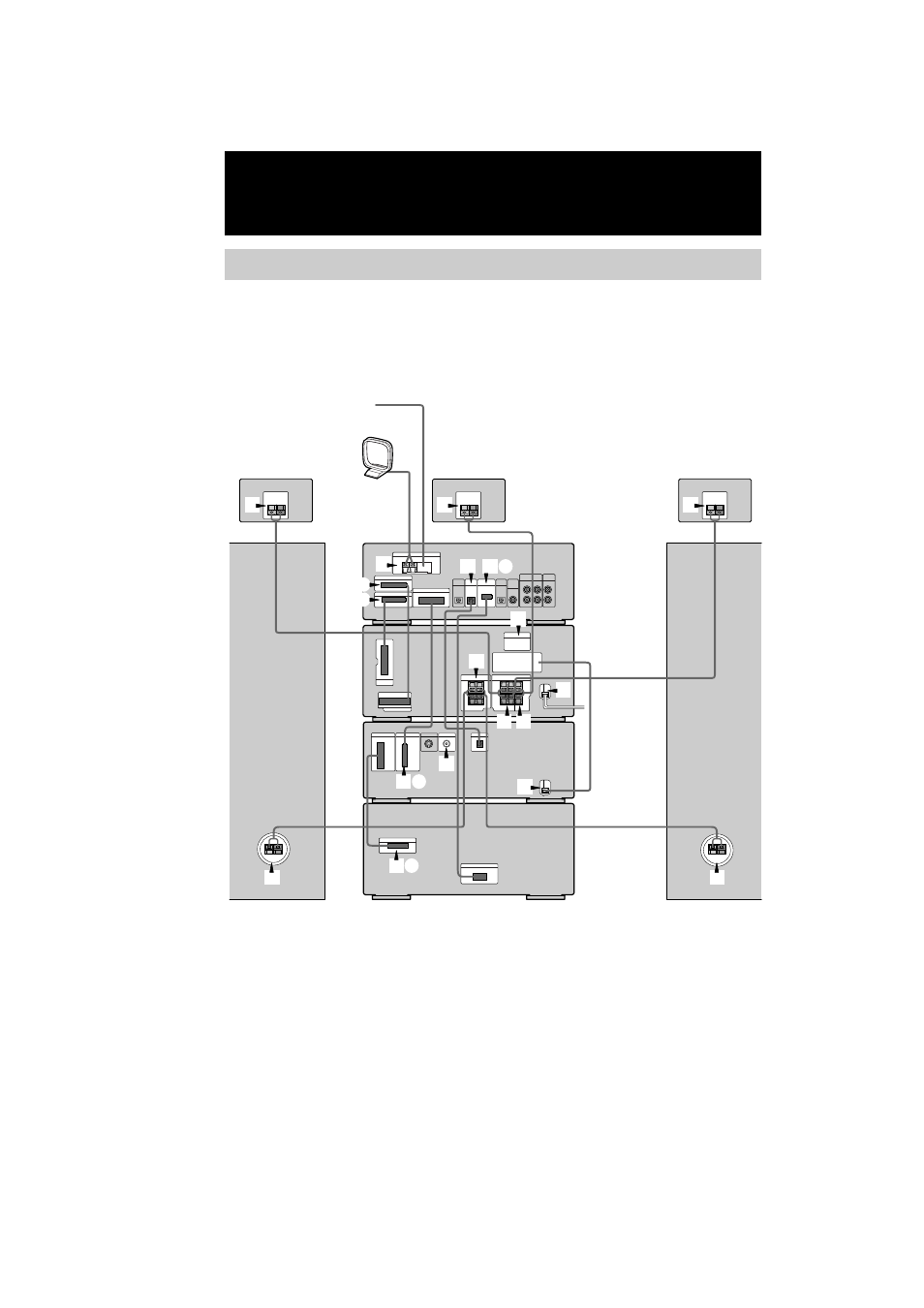

Do the following procedure 1 to qa to hook up your system using the supplied cords and
accessories.
Before connecting, place the system as described below.
A/V amplifier
